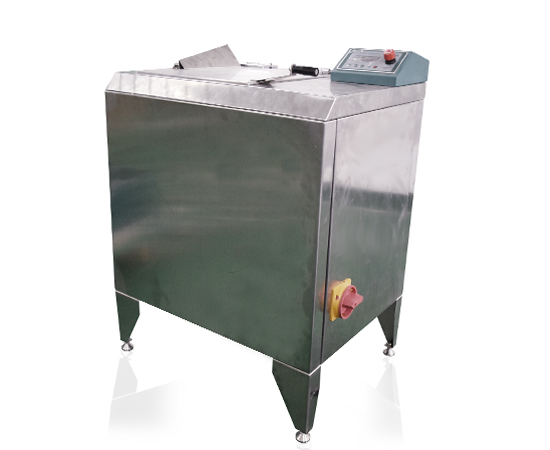

Washing Fastness Testing Machine G228B
G228B washing fastness tester is used for washing, dry-clean color fastness testing. Electric touch switch, LCD menu display, without mechanical contact, safe and reliable. Specimens shelves driven stable and reliable, change washing cup is convenient. With 500ml and 1200ml two kinds of washing cups， meet different testing standards. Heating tube has no noise, long life, temperature control is accurate.
Application
Various textiles color fastness to washing, dry-cleaning and poaching. Detergent efficiency and color fastness to washing, dry cleaning test. Maximum temperature reach 98 ℃ , can also assess the dyes washing color fastness.
Standard
· ISO 105 C01 C02 C03 C04 C05 C06 C08 D01 color fastness for textile
· BS 1006 C01 C02 C03 C04 C05 color fastness for fabrics and leather
· NEXT TM235 M&S C4 C5 C10A P3B
· GB/T 3921 5711 Textile color fastness to washing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | G228B |
| Test Positions | 24 + 12 vessels |
| Rotary Speed | 40 ± 2 rpm |
| Control Method | Digital programmable control |
| Cup Capacity | 550 ± 10 ml / 1200 ± 10 ml |
| Maximum Temperature | Up to 98°C |
| Temperature Accuracy | ±0.3°C |
| Temperature Control | Microprocessor control |
| Structure Material | 316 stainless steel |
| Chamber Function | Rotary chamber |
Accessories
| Item | Specification |
|---|---|
| Stainless Steel Cups (550 ml) | 24 pcs |
| Stainless Steel Cups (1200 ml) | 12 pcs |
| Steel Beads | 2000 pcs |
| Washing Seals (550 ml) | 20 pcs/pack |
| Washing Seals (1200 ml) | 20 pcs/pack |
| Dry-Clean Seals (550 ml) | 20 pcs/pack |
| Dry-Clean Seals (1200 ml) | 20 pcs/pack |
| Stainless Steel Dry-Clean Slices | 50 pcs |
| DW Multifiber Lining Fabric | 10 m/pack |
| AATCC Multifiber Lining Fabric | 1 m/pack |
| ECE Standard Detergent B (WOB) | 2 buckets |
| AATCC Standard Detergent (WOB) | 2 buckets |
Features
Auto alarm when testing over.
Structure is made of 316 stainless steel
With specimen cup auto switch function
Max temperature can reach 98℃
Temperature accuracy：±0.3℃
Temperature control: Microprocessor control, display temperature and time.
Overflow alarm function
Dry heating alarm function protect the instrument not damage
The measuring cover with double layer insulation function, reduce the heat loss to minimum. Reduce heat frequency, protect the heat tube working life.
Test panel uses pneumatic rod, save labor cost, and also protect the operator.
Hide pressure discharge function, when the chamber pressure is higher, cooled water drop discharge from snake type pipe
With forklift position, can move by forklift.
FAQ
1. How do I select between 550 ml and 1200 ml test cups?
The selection depends on the testing standard being followed. Some standards specify liquor ratio and specimen size, which determine the required cup capacity.
2. What factors influence the repeatability of washing fastness tests?
Key factors include temperature stability, rotation speed consistency, detergent concentration, and correct specimen preparation. Maintaining standard conditions is critical for reproducible results.
3. Can this machine perform both washing and dry-cleaning tests?
Yes. With appropriate solvents, seals, and accessories, the machine can simulate both washing and dry-cleaning conditions.
4. Why is temperature control important in fastness testing?
Color fastness is highly sensitive to temperature. Even small deviations can affect dye behavior, so precise control ensures compliance with testing standards.
5. Is the machine suitable for different fabric types?
Yes. It can test a wide range of textiles, including cotton, polyester, blends, and technical fabrics, as long as the appropriate standard method is selected.
