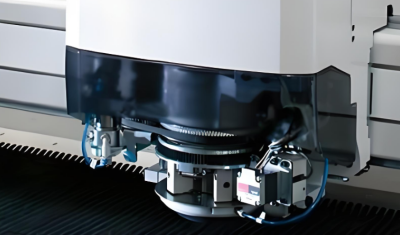

Computerized lain and Cutting Machine G-CL440
Brand:QINSUN
Model:G-CL440
Introduction
A computerized fabric spreading and cutting machine is an automated system that integrates automatic fabric spreading, intelligent nesting, and precision cutting. It uses a computer control system to efficiently unfold fabric and perform accurate cutting operations. The equipment is characterized by a high level of automation, high cutting precision, and significant savings in labor and material costs, making it widely used in modern garment and textile manufacturing industries.
Application
(1) Garment manufacturing industry: Used for large-scale garment cutting to improve production efficiency and part consistency.
(2) Home textile industry: Applied to cutting bedding, curtains, sofa fabrics, and other home textile materials.
(3) Automotive interior industry: Used for precise cutting of seat fabrics and interior textile materials.
(4) Bags and footwear industry: Used for automated cutting of leather and composite materials.
(5) Industrial material processing: Used for cutting non-woven fabrics, composite materials, and various industrial textiles.
Parameters
Pen Plotter:
Parameter | Specification |
Effective Area | 44 × 60 inch |
Resolution | 2540 dpi |
Paper Width (Max) | 1680 mm |
Plot Width (Max) | 1600 mm |
Plot Length | Unlimited |
Paper Handling | Roll & Feed / Take-up |
Drawing Paper | 50–110 g |
Paper Sizes | 36"–63" |
Max Roll Diameter | 6.5 inch |
Plotting Speed | 60 cm/sec |
Distance Accuracy | 0.15% or 0.1 mm |
Repeat Accuracy | ≤ ±0.1 mm |
Minimum Character Size | 5 × 5 mm |
Pen Pressure | 50–240 g |
Acceleration | 4 g |
Interface | Serial / Parallel (Auto Detect) |
CPU | 16-bit DSP |
Drive System | Stepping Subdivision Motor |
Power Supply | 110/250 V, 50–60 Hz, 120 W |
Inkjet Plotter:
Parameter | Specification |
Maximum Datum Width | 188 cm |
Effective Print Width | 183 cm |
Print Head Quantity | 2 |
Maximum Printing Speed | 60 m²/hour |
Resolution | 150 dpi |
Print Head Model | 51645A |
Ink System | Repeated Ink Filling |
Positioning Method | Light Curtains |
Control System | Servo + Step Motor |
Paper Type | Paper Roll |
Max Paper Roll Weight | 50 kg |
Paper Weight Range | 25–65 g |
Gross Weight | 95 kg |
Net Weight | 55 kg |
Output | Output Center |
Interface | USB 2.0 |
File Format | HPG / HPGL2 / DMPL / DXF |
Power Voltage | 220V / 110V |
Frequency | 50 / 60 Hz |
Working Temperature | 5°C – 50°C |
Storage Temperature | -15°C – 65°C |
Humidity | 0% – 95% |
Safety Standard | UL1950 |
Auto Cutting Plotter:
Parameter | Specification |
Valid Cutting Area | 1.5 × 1.0 m² |
Weight | 240 kg |
Dimensions | 2.00 × 1.52 × 0.85 m |
Tool Configuration | 1 Blade, 1 Pen |
Media Adhesion | Vacuum |
Max Speed | 1000 mm/s |
Cardboard Thickness | 1.5 mm |
Features
(1) Style Design:
Supply many designs and international standard PANTONE textile color card.
Supply open and powerful design style library, fabric library, part library, etc. to designer for reference.
(2) Pattern Design:
Supply many tools for different pattern design approaches, such as proportion pattern making, formula pattern making, prototype pattern making, intellective structure-line pattern making, convenient pattern making etc., to meet the different requirements of pattern designers of different ages and different habits in pattern making.
(3) Grading:
Supply the most complete and convenient grading approaches, such as Auto-grading, Spec-grading, Equal-grading, Unequal-grading, Copy-grading, Direct-grading after inputting etc.
Divide the graded pattern at will and there is no need to set again before grading, which improves efficiency.
(4) Process Design:
Make complicated manual making process easy, establish enterprise process form model according to text and chart link to strengthen production management.
(5) Abundant graph tools, for example:
Single stitch, double stitch, bridding, covering stitch, zip, button, etc., which makes graph easier, and modifies without any trace.
(6) Data Convert:
No matter where you are e, over a dial up connection with your partner, ECHO can get you to communicate with your partner freely, advance efficiency information transferring and reduce information transferring cost with long-distance data transition and transferring system.
(7) Garment CAM includes: Digitizer, Pen Plotter, Ink Plotter, Cutting Plotter,
(8) Digitizer: It's operated by 16-key orientation, which guarantees accurate position of pattern outline and inside curve.
Equipment Specifications
Parameter | Specification |
Cutting Media | Cardboard, Brown Paper, PE Board, Red Rigid Cardboard, Fiber Cardboard |
Max Cutting Pressure | 15 kgf |
CPU | 16-bit DSP |
Pen Type | Ink, Oil |
Accuracy | < ±0.1% |
Interface | Parallel, Serial |
Memory | 2 MB |
Language | HPGL |
Display Panel | LCD |
Motor | High Precision Step Motor |
Voltage | AC 220V ±20V, 50 Hz |
Fuse | 5 A |
Environment Temperature | -10°C to 0°C |
Humidity | 20% – 80% RH |
Recommended Cardboard | 200–350 g/m² |
Accessories | Desktop Computer and Printer |
Warranty
One year warranty
