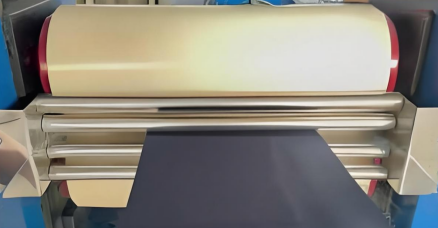

Mini Calendaring Machine G-MC309
Brand:QINSUN
Model:G-MC309
Introduction
A mini calendering machine uses heated, pressurized rollers to flatten, smooth, emboss, or laminate materials like plastics, rubber, paper, and fabrics. Typically used in R&D laboratories, prototyping, or small-scale batch production, they are compact, feature precise gap controls, and run at variable speeds.
Application
(1) For Cotton, cotton, silk, chemical fiber, hemp, wool and mixed textiles.
(2) The calendaring finishing materials; also be used for building materials, plastic packaging materials, paper rolling pressure Processing.
Configure a pair of upper and lower roller, Upper roller nylon roller gravity, the next roll.
Specification
Parameter | Specification |
Function | Chrome heated roller operates by heating, friction, and pressure to produce fabric with different utility sheens |
Application | Suitable for other thermal transfer printing processes |
Upper Roller | Nylon Roller, Ø150 × 400 mm |
Lower Roller | Chrome-Plated Roller, Ø150 × 400 mm |
Rotation Speed | 0–6 m/min |
Compression Method | Hydraulic Type |
Maximum Line Pressure | 5 T |
Heating Mode | Electrical Heating, 4.5 kW |
Maximum Temperature | 180°C |
Drive Motor Power | 3 kW |
Configuration
Safety devices Configuration manual and pedal emergency stop switch.
Roll form vertical up and down roller:
On the roll of nylon rod, the maximum temperature 180 degree.
The next roll of chrome-plated stick, made mirror grinding.
Warranty
One year warranty
