Padding Mangle (Lab Type) G-PM208
Brand:QINSUN
Model:G-PM208
Introduction
Padding Mangle (Lab Type) is a compact laboratory machine designed for textile wet processing applications such as dyeing, finishing, and chemical treatment tests. It ensures uniform padding of fabric under controlled pressure and speed, allowing accurate simulation of industrial processes. With precise control and easy operation, it is widely used in textile laboratories for sample development and quality testing.
Application
For resin processing and to provide total solutions on incommensurable colorant pick-up rate during the press & dyeing process held in lab and in factory.
Feature
l Floor model to save the trouble from preparing workstations.
l One pair of vertical type NBR roller, length:450mm, diameter: 125 mm.
l The padding roller pressure can be adjusted right and left independently to ensure precise measurement.
l 70 hardness degree and 6kg/cm2 of durability
l The speed of roller is 10 R.P.M.
l Safe emergency system: Emergency touch switch and knee hidden
Pressure board signals the motor to stop automatically to guarantee the safety of the users.
Specification
System | Vertical type |
Padding Roller | One pair of N.B.R rubber rollers (70° Shore hardness) |
Roller Size | Diameter: 125 mm; Length: 450 mm |

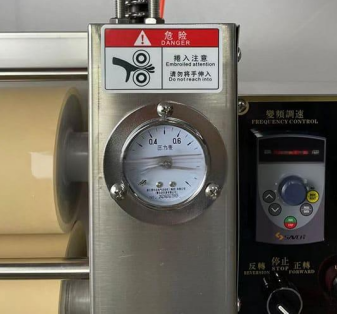

Pressure Gauges | 2 units, accuracy 0.1 kg/cm² |
Pressure Regulators | 2 units (WIKE, Germany) |
Safety Devices | Fabric feeder safety rod, knee pedal, emergency button |
Chemical Trough | One mobile chemical trough |
Warranty
One year warranty
