Power Loom (with Drop Box & Dobby) G-PL190
Brand:QINSUN
Model:G-PL190
Introduction
Power Loom with Drop Box & Dobby is a high-performance weaving machine designed for producing a wide range of fabric patterns with precision and efficiency. Equipped with drop box and dobby mechanisms, it enables flexible multi-color weft insertion and complex weave designs. The machine ensures stable operation, high productivity, and consistent fabric quality, making it ideal for modern textile weaving applications.
Specification
Machine Type | Semi-Automatic Drop Box Looms |
Reed Space | 52 |
Shuttle Box | 2 × 1 |
Shedding | 12 shaft double lift dobby (Horizontal) |
Reed | Fast Reed / Loose Reed (Optional) |
Let Off | Semi-positive type let-off (Either attached beam type or separate beam type) |
Take Up | Pickle’s seven wheel take-up mechanism |
Picking | Under pick / Over pick motion |
Speed | 130–150 R.P.M (Depends on yarn type and quality) |

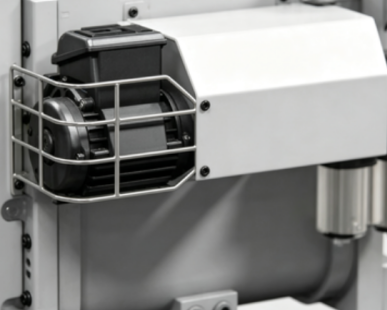

Drive | 1 HP loom motor |
Lubrication | Centralized lubrication system |
Warp Stop Motion | Electrical or Mechanical warp stop |
Weft Stop Motion | Weft fork system or electronic Infra-red filler system |
Accessories | Required accessories with standard accessories included |
Warranty
One year warranty
