BLOW ROOM LINE G-BR010A

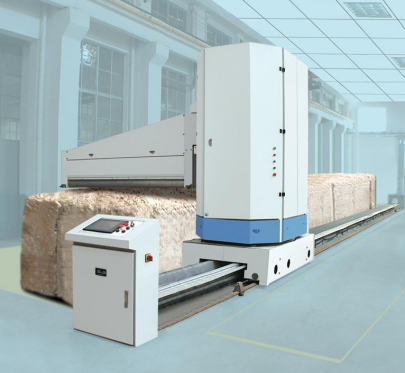

a. AUTOMATIC BALE PLUCKER
Introduction
Automatic Bale Plucker is an automated equipment used in the textile industry for automatically opening, grabbing, and conveying raw materials such as cotton and chemical fibers. It is mainly used in the pre-spinning process of spinning mills and is one of the important pieces of equipment in the combing and cleaning production line.
Parameters
Item | Specification |
Beater width | 1680- 2300 mm |
Production capacity: | 800-1500 kg/hour |
Loading capacity: | 2000 kg |
Beater speed: | 740-900 rpm |
Rail diameter: | 5132 mm |
Installed power: | 4.0-10.60 KW |
Warranty
One year warranty
Brand:QINSUN
Model:G-SR010B

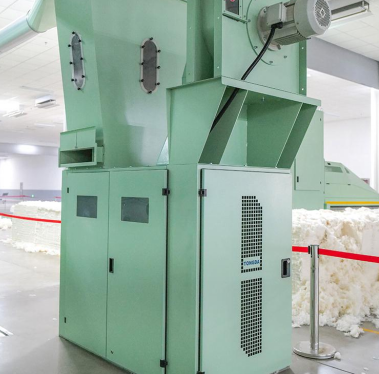

b. SINGLE ROLL CLEANER
Introduction
Single Roll Cleaner is a fiber cleaning device used in the pre-spinning process (Blow Room) of textiles. It is mainly used to remove impurities, dust, short fibers, cottonseed hulls, leaf debris and other impurities from raw materials such as cotton and chemical fibers, thereby improving fiber purity and providing stable raw materials for subsequent carding and spinning.
Parameters
Item | Specification |
Production capacity | ≤800 kg /h, width 1.60m |
Spiked roller size | 750 X 1594 mm |
Speed adjustment | Mechanical/electrical |
Frequency control | Normally 400-800rpm, generally 770 rpm |
Dust bar type | 68 pcs |
Setting | 5.5~11mm |
Setting Angle | 5˚ ~30˚ |
Main motor | 7.5 KW,1430 rpm |
Carriage motor | 0.37KW ,1430 rpm |
Warranty
One year warranty
Brand:QINSUN
Model:G-MM010C
c. MULTI MIXER (QUANTITY 06 Chamber/machine
Introduction
The MULTI MIXER (Quantity 06 Chamber / Machine) is an important piece of equipment in the Blow Room of a textile mill. It is mainly used to uniformly mix, store and continuously feed cotton, chemical fibers and blended fibers, improve the uniformity of fiber mixing and provide stable raw materials for subsequent carding and spinning.
Parameters
Item | Specification |
Number of Mixer | 06 Nos /Chamber: (6- mixer full capacity 300 kg) |
Machine Width | 1200 mm |
Production Capacity | 150-600 kg/h |
Installed Power supply | 13.35 KW |
Warranty
One year warranty
Brand:QINSUN
Model:G-CF010D

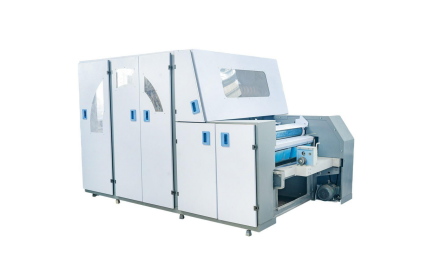

d. CHUTE FEEDER:
Introduction
The chute feeder (also known as a cotton feeder box or airflow feeding device) is a crucial connecting device between the blowroom and carding processes in the textile industry. Its main function is to uniformly and continuously convey and feed the cotton fibers, after opening, impurity removal, and blending, into the carding machine via airflow, ensuring stable production of the carding machine.
Parameters
Item | Specification |
Working width | 920 mm |
Output | 100 kg/h |
Feed Roller diameter | 191 mm |
Installed power | 3.37 KW |
Warranty
One year warranty
Brand:QINSUN
Model:G-PB010E

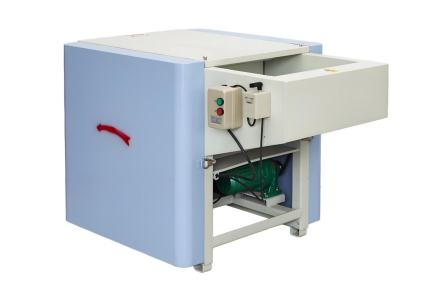

e. PORCUPINE BEATER
Introduction
The porcupine beater is a key opening equipment component in the blowroom process of the textile industry. It is mainly used to open, remove impurities, and separate fibers such as cotton and chemical fibers, gradually breaking down larger fiber clumps into smaller fiber bundles to provide uniform raw materials for subsequent blending, cleaning, and carding processes.
Parameters
Item | Specification |
Production Capacity: | 600 kg/h (Min) |
Working width | 1060 mm (Min) |
Feed Roller Speed | 18-85 r/min |
Beater Speed | 516/582/647 r/min |
Installed Power | 3.55 KW |
Warranty
One year warranty
