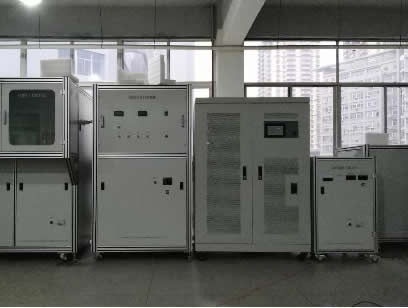

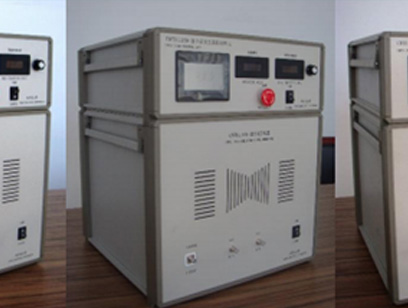

Special Combination Wave Test System
Combination Wave Test System is one of a special test machines, it can output 1.2/50μs open circuit voltage wave and 8/20μs short current wave. The test system can be used for carrying VPR Test, Surge Immunity Test and so on. The test system contends the requirements of IEC 61643. IEC 61000-4-5 and UL 1449 standards.
Application
Consumer Electronics & Home Appliances:
Used to test the immunity of power ports in devices such as TVs, refrigerators, and air conditioners against power grid surge disturbances.
LED Drivers & Lighting:
Widely applied in the LED lighting industry to prevent street lamps and indoor lighting fixtures from being damaged or burned out due to sudden voltage fluctuations.
Communication & Network Equipment:
Used to test devices such as gateways, routers, and telecom base station equipment, evaluating the protection performance of communication lines under lightning-induced overvoltage conditions.
Industrial Automation & Smart Meters:
Assesses the operational stability of core equipment such as PLC controllers, industrial computers, and smart meters in harsh electrical environments.
Standards
IEC61643.IEC61000-4-5.UL1449.IEC60060
Technical Parameters
| Combination Wave
| Short Circuit Current | Open Circuit Voltage | Virtual Impedance | ||||
| Front Time | Duration Time | Peak | Front Time | Duration Time | Peak | ||
| 6KV/600A | 10μs (-3μs, +0) | 250μs (-0, +50μs) | 600A 0%, 16% | 10μs (-6μs, +0) | 250μs (-0, +150μs) | 6kV 0%, 16% | ±1.6Ω |
| 6KV/150A | 10μs (-2.5μs, +0) | 250μs (-0, +108μs) | 150A 0%, 15% | 10μs (-2.5μs, +0) | 250μs (-0, +108μs) | 6kV 0%, 15% | ±6Ω |
| 6KV/150A | 5μs ±1.5μs | 320μs ±64μs | 150A ±10% | 5μs ±1.5μs | 320μs ±164μs | 6kV ±10% | ±6Ω |
| 6KV/1.2KA | 2μs (-1, +0) | 10μs (-0, +7) | 1.2kA 0%, +20% | 2μs (-1, +0) | 10μs (-0, +7) | 6kV 0%, +20% | ±1Ω |
| 6KV/3KA | 8μs ±1.6μs | 20μs ±4μs | 3kA ±10% | 1.2μs ±3.6μs | 50μs ±10μs | 6kV ±10% | ±0.5Ω |
| Operating duty test | AC Source: 0-1000V
/5-100A. Phase tracking and control accuracy: 0-360° ±5° DC Source: 0-1500V /5-100A | ||||||
Features
Built-in / External CDN:
Integrated or compatible coupling/decoupling networks (CDN) enable safe injection of surge pulses into single-phase or three-phase power lines as well as data and communication lines, while preventing surge feedback from damaging the power supply network.
Intelligent Control:
Equipped with a touchscreen interface, the system allows automated programming of test parameters (such as voltage, phase, polarity, and repetition rate). It can also automatically generate test reports upon completion.
Comprehensive Safety Mechanisms:
Features overload protection, emergency stop interfaces, automatic discharge functions, and safety interlock systems to ensure operator safety during high-voltage testing.
Maintenance Information
Cooling and Ventilation:
Regularly clean the fans and ventilation filter screens to prevent dust blockage, which may cause internal overheating of the equipment.
High-Voltage Cables:
Inspect high-voltage test cables for aging or damage to the insulation layer. This helps prevent high-voltage arcing and leakage current.
Fuse Replacement:
The power input terminal on the instrument panel is typically equipped with a fuse. If the device shows no response, disconnect the power supply and check whether the fuse is blown. When replacing, always use the manufacturer-specified type and rating.
Internal Maintenance Warning:
Since the test system contains high-voltage energy storage capacitors, do not open the enclosure yourself. Any internal hardware repair or safe discharge operations must be handled by qualified professional technicians.
FAQ
1.What is this product?
You are using a Special Combination Wave Test System, a high-performance surge testing device designed to generate combined impulse waveforms (such as voltage and current combination waves) to simulate complex lightning and switching surge conditions for electrical equipment testing.
2.What is this product used for?
You can use it to evaluate the surge immunity and insulation strength of surge protective devices (SPDs), electronic components, power supplies, and industrial equipment. It is used to verify performance under combined transient overvoltage and overcurrent stress conditions.
3.Why is this product important?
It allows you to reproduce real-world complex surge events, including lightning-induced and switching transients, in a controlled laboratory environment. This ensures product safety, improves reliability, and supports compliance with international EMC and surge immunity standards.
4.What industries is this product suitable for?
You can use it in consumer electronics, electrical appliances, power distribution systems, renewable energy, telecommunications, automotive electronics, rail transit systems, and EMC testing laboratories.
5.What types of this product are available?
You can choose from single-channel or multi-channel combination wave systems, manual or fully automated models, and advanced versions with programmable waveform parameters, integrated coupling/decoupling networks (CDN), and computer-based control and data acquisition systems for comprehensive surge testing.
