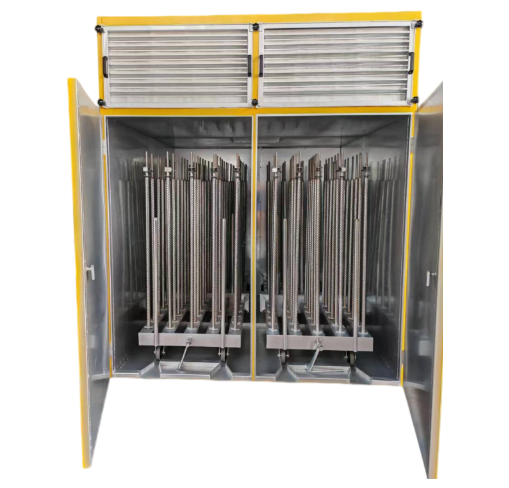

Cone Yarn Drying Machine
The Cone Yarn Drying Machine is designed for efficient and uniform drying of cone yarn packages in textile production. It adopts a high-capacity trolley structure and forced hot air circulation system to ensure consistent drying performance for different yarn materials. The machine is equipped with energy-saving radiators, high-power low-noise fans, and an intelligent control system, enabling stable operation, reduced energy consumption, and improved production efficiency.
Application
This equipment is widely used in textile processing:
(1) Cotton yarn — high-efficiency drying
(2) Polyester yarn — rapid moisture removal
(3) Flax yarn — uniform drying treatment
(4) Textile mills — post-dyeing drying process
(5) Yarn manufacturers — batch drying operations
(6) Industrial textile production — large-scale drying
Standards
Complies with relevant industrial drying equipment and safety standards.
Technical Parameters
| Item | Specification |
|---|---|
| Model | 1040 |
| Capacity | 1040 cones (4 trolleys) |
| Dimensions | 3600 × 2200 × 2700 mm |
| Material | Iron frame with painted surface; galvanized inner/outer panels; rock wool insulation |
| Door Type | Manual double-door opening |
| Fan Power | 22 kW × 2 (44 kW total) |
| Dryer Trolley | 4 units, 201 stainless steel |
| Radiator | Energy-saving type (2 pcs) |
| Control System | LCD display (Huagao), inverter (VEICHI) |
| Valve | Pneumatic stainless steel Y-valve |
| Drying Temperature | 115°C |
| Drying Time | Cotton: 3.5 h; Polyester: 1.5 h; Flax: 2.5 h |
Features
(1) Large capacity design supporting up to 1040 cones per batch
(2) Multi-trolley system for efficient loading and unloading
(3) High-power low-noise fans for strong air circulation
(4) Energy-saving radiators for improved thermal efficiency
(5) Uniform drying performance for different yarn materials
(6) Durable structure with galvanized panels and insulation
(7) Intelligent control system with LCD interface
(8) Frequency inverter control for stable operation
(9) Pneumatic valve system for precise airflow control
(10) Optimized airflow design for consistent temperature distribution
Accessories
(1) Spare blower motor — 22 kW (1 set)
(2) Dryer trolley — 4 pcs
(3) Standard machine components and control system
Maintenance
(1) Regularly inspect fans and motors
(2) Clean internal chamber and airflow passages
(3) Check insulation and door sealing performance
(4) Maintain pneumatic valves and control system
(5) Inspect electrical components and inverter
(6) Ensure proper ventilation and operating conditions
FAQ
1. What is this product?
It is an industrial drying machine designed for cone yarn packages.
2. What is this product used for?
It is used for drying cotton, polyester, flax, and other yarn materials after processing.
3. What is the working principle of this product?
It uses forced hot air circulation and controlled temperature to remove moisture from yarn evenly.
4. Why is this product important?
It ensures consistent drying quality, reduces processing time, and improves production efficiency.
5. What industries is this product suitable for?
It is suitable for textile mills, yarn manufacturers, and industrial fabric production facilities.
