Efficient and Energy-saving Turret Punch Press

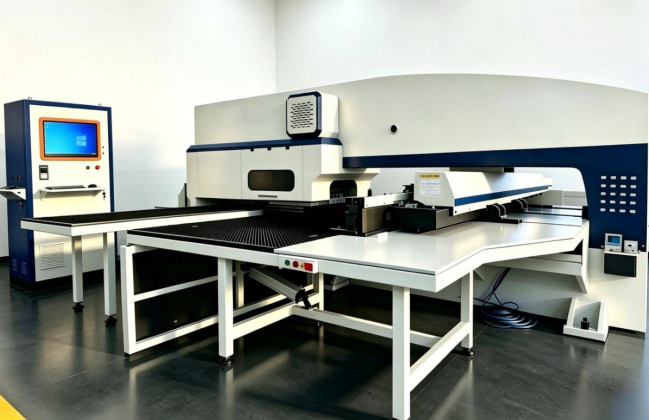

The Efficient and Energy-saving Turret Punch Press is a CNC-controlled sheet metal processing machine designed for high-speed punching, forming, and fabrication. It adopts an “O”-type closed frame structure with tempering treatment, ensuring high rigidity, stability, and precision during operation.
The machine integrates advanced servo control, multi-axis coordination, and intelligent CNC programming, enabling efficient and precise processing of various sheet metal components.
Application
This equipment is widely used in sheet metal processing industries:
(1) Electrical cabinets — panel punching and forming
(2) Automotive parts — sheet metal fabrication
(3) Elevator manufacturing — structural component processing
(4) HVAC industry — duct and panel processing
(5) Machinery manufacturing — precision metal parts
(6) Metal fabrication workshops — mass production
Standards
Complies with relevant CNC machine tool and industrial manufacturing standards.
Technical Parameters
| Item | Specification |
|---|---|
| Punching Force | 300 kN (30 T) |
| Frame Structure | “O” type closed (tempered) |
| Max Sheet Size | X: 5000 mm (secondary positioning), Y: 1500 mm |
| Max Sheet Thickness | 6.35 mm |
| Max Punch Diameter | Φ88.9 mm (customizable) |
| Punching Frequency | 1800 hpm |
| Max Frequency (1 mm pitch) | 800 hpm |
| Max Frequency (25.4 mm pitch) | 400 hpm |
| Control Axes | 5 axes (X, Y, R, T, C) |
| Turret Stations | 32 stations (16A, 11B, 3C, 2D) |
| Turret Speed | 30 rpm |
| Max Sheet Speed | 80 m/min |
| Max Feeding Speed | X/Y: 80 m/min, XY linkage: 110 m/min |
| Worktable | Brush / Steel ball composite |
| Precision | ±0.10 mm |
| Max Load | 150 kg |
| Air Pressure | 0.6 MPa |
| Voltage | 380 V ±5% |
| Power | — |
| Machine Weight | 13.5 T |
| Machine Size | 5200 × 5200 × 2280 mm |
Features
(1) High-rigidity “O” frame structure with thermal treatment
(2) High-speed punching up to 1800 hpm for mass production
(3) Multi-axis CNC control for complex sheet processing
(4) International standard turret tooling system
(5) High precision positioning with ±0.10 mm accuracy
(6) Brush/steel ball worktable to reduce scratching
(7) Advanced safety detection systems (collision, clamp protection)
(8) Energy-saving servo drive system
(9) Flexible configuration with optional auto loading/unloading
(10) Self-tapping function (optional)
Main Components
(1) CNC control system — industrial control system for turret punch press
(2) Servo motors — Panasonic, high precision and stability
(3) Linear guides — TBI, high load capacity and accuracy
(4) Ball screws — TBI
(5) Bearings — NSK (Japan), long service life
(6) Electrical components — Schneider
(7) Pneumatic components — AirTAC
(8) Transmission chain — TSUBAKI (Japan)
Maintenance
(1) Regularly lubricate guide rails and transmission components
(2) Check turret and tooling condition
(3) Inspect electrical and pneumatic systems
(4) Clean worktable and remove debris
(5) Calibrate positioning accuracy periodically
(6) Ensure proper air pressure and power supply
FAQ
1. What is this product?
It is a CNC turret punch press used for sheet metal punching and forming.
2. What is this product used for?
It is used for high-speed processing of metal sheets in manufacturing industries.
3. What is the working principle of this product?
It uses CNC-controlled servo systems to position sheets and perform punching operations with turret-mounted tools.
4. Why is this product important?
It improves production efficiency, accuracy, and automation in sheet metal fabrication.
5. What industries is this product suitable for?
It is suitable for electrical, automotive, HVAC, machinery, and metal fabrication industries.
