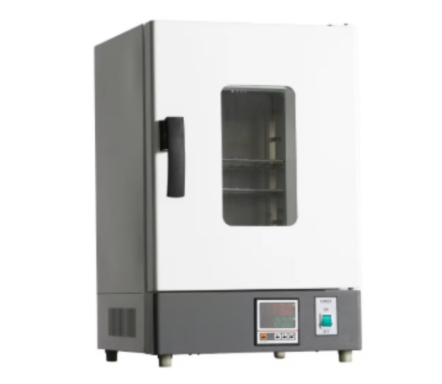

Electric Heating Constant Temperature Drying Oven G-9070A
This Electric Heating Constant Temperature Drying Oven is widely used in industrial and mining enterprises, laboratories, and scientific research institutions for drying, baking, wax melting, sterilization, and other thermal treatment applications.
Application
This equipment is applied in multiple fields:
(1) Laboratories — sample drying and heat treatment
(2) Industrial production — material baking and curing
(3) Research institutions — thermal experiments
(4) Pharmaceutical industry — sterilization and drying
(5) Chemical industry — material processing
(6) Electronics — component drying and aging tests
Technical Specifications
Item | G-9030A | G-9070A | G-9140A | G-9240A |
Heating Method | Bottom heating, stainless steel electric heating tube | |||
Power Supply | 220V 50Hz | |||
Air Circulation | Bottom fan, forced convection | |||
Temperature Range | RT +10°C to 200°C / RT +10°C to 250°C (optional upon order) | |||
Temperature Controller | PID microcomputer control, LCD display, timing and over-temperature alarm | |||
Temperature Resolution / Fluctuation | 0.1°C / ±1.0°C | |||
Temperature Uniformity | ±2.5% (measured at 100°C) | |||
Ambient Temperature | +5°C to 40°C | |||
Input Power | 800W | 1400W | 1900W | 2100W |
Capacity | 31.5 L | 72 L | 136 L | 225 L |
Internal Chamber Size (cm) | 30 × 30 × 35 | 40 × 40 × 45 | 45 × 55 × 55 | 50 × 60 × 75 |
External Dimension (cm) | 45 × 47 × 70 | 54.5 × 62 × 80 | 58.5 × 76 × 90 | 63.5 × 81 × 110 |
Loading Shelves | 2/3 | 2/4 | 2/5 | 2/5 |
Timer Range | 1–9999 min | 1–9999 min | 1–9999 min | 1–9999 min |
Features
Equipped with a PID intelligent temperature controller with LCD display, multi-group data shown on one screen for intuitive operation. It features over-temperature protection and timing functions with accurate and reliable temperature control.
The inner chamber is made of mirror-finish stainless steel, while the outer shell is made of high-quality steel plate with electrostatic spray coating. The control panel is designed in a black-gray finish, providing a modern and aesthetic appearance.
It is equipped with a 3C-certified high-temperature resistant tempered glass observation window for easy monitoring of samples inside the chamber.
The pull-out shelf design allows easy loading and unloading of samples and flexible positioning.
A rotary self-locking door handle ensures better sealing performance with the door gasket.
A rational air duct design ensures forced hot air circulation, achieving uniform temperature distribution inside the chamber.
A composite silicone sealing strip enables long-term high-temperature operation with extended service life.
High-quality thermal insulation materials effectively reduce heat loss and improve thermal efficiency.
Conclusion
The G-9070A Drying Oven offers reliable temperature control, uniform heating, and durable construction. It is an essential piece of equipment for laboratories and industrial applications requiring precise thermal processing.
FAQ
1. What is this product?
It is a constant temperature drying oven used for thermal processing applications.
2. What is this product used for?
It is used for drying, baking, sterilization, and other heat treatment processes.
3. What is the working principle of this product?
It uses electric heating and forced air circulation to maintain a stable and uniform temperature inside the chamber.
4. Why is this product important?
It ensures consistent and reliable thermal processing for various materials and samples.
5. What industries is this product suitable for?
It is suitable for laboratories, pharmaceuticals, chemicals, electronics, research institutions, and industrial production.
