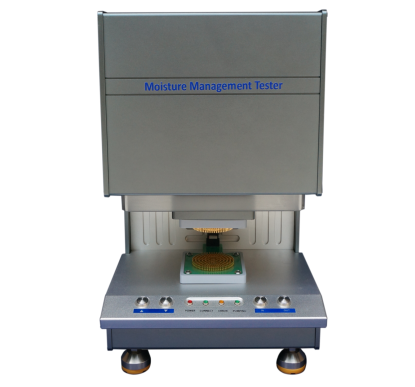

Moisture Management Tester G290
Functional fabrics have gained wide recognition in the consumer market. For quick sweat absorption and fast-drying textiles, the MMTest liquid moisture management tester evaluates and classifies the liquid moisture transfer properties of fabrics through simple measurements, meeting industry demand for performance assessment.
Applications
(1) Quality control for textile and garment manufacturers
(2) Research and development of functional fabrics and apparel
(3) Grading of fabrics based on liquid moisture transport properties
(4) MMTest can classify fabrics into seven types:
l Waterproof fabrics;
l Water-repellent fabrics;
l Slow absorbing and slow drying fabrics;
l Fast absorbing and slow drying fabrics;
l Fast absorbing and fast drying fabrics;
l Highly permeable fabrics;
l Liquid moisture management fabrics;
Standards
AATCC 195 and GB/T 21655.2 standards are both developed based on the MMTest liquid moisture management tester.
AATCC 195-2017
GB/T 21655.2-2019
Product Specifications
Item | Specification |
Dimensions (L × W × H) | 280 mm × 420 mm × 420 mm |
Weight | 26 kg |
Data Interface | Wireless WiFi |
Power Supply | AC 110V–220V, 50/60 Hz, 1A |
Operating Temperature | 18°C – 29°C |
Operating Humidity | 50% – 80% (non-condensing) |
Pumping Time | 20 seconds |
Liquid Volume | 0.22 g (adjustable) |
Test Solution Conductivity | 16 mS ± 0.2 mS |
Standard Configuration
(1) MMTest Moisture Management Tester Main Unit
(2) Conductivity Meter
(3) Spare Silicone Tubing Set
(4) Unlimited Installation Testing Software
Advantages
The MMTest features a durable aluminum alloy anodized housing for long service life. Its open design allows easy placement of specimens without size restrictions, supporting samples from 8 cm × 8 cm up to large formats of 100 cm × 20 cm.
The sensor adopts a magnetic detachable structure for easy cleaning and maintenance.
The liquid pumping system uses a speed-adjustable stepper motor, allowing precise control of liquid volume to meet standard requirements. A built-in “suction button” on the control panel enables one-click reverse suction of liquid back into the reservoir, preventing salt crystallization in the tubing.
The instrument also features a self-check function that automatically detects whether liquid has dripped onto the test plate. If the yellow error indicator flashes, it signals that the tested fabric needs to be removed or the test plate requires cleaning.
Testing Procedure
The specimen is placed on the testing plate with the skin-contact side facing upward. A defined amount of saline solution is dropped onto the center of the fabric surface to simulate human perspiration.
Through testing, the following parameters are obtained:
(1) Wetting time on the skin-contact side
(2) Absorption rate
(3) Wetting radius
(4) Spreading speed
(5) Cumulative one-way transport capability
(6) Overall liquid moisture management capability
FAQ
1. What is this product?
It is a textile testing instrument used to evaluate liquid moisture transport performance in fabrics.
2. What is this product used for?
It is used to analyze sweat absorption, spreading, and drying behavior of functional fabrics.
3. What is the working principle of this product?
It simulates sweat application on fabric and measures how liquid spreads and transfers through textile layers.
4. Why is this product important?
It helps classify fabric performance for comfort, breathability, and quick-dry functionality in apparel products.
5. What industries is this product suitable for?
It is suitable for textile manufacturing, sportswear development, functional fabric R&D, and quality inspection laboratories.
