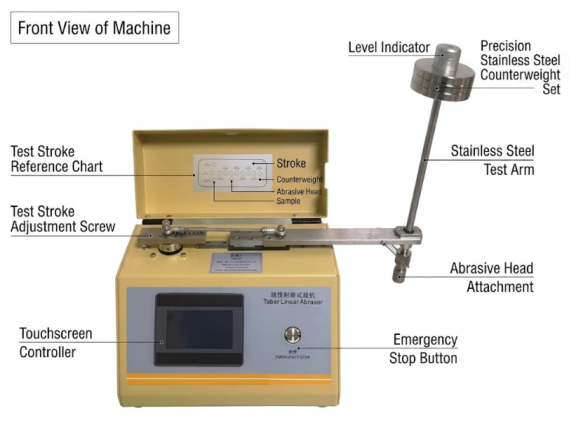

Linear Abrasion Testing Machine(Touch Screen) G-5750C
The G-5750C Linear Abrasion Testing Machine is a precision instrument designed to evaluate abrasion resistance, scratch resistance, and color transfer performance of material surfaces. It supports both dry and wet abrasion testing, enabling comprehensive assessment of coating durability and surface performance. With a programmable touch screen interface and adjustable test parameters, the system ensures accurate, repeatable, and standardized testing for a wide range of materials and product geometries.
Application
(1) Plastics and Coatings
Used for evaluating abrasion resistance of plastic housings, painted surfaces, and coatings.
(2) Automotive Industry
Applicable for testing automotive interior and exterior parts, including coated and polished components.
(3) Rubber, Leather, and Textiles
Evaluates wear resistance and rubbing fastness of flexible materials.
(4) Electronics and IT Products
Ideal for testing abrasion resistance of products such as computer mouse housings and consumer electronics surfaces.
(5) Surface Treatment and Finishing
Suitable for electroplating, printed graphics, lacquer coatings, and decorative finishes.
Standards
(1) ASTM D3884 – Abrasion Resistance of Textile Fabrics
(2) ASTM D1175 – Abrasion Resistance of Coatings
(3) ASTM D1044 – Abrasion Resistance of Transparent Plastics
(4) ASTM D4060 – Abrasion Resistance by Taber Abraser
(5) TAPPI T476 – Abrasion Resistance of Paper
(6) ISO 9352 – Abrasion Resistance Testing
(7) ISO 5470-1 – Rubber or Plastics-Coated Fabrics
(8) JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964
(9) DIN 52347, DIN 53109, DIN 53754, DIN 53799
Parameters
| Item | Specification |
|---|---|
| Moving Distance | 11 optional distances (customizable) |
| Speed | 1 – 75 cycles/min (adjustable) |
| Standard Speeds | 40, 50, 60 cycles/min |
| Maximum Cycles | Up to 999,999 |
| Load Range | 350 g – 1850 g (standard) |
| Optional Weights | 50 g, 75 g, 100 g, 150 g, 500 g, 1000 g |
| Test Rod Weight | 350 g |
| Motion Type | Linear reciprocating |
| Control Interface | Touch screen |
| Dimensions | 230 × 335 × 260 mm |
| Weight | 9 kg |
| Power Supply | 220 V |
Features
(1) Touch screen interface for easy parameter setting and operation
(2) Supports dry and wet abrasion testing modes
(3) Adjustable speed, stroke, load, and cycle count
(4) High repeatability and test accuracy
(5) Wide range of abrasion media and accessories available
(6) Suitable for flat, curved, and irregular surfaces
(7) Durable abrasive head ensuring consistent test performance
(8) Complies with CE and multiple international standards
(9) Compact design suitable for laboratory and production use
(10) Flexible configuration for different testing requirements
Accessories
(1) G-5750C main unit
(2) One level test rod
(3) Rubber friction head
(4) Alcohol test head
(5) Three 250 g weights
(6) Two 75215 rubber strips
(7) Hexagonal wrench set
(8) Cleaning brush
(9) Power cord
Maintenance Information
(1) Replace abrasive heads periodically to maintain accuracy
(2) Clean the test platform and accessories after use
(3) Check moving components and lubrication condition
(4) Verify load weights and calibration
(5) Ensure stable power supply and proper storage
FAQ
1. What is this product?
It is a linear abrasion tester used to evaluate wear, scratch resistance, and rubbing performance of material surfaces.
2. What is this product used for?
It is used for testing abrasion resistance and durability of coatings, plastics, textiles, and finished products.
3. What is the working principle of this product?
A friction head moves back and forth under a set load to simulate wear and evaluate surface damage.
4. Why is this product important?
It helps ensure product durability and quality by simulating real-world wear conditions.
5. What industries is this product suitable for?
It is suitable for plastics, automotive, electronics, textiles, coatings, and materials testing industries.
