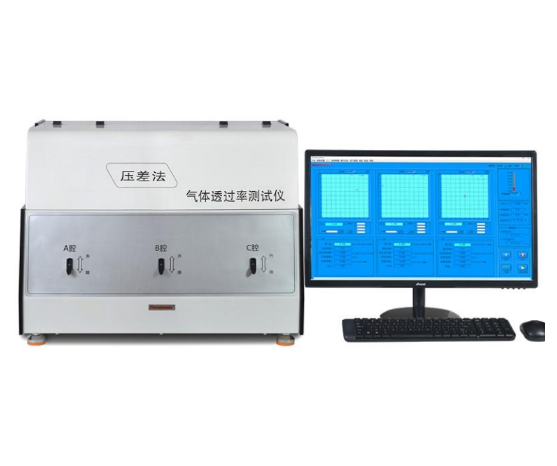

Gas Permeability Tester (Differential Pressure Method)
The differential pressure gas permeability tester is a professional instrument for film sample testing. Based on the differential pressure method, it is suitable for determining gas transmission rate, solubility coefficient, diffusion coefficient, and permeability coefficient of plastic films, composite films, high-barrier materials, sheets, and metal foils under various temperatures. The instrument can be used to test gas permeability performance of membrane materials, including hydrogen permeability testing. Suitable for testing oxygen (O₂), carbon dioxide (CO₂), nitrogen (N₂), and air permeability of plastic films, composite films, high-barrier materials, sheets, metal foils, rubber, and other materials.
Applications
Category | Application | Description |
Basic Application
| Films | Plastic films, composite films, paper-plastic films, geomembranes, co-extruded films, metallized films, aluminum foil, foil laminates, waterproof breathable films, etc. |
Sheets | Engineering plastics and rubber sheets such as PP, PVC, PVDC, etc. | |
Petrochemical | Gas permeability testing for pipeline materials, such as CO₂ testing of MDPE plastics | |
Aerospace materials | Gas permeability testing of aerospace materials such as airships and gasbags, helium detection | |
Biodegradable films | Gas permeability testing of biodegradable materials such as starch-based films | |
Extended Application
| Paper materials | Paper-plastic composites, cigarette packaging foil paper, Tetra Pak materials, instant noodle packaging, paper cups, etc. |
Tubes, bottles, bags | Cosmetic tubes, aluminum-plastic tubes, flexible bottles, and related packaging materials | |
Coatings | Gas permeability testing of coated and printed films | |
Vacuum packaging | Packaging materials for electronic products and other anti-oxidation applications such as sensors |
Standards
YBB 00082003, GB/T 1038, ASTM D1434, ISO 2556, ISO 15105-1, JIS K7126-A
Test Principle
The instrument adopts the differential pressure method. The preconditioned specimen is placed and clamped between the upper and lower test chambers. The low-pressure chamber (lower chamber) is first evacuated, followed by evacuation of the entire system. After reaching the required vacuum level, the lower chamber is isolated, and test gas is introduced into the high-pressure chamber (upper chamber), maintaining a constant pressure difference across the specimen. Gas permeates from the high-pressure side to the low-pressure side under the pressure gradient. By monitoring and analyzing the pressure change in the low-pressure side, the gas barrier properties of the specimen are obtained. This method fully complies with GB 1038 and ASTM D1434 standards.
Technical Parameters
Item | Parameter |
Measurement range (film) | 0.01–50000 cc/m²·24h·0.1MPa |
Number of specimens | 3 |
Number of main sensors | 3 |
Test mode | Independent single chamber |
Vacuum resolution | 0.1 Pa |
Ultimate vacuum | <10 Pa |
Temperature range | 5°C–65°C |
Temperature accuracy | ±0.1°C |
Test pressure | Upper chamber: -0.1 MPa to +0.15 MPa (standard) |
Lower chamber: 0–1333.33 Pa | |
Gas supply pressure | 0.4–0.6 MPa |
Test gases | O₂, N₂, CO₂ or other gases |
Carrier gas interface | Ф6 |
Vacuum pipe diameter | 1/4" |
Calibration method | Standard film calibration, external vacuum sensor calibration |
Sample thickness | ≤3 mm |
Sample size | Φ97 mm |
Permeation area | 38.48 cm² |
Dimensions | 760 × 575 × 450 mm |
Weight | 88 kg |
Power supply | AC 100–240 V, 50/60 Hz |
Features
Standard film calibration and sensor external calibration functions.
Real-time monitoring and full data curve storage with replay capability.
Open database system for data analysis.
Simultaneous measurement of permeability, solubility, and diffusion coefficients.
Three independent chambers for simultaneous testing of identical or different samples.
Wide-range, high-precision temperature and humidity control.
Dual judgment modes (proportional and fuzzy logic).
Expandable measurement range for high permeability materials.
Curve fitting at any temperature for extreme condition analysis.
Supports toxic, flammable, and explosive gas testing (custom modification required).
Computer-controlled automatic testing process.
Standard film calibration for accuracy and consistency.
RS232 data interface for data transfer.
Configuration
Standard configuration: Main unit, temperature controller, computer, professional software, sample cutter, vacuum grease, rapid quantitative filter paper, vacuum pump.
Optional accessories: cutting blades, vacuum pump oil, humidity generator.
Note: Gas inlet uses Ф6 mm polyurethane tubing. Gas source and distilled water are user-supplied. Product appearance may vary for customized versions.
