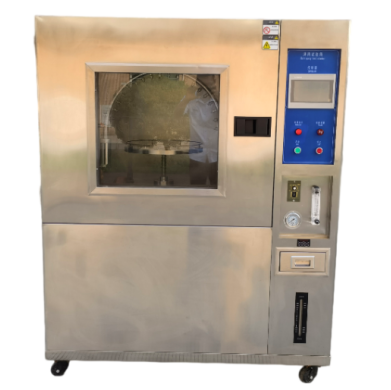

IPX3-IPX4 Test Equipment G-IPXB600
This IPX3-IPX4 Test Equipment is suitable for rain, dust, and sand-water immersion tests on various automotive parts and industrial electronic products, including automotive components such as headlights, door locks, electrical systems, instruments, dust covers, and household electronic appliances, to evaluate the full-seal stability of these systems.
The rain test chamber is designed to simulate artificial rainfall. It is well known that all components and equipment exposed to atmospheric pressure, whether in operation or storage, are affected to varying degrees by water (including impurities), with rainfall being the most common. Conducting rain tests helps assess and prevent performance changes caused by rainwater penetration or exposure.
Application
This tester is suitable for:
(1) Automotive external devices including lighting, door locks, and electrical systems.
(2) Industrial electronic products requiring protection against rainwater exposure.
(3) Household electronics for water ingress and sealing reliability verification.
(4) R&D, quality control, and production testing for IPX3–IPX4 water protection compliance.
standards:
GB/T 10485 – Basic environmental tests for automotive and trailer external devices, lighting, and signaling devices, as well as industrial electronic products
JIS, MIL and related testing standards
ISO 20653:2006, GB 4208-93, GB 2423.37-89 La, DIN 40050.5 K, and other national standards corresponding to rain testing.
Specifications and Dimensions of IPX3–IPX4 Oscillating Tube Test Apparatus
Item | Specification |
Inner Chamber Dimensions | 600 × 600 × 600 mm (W × D × H) |
Outer Chamber Dimensions (approx.) | 1200 × 900 × 1700 mm (W × D × H) |
Water Spray Ring Diameter | 350 mm |
Turntable Diameter | 200 mm |
Inner Chamber Material | 304 Stainless Steel |
Outer Chamber Material | Stainless Steel |
Observation Window | Waterproof tempered glass (~400 × 600 mm, may vary slightly) |
Turntable Load Capacity | 20 kg (customizable), Sample holder height 0–300 mm (customizable) |
Control Method | Color touch screen |
Spray Nozzle Diameter | 0.4 mm |
Spray Nozzle Spacing | 50 mm |
Water Pressure (MPa) | Adjusted according to specified flow rate |
Oscillating Tube Diameter | 16 mm |
Test Duration | 1–999 min, adjustable |
Oscillating Tube Angle | IPX3: ±45°/60°/90° along vertical line (or custom) |
Oscillating Tube Speed | IPX3: 15 cycles/min; IPX4: 10 cycles/min |
Turntable Speed | 1–5 rpm |
Nozzle Flow Rate | 0–0.07 L/min ±5% |
Power Supply | Single-phase AC 220 V, 50/60 Hz, 1.5 kW |
Features
(1) Simulated Rain Testing – Accurately reproduces artificial rainfall to evaluate water ingress and sealing reliability.
(2) Oscillating Tube Design – Adjustable angle and speed for IPX3 and IPX4 compliance.
(3) Turntable Rotation – Uniform exposure for multiple samples with load capacity up to 20 kg.
(4) Precise Spray Control – Adjustable flow rate, nozzle spacing, and water pressure for consistent testing.
(5) Robust Construction – Stainless steel inner and outer chambers with waterproof tempered glass for durability.
(6) User-Friendly Control – Color touchscreen interface for easy parameter setting and monitoring.
(7) Customizable Configuration – Tube angle, speed, and sample holder height can be modified to meet special testing requirements.
FAQ
(1) What is this product?
It is a test chamber designed to evaluate water ingress and sealing stability under simulated rainfall conditions.
(2) What is this product used for?
You can assess the water resistance of automotive components and electronic devices to ensure compliance with IPX3–IPX4 standards.
(3) What is the working principle of this product?
The chamber sprays water from nozzles while the oscillating tube and turntable rotate the sample, simulating rainfall and ensuring uniform exposure.
(4) Why is this product important?
It ensures automotive and electronic products maintain functionality and safety under wet environmental conditions.
(5) Which industries is this product suitable for?
It is suitable for automotive manufacturers, industrial electronics producers, household appliance manufacturers, and environmental testing laboratories.
