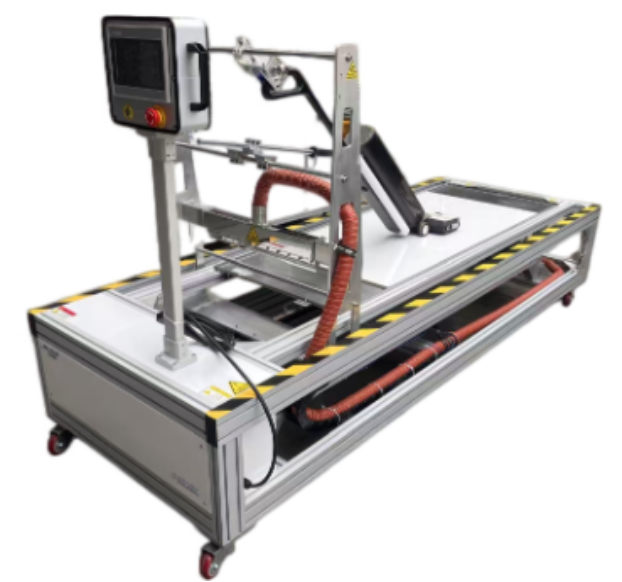

Mobile Floor Scrubber Aging Life Test Equipment
The Mobile Floor Scrubber Aging Life Test Equipment is designed to evaluate the long-term durability and operational lifespan of floor scrubbers. You can simulate real-world cleaning conditions by laying materials such as carpet, hard flooring, or tiles on the test platform. Controlled via PLC, the system drives floor scrubbers in reciprocating motion at adjustable speeds while collecting temperature data at multiple points. Integrated water supply and extraction systems replicate cleaning operations. Test data, including voltage, current, power, speed, stroke, temperature, and cycle counts, can be exported via USB for analysis. This equipment ensures high versatility, simple operation, convenient control, and low failure rates for testing multiple floor scrubber models under realistic usage conditions.
Applications
Durability and aging testing of mobile floor scrubbers
R&D evaluation for new floor scrubber designs
Performance verification of floor scrubbers with water dispensing and suction functions
Quality control for manufacturing lines
Testing in laboratories for compliance and product certification
Standards
IEC 60312-2010 – Household and Similar Electrical Appliances – Methods for Measuring Performance
GB/T 20291.1-2014 – Household Vacuum Cleaners – Test Methods for Performance and Durability
GB/T 28291-2012 – General Requirements and Test Methods for Robotic Cleaning Appliances
IEC 62885-2-2020 – Household and Similar Appliances – Cleaning Performance Testing Methods
Features
Accurately simulates real-world floor conditions using varied floor surfaces
Monitors temperature, electrical parameters, and operational cycles at multiple points
Supports configurable speed, stroke, and cycle settings for versatile testing
Integrated water supply and extraction system replicates actual cleaning operations
Data collected via PLC can be exported via USB for analysis
Compact and organized design reduces testing footprint while supporting multiple stations
Technical Parameters
| Item | Specification |
|---|---|
| Test Stations | 6 stations, 3 stations per group |
| Test Voltage & Current | DC: 0–60V; Current per station: 0–20A |
| Effective Travel of Test Table | 100–600 mm (adjustable) |
| Speed of Test Fixture | 150–800 mm/s (settable) |
| Electrical Parameters | Current, voltage, power, temperature |
| Cycle Setting | 0–9999999 (settable) |
| Counting Range | 0–999999 s (settable) |
| Test Modes | Time on/off setting, test count mode |
| Water Adding Time | 0–999999 s (settable) |
| Water Draining Time | 0–999999 s (settable; waste water is directly discharged) |
| Temperature Points | 2 points per station, total 8 points |
| Temperature Probe | Type K; Temperature range: 0–200℃ |
| Drive Mode | Servo motor reciprocating drive mechanism, mechanical transmission mechanism |
| Control Method | Mitsubishi PLC (Japan) + 7-inch touch screen |
| Test Data Acquisition | Voltage, current, test time, count, speed, stroke, temperature |
| Data Export | USB |
| Equipment Dimensions | 3500×1250×1680 mm |
| Equipment Power Supply | 220V 50Hz, 2.5KW |
Accessoriess
(1) Test platform with adjustable work surfaces (carpet, tiles, hard flooring)
(2) 7-inch touchscreen interface
(3) Mitsubishi PLC control system
(4) Water supply and extraction pump system
(5) Temperature probes (Type K)
(6) External AC/DC power supply connections for scrubbers
FAQ
1. Can multiple types of floor scrubbers be tested simultaneously?
Yes, the system supports 6 stations (3 stations per group), allowing simultaneous testing of multiple scrubber units.
2. How is water supply and extraction managed during tests?
The equipment integrates a water pump system that automatically adds and extracts water according to preset time intervals, with extracted wastewater discharged directly.
3. What parameters are recorded during the test?
Voltage, current, power, operating temperature, speed, stroke, and cycle count are all recorded.
4. Can the speed and stroke be adjusted during testing?
Yes, both movement speed (150–800 mm/s) and stroke (100–600 mm) are fully programmable via PLC.
5. Is data export supported for analysis?
Yes, all test data can be exported via USB for further analysis and reporting.
