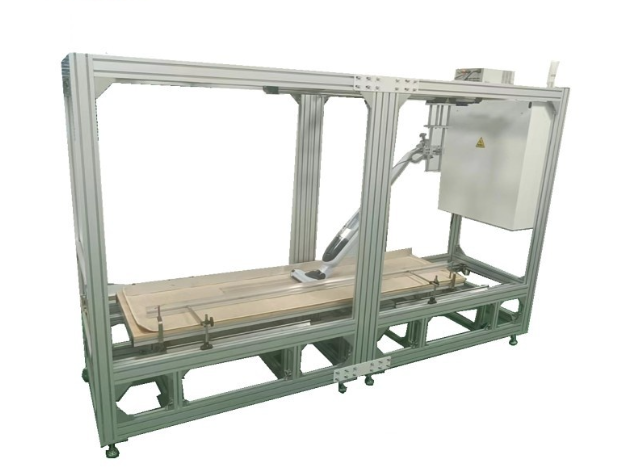

Vacuum Cleaner Motion Resistance Testing Equipment
The Vacuum Cleaner Motion Resistance Testing Equipment is a multifunctional integrated testing system designed to evaluate the mobility and durability performance of vacuum cleaners. You use this equipment to conduct motion resistance testing, threshold crossing tests, floor brush wall impact tests, and mobile aging simulations. Engineered in compliance with IEC 60312. GB/T 20291.1. and IEC 62885-2 standards, the system provides reliable, repeatable data while reducing on-site space requirements. By simulating real-world usage, it allows you to assess product quality and performance reliability efficiently.
Applications
Mobility resistance evaluation for household and commercial vacuum cleaners
Threshold crossing performance testing over carpet, tile, or uneven surfaces
Wall impact tests for floor brushes and vacuum cleaner edges
Mobile aging simulation to assess lifecycle durability
Performance verification for floor scrubbers and vacuum cleaner accessories
Laboratory testing and production quality control
Standards
IEC 60312: Household and Similar Electrical Appliances – Vacuum Cleaners – Methods for Measuring the Performance
GB/T 20291.1-2014: Household and Similar Electrical Appliances – Vacuum Cleaners – Part 1: Methods for Measuring Performance
IEC 62885-2:2020: Surface Cleaning Appliances – Part 2: Dry Vacuum Cleaners for Household or Similar Use – Methods for Measuring the Performance
Technical Parameters
| Item | Specification |
|---|---|
| Test Stations | Mobile aging test: 4 stations; Resistance/impact test: 2 stations; Threshold test: 2 stations |
| Touch Screen | 7-inch color touch screen |
| Stroke | 0–800 mm |
| Speed | 0–1.0 m/s, adjustable in 0.5s increments |
| Impact Force Test Range | 0–200 N, accuracy: 0.5 grade |
| Kinetic Force Test Range | 0–20 N, accuracy: 0.5 grade |
Features
You can switch seamlessly between multiple test modes on a single platform
Simulates real-world vacuum cleaner operation for mobility, threshold, and wall impact conditions
Compact design reduces laboratory footprint while accommodating multiple testing stations
7-inch touchscreen allows intuitive parameter setup and monitoring
Accurate motion resistance and impact force measurements ensure reliable product assessment
Supports lifecycle aging simulations for both vacuum cleaners and floor brush assemblies
Robust mechanical construction minimizes maintenance and improves long-term operational stability
Accessoriess
(1) Mobile aging test fixtures
(2) Threshold crossing platforms
(3) Wall collision impact modules
(4) Motion resistance measurement assemblies
(5) Integrated 7-inch touchscreen control unit
FAQ
1. What types of vacuum cleaners can be tested?
You can test upright, canister, handheld vacuum cleaners, as well as floor brushes and small floor scrubbers.
2. How do I switch between different testing modes?
You can select mobile aging, motion resistance, threshold crossing, or wall impact modes via the 7-inch touchscreen.
3. How is motion resistance measured?
Motion resistance is measured using integrated sensors with an accuracy class of 0.5. covering a range of 0–20 N.
4. What is the maximum impact force for wall collision tests?
The equipment can apply impact forces up to 200 N with an accuracy class of 0.5.
5. Can I adjust the speed for different vacuum cleaner models?
Yes, you can set the travel speed from 0 to 1.0 m/s ±50% according to the test requirements.
6. How is test data recorded and exported?
Test results are displayed in real-time on the touchscreen and can be exported via USB for analysis and reporting.
7. Is this equipment suitable for laboratory certification purposes?
Yes, it is designed to comply with IEC 60312. GB/T 20291.1. and IEC 62885-2 standards, making it suitable for both production and laboratory certification testing.
