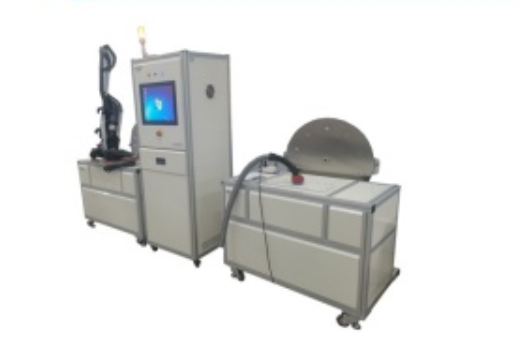

Vacuum Cleaner Air Performance Testing Equipment (Type A Pressure Equalization Chamber)
The Vacuum Cleaner Air Performance Testing Equipment (Type A Pressure Equalization Chamber) is designed to measure the airflow performance of vacuum cleaners and vacuum cleaner motors with airflow below 40 L/min. You use this system to evaluate key air performance parameters under standardized conditions defined by Type A pressure equalization chamber requirements. Manufactured in compliance with international and national standards, the equipment provides accurate, repeatable, and comparable test results for airflow, suction power, and efficiency. Test data can be automatically recorded and exported via USB, making it suitable for both production and laboratory environments.
Applications
Air performance testing of complete vacuum cleaners
Performance evaluation of handheld vacuum cleaners
Airflow and suction testing of vacuum cleaner motors
Product development and performance benchmarking
Type testing and routine inspection in manufacturing
Verification testing by third-party laboratories
Standards
IEC 60312-1: Vacuum Cleaners for Household Use – Methods for Measuring the Performance – Part 1: Dry Vacuum Cleaners
GB/T 20291.1: Household and Similar Electrical Appliances – Vacuum Cleaners – Part 1: Methods for Measuring Performance
IEC 62885-2: Surface Cleaning Appliances – Part 2: Dry Vacuum Cleaners for Household or Similar Use – Methods for Measuring the Performance
Type A Pressure Equalization Chamber Design as specified in IEC and GB standards
Technical Parameters
| Item | Specification |
|---|---|
| Adjustment Method | Electric throttle valve with stepless speed regulation |
| Pressure Chamber Dimensions | 460×460×250 mm |
| Control Mode | 17-inch industrial control computer display |
| Tester Type | Vacuum cleaner parameter tester |
| Test Voltage | AC/DC 10–300V, accuracy: 0.5% |
| Test Current | AC/DC 0.1A–20A, accuracy: 0.5% |
| Test Items | Voltage, current, power, vacuum level, air volume, suction power, efficiency |
| Vacuum Gauge | Range: -50–0 kPa, accuracy: ±0.075%/±0.05% |
| Equipment Power Supply | 220V 50Hz, 1.5KW |
| Equipment Dimensions | 1850×680×1680 mm |
Features
You can perform airflow testing using a standardized Type A pressure equalization chamber
Stepless electric throttle valve allows precise airflow adjustment
Industrial control computer ensures stable data acquisition and processing
Supports simultaneous measurement of electrical and air performance parameters
Suitable for both complete vacuum cleaners and vacuum motors
USB data export simplifies test record storage and reporting
Compact layout with professional laboratory-grade construction
Accessoriess
(1) Type A pressure equalization chamber
(2) Electric throttle valve assembly
(3) Vacuum pressure measurement module
(4) Integrated electrical parameter tester
(5) USB data export interface
FAQ
1. What types of products can be tested with this equipment?
You can test handheld vacuum cleaners, compact vacuum cleaners, and vacuum cleaner motors with airflow below 40 L/min.
2. What is the role of the Type A pressure equalization chamber?
It ensures stable airflow conditions and standardized measurement as required by IEC and GB performance testing standards.
3. How is airflow adjusted during testing?
Airflow is controlled using a stepless electric throttle valve for precise regulation.
4. Which parameters are measured during the test?
The system measures voltage, current, power, vacuum pressure, airflow, suction power, and efficiency.
5. How are test results stored and exported?
Test data is automatically recorded by the control system and exported via USB.
6. Is this equipment suitable for laboratory certification testing?
Yes, it complies with IEC 60312-1. IEC 62885-2. and GB/T 20291.1. making it suitable for laboratory and certification use.
