G503C Coated Fabric Flexing Test Machine
The Coated Fabric Flexing Test Machine is used to determine the flexing resistance of rubber- or plastic-coated fabrics.
The coated fabric specimen is sewn into a cylindrical shape and mounted between two discs. One disc oscillates around its axis, while the other reciprocates along its axis, causing the specimen to undergo repeated torsion and bending simultaneously.
Standards
GB/T 12586-2003 Method C (Flexing method)
FZ/T 01052
BS EN ISO 7854
BS 3424
Main Technical Parameters
| Item | Parameter |
|---|---|
| Flanged discs | 2 sets |
| Left disc reciprocating speed | (152 ± 4) cycles/min |
| Reciprocating stroke | 70 mm |
| Right disc oscillation speed | (200 ± 10) cycles/min |
| Oscillation angle | (90 ± 2)° |
Features

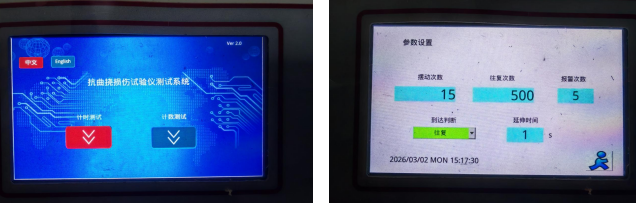

(1) Touchscreen controller
(2) Adjustable test cycles
(3) Dual test stations
Soft
FAQ
1. What is this product?
It is a laboratory instrument used to evaluate the flexing resistance of rubber- or plastic-coated fabrics.
2. What is this product used for?
It is used to determine how coated fabrics perform under repeated bending, torsion, and flexing conditions.
3. What is the working principle of this product?
A cylindrical specimen is mounted between two discs; one disc oscillates while the other reciprocates, subjecting the material to continuous flexing stress.
4. Why is this product important?
It helps assess durability and performance of coated fabrics, ensuring product quality and compliance with industry standards.
5. What industries is this product suitable for?
It is suitable for textile, coated fabric, automotive materials, protective clothing, and quality inspection laboratories.
