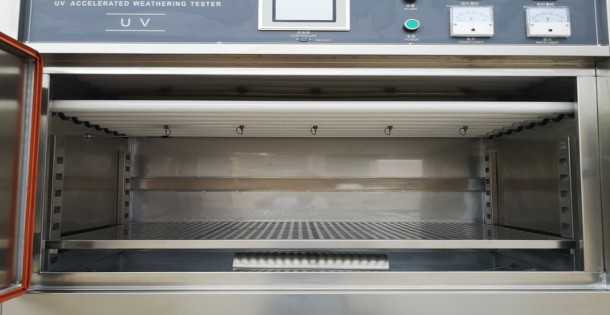

UV Accelerated Weathering Test Chamber
The UV Accelerated Weathering Test Chamber is designed to simulate the damaging effects of sunlight, rain, and dew on materials through controlled ultraviolet radiation and moisture exposure. The UV Accelerated Weathering Test Chamber can reproduce outdoor aging phenomena such as fading, discoloration, chalking, loss of gloss, brittleness, and oxidation within a short testing period. By combining ultraviolet light exposure with condensation and spray cycles, the UV Accelerated Weathering Test Chamber provides an efficient method for evaluating the weather resistance and durability of materials used in coatings, plastics, inks, leather, and electronic products.
Application
The UV Accelerated Weathering Test Chamber is suitable for the following applications:
(1) Weather resistance testing of coatings and paints.
(2) Durability testing of plastics and polymer materials.
(3) Aging evaluation of inks, pigments, and printing materials.
(4) Environmental testing of leather and textile materials.
(5) Performance testing of electronic and electrical product housings.
Standards
(1) ASTM D4329 (Plastics — Fluorescent UV exposure test method)
(2) ASTM G154 (UV aging of non-metallic materials)
(3) ISO 4892-3:2006 (Plastics — Artificial weathering using fluorescent UV lamps)
Parameters
| Item | Specification |
|---|---|
| Temperature range | RT+10 ℃ – 70 ℃ |
| Humidity range | ≥90% RH |
| Irradiance | Adjustable within 1.0 W/m² |
| Effective irradiation area | 1050 × 600 × 450 mm |
| UV lamp type | UVA-340 |
| UV wavelength | 315–400 nm |
| Lamp specifications | Length 1200 mm / 8 lamps |
| Inner chamber dimensions | 1060 × 550 × 400 mm |
| Black panel temperature | RT+10 ℃ – 80 ℃ |
| Test cycle time | 1 – 9999 h |
| Power supply | 220 V, 6 kW |
Features
(1) Simulates natural sunlight, humidity condensation, and rainfall conditions.
(2) Equipped with UVA-340 fluorescent UV lamps for accurate sunlight spectrum simulation.
(3) Adjustable irradiance and temperature control for precise environmental testing.
(4) Color touchscreen controller for intuitive operation and monitoring.
(5) Supports both fixed-value and programmed testing modes.
(6) Capable of storing up to 100 test programs with up to 999 repetitions.
(7) Automatic memory function retains test programs after power interruption.
(8) Real-time display of temperature curves for monitoring test conditions.
Accessories
(1) UV Accelerated Weathering Test Chamber main unit
(2) UVA-340 UV lamps (8 pcs)
(3) Spray nozzle system
(4) Condensation system
(5) Temperature sensor system
Maintenance Information
(1) Clean the chamber interior and spray system regularly to prevent residue buildup.
(2) Replace UV lamps periodically to maintain accurate irradiance levels.
(3) Inspect sensors and control systems for proper operation.
(4) Ensure the water supply system and humidification components function correctly.
FAQ
1.What is a UV Accelerated Weathering Test Chamber?
A UV Accelerated Weathering Test Chamber is a laboratory device used to simulate the effects of sunlight, temperature, and moisture on materials, such as plastics, paints, and coatings. By using specialized light sources that emit UV radiation, the chamber accelerates the weathering process, allowing researchers to assess how materials will perform over time when exposed to outdoor conditions.
2.How does the UV Accelerated Weathering Test work?
The test chamber utilizes intense UV light to replicate the sun's rays, along with controlled temperature and humidity to mimic various weather conditions. Materials are placed inside the chamber and exposed to these conditions for a specified duration. The results help identify potential degradation, discoloration, and loss of mechanical properties, enabling manufacturers to improve products and ensure their durability.
3.What materials can be tested in a UV Accelerated Weathering Test Chamber?
A wide range of materials can be tested in a UV Accelerated Weathering Test Chamber, including polymers, coatings, paints, textiles, and rubber. These materials are typically used in outdoor applications, and testing them helps manufacturers understand how their products will stand up to environmental stressors over time.
4.What are the benefits of using a UV Accelerated Weathering Test Chamber?
Using a UV Accelerated Weathering Test Chamber offers several benefits. It significantly speeds up the testing process, allowing for quick evaluations of materials. It also provides standardized conditions, ensuring consistent results across different tests. By identifying weaknesses in materials early, manufacturers can make necessary adjustments to enhance product longevity and performance, ultimately improving customer satisfaction.
5.How long does a UV Accelerated Weathering Test take?
The duration of a UV Accelerated Weathering Test can vary widely depending on the materials being tested and the specific conditions set in the chamber. Tests may last anywhere from a few hours to several weeks or even months. The general rule of thumb is that 1 to 2 weeks in the chamber can mimic several months to years of real-world exposure, but this can vary based on specific testing standards.
6.Are there specific standards for UV Accelerated Weathering Testing?
Yes, there are several industry standards for UV Accelerated Weathering Testing, such as ASTM G154, ASTM G155, and ISO 4892. These standards provide guidelines on the setup, conditions, and evaluation methods for the tests, ensuring that results are reliable and consistent. Compliance with these standards is essential for manufacturers looking to ensure their products meet performance requirements and regulations.
