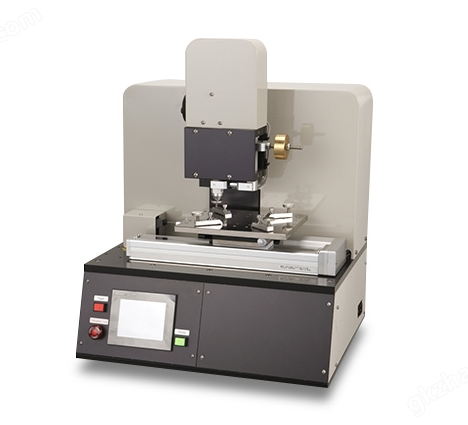

Scratch Resistance Tester KK-02
The KK-02 Scratch Resistance Tester is intended for medium-load scratch resistance evaluation of plastics, films, coatings, and automotive materials. Using a progressive vertical load and horizontal scratch motion, you can accurately measure scratch characteristics and surface damage behavior for material comparison and quality control.
Application
Scratch resistance testing of plastic and polymer materials
Surface performance evaluation of coatings and painted components
Scratch testing of automotive interior and trim parts
Durability assessment of packaging and electronic enclosure materials
Routine quality control and laboratory material evaluation
Standards
ISO 19252 — Plastics — Determination of scratch resistance of plastics and coated plastics by progressive load test
ASTM D7027-05 — Standard Test Method for Instrumented Indentation Test for Plastics (Scratch Resistance Test)
Parameters
| Parameter | Specification |
|---|---|
| Model | KK-02 |
| Dimensions | W545 × D455 × H680 mm |
| Weight | 65 kg |
| Power supply | AC 100 V |
| Maximum power consumption | 60 W |
| Operating environment | 10–40 ℃, 30–70 %RH, non-condensing |
| Test method | Progressive load method |
| Scratch direction | Left → Right |
| Vertical load range | 1–50 N |
| Horizontal load | 50 N |
| Scratch distance | Max. 400 mm |
| Scratch speed | 1–200 mm/s |
| Scratch depth detection | Laser displacement sensor |
| Sample size | 200 × 420 mm, thickness ≤ 5 mm |
Features
Medium load range suitable for general material evaluation
Compact structure with reduced footprint
Touchscreen operation for easy parameter configuration
Teaching function ensuring repeatable scratch positioning
Linear load application enabling stable results on uneven surfaces
Memory function for storing multiple test conditions
USB interface for data transfer and storage
Accessories
(1) Standard scratch stylus Φ1 mm
(2) Optional scratch styli for different scratch types
(3) USB connection cable
(4) Software and user manual
(5) Safety cover (optional)
Maintenance Information
Clean test components after use.
Periodically check stylus condition and alignment.
Keep sensors free from dust and contamination.
Operate the instrument in a stable environment.
FAQ
1. What is this product?
It is a medium-load scratch resistance testing instrument.
2. What is this product used for?
You use it to evaluate surface scratch resistance of materials in laboratory and QC testing.
3. How does this product work?
The stylus applies an increasing vertical load while moving horizontally across the sample.
4. Why is this product important?
It supports consistent quality control and material comparison.
5. What industries is this product suitable for?
Plastics, coatings, automotive, electronics, packaging, and research institutions.
