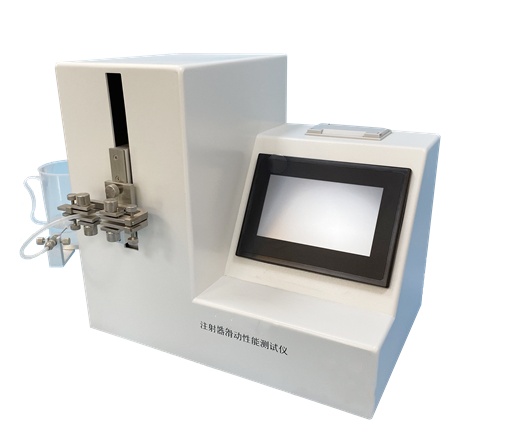

Syringe Slide Performance Tester
The Syringe Slide Performance Tester is a specialized instrument designed to measure the push and pull forces of syringe plungers, ensuring smooth operation, precise dosing, and consistent quality. It displays real-time force data, records the maximum and minimum push forces, and generates movement-force curves. The results can be printed directly using the built-in printer, making it ideal for both production quality control and R&D of syringes.
Application
This tester is suitable for evaluating the sliding performance of various medical devices, including:
(1) Disposable sterile syringes – 1 mL to 200 mL, assessing plunger smoothness and push-back force.
(2) Insulin syringes – verifying consistent dose delivery and ease of use.
(3) Infusion syringes – testing sliding force under different fill volumes.
(4) Catheter syringes – ensuring smooth plunger movement for accurate administration.
(5) Quality control in syringe manufacturing – confirming compliance with national and international standards.
(6) Research and development – assessing new syringe designs and materials for optimal plunger performance.
Standards
The instrument is designed to meet the following standards:
(1) GB 15810-2001: Disposable sterile syringe (China)
Optional expansions can comply with:
(2) ISO 7886-1:2017: Sterile hypodermic syringes – Part 1 (International)
(3) ISO 8537-2016: Disposable hypodermic needles (International)
Parameters
| Parameter | Specification |
|---|---|
| Working temperature | 5 – 40 ℃ |
| Relative humidity | 45 – 80 % |
| Power supply | AC 220 V ± 22 V |
| Power frequency | 50 Hz ± 1 Hz |
| Display | 320 × 240 single-color LCD, Chinese Windows |
| Load range | 0 – 40 N, accuracy ±0.1 N |
| Test speed | 100 mm/min ± 5 mm/min |
| Power consumption | 200 W |
Accessories
(1) Main unit – 1 set
(2) Printing paper – 1 roll
(3) Set of clamps – 1 set
(4) Operation manual – 1 set
(5) Warranty card – 1 year
(6) Free national standard upgrades
Features
(1) 5.7-inch (120 × 90) single-color LCD touch screen for real-time display.
(2) Chinese menu display with keyboard control for intuitive operation.
(3) Real-time recording of starting force, maximum force, minimum force, and core rod movement.
(4) Built-in printer for immediate test result output.
(5) Intelligent controller with CPU, motherboard, LCD, keyboard, and power supply.
(6) Adjustable testing speed and load range to accommodate different syringe types.
(7) User-friendly interface requiring minimal training.
Test Procedures
(1) Mount the syringe securely on the fixture using the provided clamps.
(2) Set the nominal capacity and test parameters via the keyboard interface.
(3) Start the test; the device will automatically record push/pull forces, movement data, and generate force curves.
(4) Observe real-time values for starting force, maximum force, minimum force, and plunger behavior.
(5) Print the test report for documentation and evaluation.
Maintenance Information
(1) Keep the instrument clean and free of dust or liquid ingress.
(2) Periodically check the accuracy of load measurement and calibrate if necessary.
(3) Avoid exposing the instrument to excessive heat, vibration, or electromagnetic interference.
(4) Inspect clamps and fixtures regularly to ensure proper alignment and secure mounting.
(5) Follow safety instructions for electrical and mechanical operation.
FAQ
1.What does the Syringe Slide Performance Tester measure?
The Syringe Slide Performance Tester measures the push and pull forces of syringe plungers during movement. It records starting force, maximum force, minimum force, and generates movement-force curves to evaluate plunger smoothness and consistency.
2.Which types of syringes can be tested with this instrument?
The tester is suitable for disposable sterile syringes (1 mL to 200 mL), insulin syringes, infusion syringes, and catheter syringes. It supports both quality control testing and performance evaluation of different syringe designs.
3.What test data can be recorded during the test?
During testing, the instrument records real-time force data, including starting force, maximum force, minimum force, and plunger movement. It also generates movement-force curves for performance analysis.
4.Does the tester support printing test results?
Yes. The Syringe Slide Performance Tester is equipped with a built-in printer that allows test results to be printed immediately after testing for documentation and evaluation.
5.Which standards does the Syringe Slide Performance Tester comply with?
The instrument is designed to meet GB 15810-2001 for disposable sterile syringes. Optional configurations allow compliance with ISO 7886-1:2017 and ISO 8537-2016.
6.Is the testing speed adjustable?
Yes. The tester features adjustable testing speed and load range, allowing it to accommodate different syringe types and testing requirements.
7.What are the typical application scenarios for this tester?
The Syringe Slide Performance Tester is widely used in syringe manufacturing quality control and research and development. It helps verify sliding performance, dosing consistency, and compliance with applicable standards.
