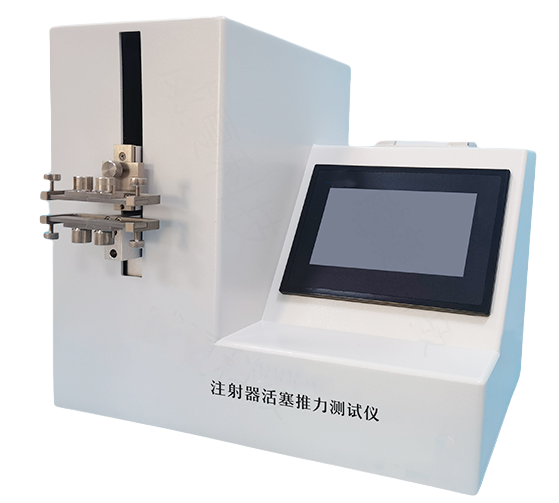

Syringe Piston Thrust Tester

The syringe piston thrust tester is a kind of high precision and high stability measuring equipment, which is used to measure the thrust of the syringe piston in the process of pushing. The device adopts sensor technology and data processing technology, which can measure piston thrust accurately and quickly, and provide reliable guarantee for quality control in the production process of syringe.

Test principle

The syringe piston thrust tester is mainly composed of sensors, measurement and control systems and displays. Its principle is based on force measurement. By measuring the force generated by the syringe piston when it pushes out the liquid, it can determine whether its thrust meets the standard requirements.

Meet the standard

GB15811. ISO7886. YBB00152004-2015. YBB00162004-2015. YBB00112004-2015. GB 15810-2019. YY/T0573.2-2018

Main parameter

1. Range: 0-500N (300N 1000N 2000N optional)

2. Speed: 1-500mm/min can be set arbitrarily

3. Error: ±0.1mm/S

4. Power supply: AC 220V±22V, 50Hz

Operation process

1. Fix the syringe on the tester to ensure its stable position;

2. Adjust the measuring range of the tester to match the specifications of the syringe under test;

3. Press the start button, the tester starts to measure the piston thrust;

4. Record the measurement results and judge whether they meet the standard requirements;

5. If it does not meet the standard requirements, it is necessary to adjust the syringe or replace the parts;

6. After completing the test, turn off the tester, and record and file the results.
