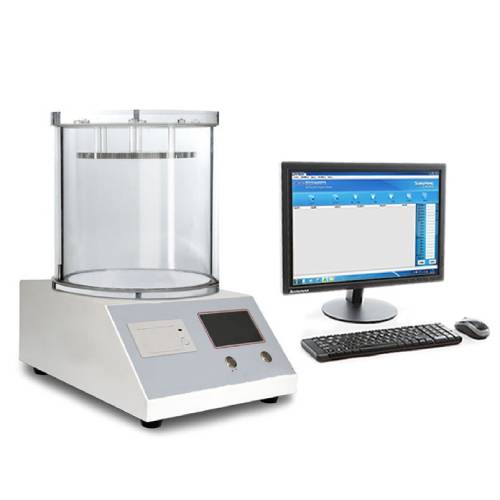

Bubble Leak Tester
The Bubble Leak Tester utilizes a positive pressure testing principle and is suitable for the quantitative measurement of sealing strength, heat seal quality, burst pressure, and leakage performance of various sealed packages; it can also be used for the quantitative measurement of the sealing performance of various plastic tamper-evident caps, inflatable packaging, ointment tubes, and medical packaging. Simultaneously, it can perform analysis and testing of various bottle body sealing properties, compressive strength, and burst resistance.
Applications
Medical Device Packaging Inspection:The Gross Leak Tester can be used for the sealing performance testing of various medical device packages, such as trays and combined packages, ensuring that the packages will not leak and cause product contamination during transportation and storage. The instrument can also be used to detect key indicators such as the pressure - resistance of the package, heat - sealing quality, and the bursting pressure of the entire package. Bottle Cap Sealing Performance Testing: It is suitable for the sealing performance testing of various plastic anti - theft bottle caps, ensuring that the bottle caps can effectively prevent liquid leakage after being sealed. Bottle Body Sealing and Compression Resistance Testing: It can be used for the testing of the sealing, compression resistance, and durability of various bottle bodies, providing quality assurance for bottle body design and production. Soft Tube Testing: It is suitable for the sealing performance testing of soft tube packages such as various toiletries, medicinal ointments, and food packaging.
Other Applications: It can also be used for the sealing performance testing of aerosol valves and the pressure - resistance testing of blister packages.
Standards
YY/T 0681.5 - 2010：Test methods for sterile medical device package - Part 5: Detecting gross leaks in medical packaging by internal pressurization (bubble test)
Features
• Embedded high-speed microcomputer chip control and a simple and efficient human-machine interface provide users with a comfortable and smooth operating experience.
• 7-inch high-definition color LCD screen displays test data and curves in real time.
• Supports expansion suppression and non-suppression testing.
• Overvoltage safety protection, power-off memory, and other safety features ensure system stability during testing.
• English and Chinese interfaces can be switched freely.
• Equipped with a standard RS232 communication port for convenient external connection and data transmission between the system and a computer.
• Energy-saving and environmentally friendly design, aesthetically pleasing appearance, and ultra-low power consumption power supply meet national energy-saving and environmental protection requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Testing Range | Suitable for the gross leak testing under internal pressure of various packages, and the testing pressure range can be customized according to requirements. |
| Testing Principle | Based on the positive-pressure testing principle, a certain pressure is applied to the inside of the package, and it is determined whether there is a gross leak by observing whether bubbles are generated on the outside. |
| Automated Control | Equipped with a PLC industrial control program, which can accurately control the pressure and time, and automatically complete the experiment after setting the test pressure and time. |
| Ease of Operation | With a touch-screen operation interface, it is highly user-friendly and simple to operate. |
| Testing Accuracy | The testing error is usually within ±1%, ensuring the accuracy of test results. |
| Constant Pressure Time | Can be set through the touch-screen, with a range of 1 - 9999 seconds. |
| Air Source Interface | Usually equipped with a Φ6mm polyurethane tube and an 8mm interface for easy connection to the air source. |
| External Dimensions | May vary depending on the model but are usually compact; e.g., some models: 420mm(L)×290mm(W)×280mm(H) |
Accessoriess
Standard Accessories:Usually includes the main unit, a puncture device, a test container, etc.
Optional Accessories:Non-standard devices such as a standard test rack, a three-side testing fixture, a constraint plate testing fixture, and an anti-theft bottle cap removal fixture (selected as needed).
Test Procedures
When selecting a gross leak tester, attention should be paid to whether it supports the full process of YY/T 0681.5-2010. covers a pressure range of 0~5kPa or higher, and has adaptability to various fixtures. Routine maintenance includes regularly calibrating the sensors, cleaning the water tank, and checking the seals to ensure long-term stable operation.
FAQ
1. What is the testing principle of the Bubble Leak Tester and what parameters can it measure?
The Bubble Leak Tester is based on a positive pressure testing principle. During testing, a defined pressure is applied to the interior of a sealed package, container, or component. The tester determines whether a gross leak exists by observing whether bubbles are generated on the outside surface when the sample is immersed in liquid. Using this principle, the instrument can quantitatively evaluate sealing strength, heat seal quality, burst pressure, and overall leakage performance. It is also capable of analyzing bottle sealing properties, compressive strength, and burst resistance, providing reliable data for package integrity assessment.
2. What types of packaging and products can be tested with the Bubble Leak Tester?
The Bubble Leak Tester is suitable for a wide range of sealed products and packaging forms. These include medical device packages such as trays and combined packages, plastic tamper-evident bottle caps, inflatable packaging, ointment tubes, and various types of medical packaging. It can also be used for soft tube packaging used in toiletries, pharmaceutical ointments, and food products, as well as for aerosol valve sealing tests and pressure-resistance testing of blister packages.
3. How is the Bubble Leak Tester used in medical device packaging inspection?
In medical device packaging inspection, the Bubble Leak Tester is used to verify the sealing performance of sterile medical packages to prevent contamination during transportation and storage. It can detect gross leaks by internal pressurization and observe bubble formation, while also measuring critical indicators such as package pressure resistance, heat-sealing quality, and bursting pressure of the entire package. The tester supports the full test process required by YY/T 0681.5-2010, making it suitable for evaluating whether medical packaging meets integrity and safety requirements under controlled pressure and time conditions.
4. What control and display features does the Bubble Leak Tester offer?
The Bubble Leak Tester is equipped with an embedded high-speed microcomputer chip and a PLC industrial control program, enabling precise control of test pressure and time. A 7-inch high-definition color LCD screen displays test data and curves in real time, while the touch-screen interface allows simple and user-friendly operation. The system also supports power-off memory, overvoltage protection, and bilingual interface switching between English and Chinese.
5. What is the testing accuracy and pressure control capability of the instrument?
The instrument typically provides a testing accuracy within ±1%, ensuring reliable and repeatable results. Test pressure and constant pressure time can be set directly through the touch screen, with the constant pressure duration adjustable from 1 to 9999 seconds. The testing pressure range can be customized according to application requirements, allowing adaptability to different packaging types and standards.
6. What accessories and connectivity options are available for the Bubble Leak Tester?
Standard accessories usually include the main unit, a puncture device, and a test container. Optional accessories include non-standard fixtures such as standard test racks, three-side testing fixtures, constraint plate fixtures, and anti-theft bottle cap removal fixtures. For data transmission and external connections, the tester is equipped with a standard RS232 communication port, enabling convenient connection to a computer.
