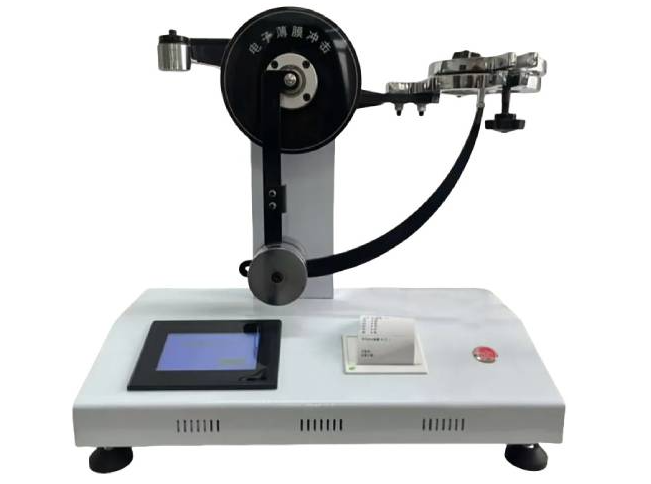

Pendulum Impact Testing Machine For Plastic Film

Pendulum Impact Testing Machine for Plastics and Composite Materials.Pendulum Impact Testing tester is specifically designed for evaluating the impact resistance of plastic film, thin film, and composite film. With precision electronic measurement up to 0.001 J, it ensures accurate results. Ideal for various applications, including testing food and drug packaging bags with PE/PP composite film, aluminum plating film, aluminum-plastic composite film, nylon film, and more.

Applications

This advanced Pendulum Impact Tester is specifically tailored for evaluating the impact resistance of various materials, including plastic film, composite film, metallic foil, and more. With applications ranging from scientific research and academic education to laboratory use, research institutes, and quality control departments, Pendulum Impact Tester is a versatile solution for precise and reliable testing.

Film:It is suitable for testing the resistance of plastic film, thin film and composite film to pendulum impact. Such as food and drug packaging bags with PE/PP composite film, aluminum plating film, aluminum plastic composite film, nylon film, etc

Paper, Sheet Testing:It is suitable for testing the impact resistance of paper and paperboard, such as aluminized paper for cigarette packaging and aluminum-plastic paper composite material for Tetra Pak packaging.

Standards

ASTM D3420: Standard Test Method for Flexural Properties of Plastics

ASTM D256: Standard Test Method for Izod Impact Strength of Plastics and Reinforced Plastics

ASTM D4812: Standard Test Method for Tensile Properties of Thermoplastic Films and Sheeting

ASTM D6110: Standard Test Method for Tensile Properties of Rubber and Elastomers (Dumbbell Shapes)

ISO 180: Plastics — Determination of Izod impact strength

ISO 179: Plastics — Determination of Charpy impact strength

ISO 8256: Plastics — Cellular plastics — Determination of tensile properties

ISO 7628: Fibre-reinforced plastics — Determination of flexural properties

ISO 9854: Textiles — Determination of tensile properties — Part 1: Breaking force and elongation at break

DIN 53453: Kunststoffe — Bestimmung der Schlagzähigkeit (Charpy-Verfahren)

DIN 53753: Kunststoffe — Bestimmung der Biegeeigenschaften

Features

1. Multi-Energy Range and High-Precision Testing

The equipment supports three adjustable impact energy levels: 1J, 2J, and 3J, with a resolution up to 0.001J, meeting the testing needs of flexible packaging materials ranging from thin to thick.

Punch sizes are available in Φ12.7mm, Φ19mm, and Φ25.4mm, while clamp diameters are compatible with Φ60mm and Φ89mm, accommodating samples of varying thicknesses and structures.

2. Constant Impact Velocity and Pneumatic System

The impact velocity is constant at 2.5m/s, ensuring repeatability of test results.

The pneumatic clamping and pendulum release system effectively reduces human error and improves test stability.

3. Intelligent Data Management

Equipped with a microcomputer control system, it supports parameter setting, automatic data statistics, and visualized result display.

Compatible with the Lystem™ laboratory data sharing system, enabling one-click generation and unified management of test reports.

Technical Parameters

Accessoriess

Izod Vice

Charpy Rest

Tension Impact Rest (Specimen in bed method)

Puncture Impact Fixture

Pipe Rest

Component fixture to customer requirements

Variable weight impact hammers up to 50 Joules

Thermal printer

Full safety enclosure

Low-temperature chamber

Test Procedures

1. Environmental Condition Control

Samples must be pretreated for at least 4 hours in an environment with a temperature of 23±2℃ and humidity of 45%～55% to avoid the influence of temperature and humidity on material properties (refer to GB/T 8809 and ISO standards).

2. Sample Preparation and Installation

Samples should be uniformly 100mm×100mm in size, with no wrinkles, bubbles, or damage on the surface.

Select the punch size according to the material characteristics (e.g., Φ12.7mm for thin films, Φ25.4mm for thick composite films) and match the corresponding fixture.

3. Equipment Parameter Calibration

Before testing, the initial angle of the pendulum (90°), impact velocity (2.5m/s), and energy zero point must be calibrated to ensure compliance with standards such as ASTM D3420.

Verify the equipment accuracy using standard samples to avoid errors caused by mechanical wear or sensor drift.

4. Data Acquisition and Analysis

Record the energy consumed by the punch during the impact process and analyze the material deformation characteristics in conjunction with the stress-strain curve.

Compare the material to standard thresholds (e.g., the impact resistance of food packaging composite films should be ≥2J) to assess whether the material meets the application requirements.

FAQ

1. What is the main purpose of the Pendulum Impact Testing Machine for Plastic Film?

The Pendulum Impact Testing Machine is designed to evaluate the impact resistance of plastic films, thin films, and composite films. It can measure the energy absorbed during fracture, allowing precise assessment of material toughness. This is particularly important for food and drug packaging bags, aluminum-plastic composite films, and nylon films, ensuring that the materials meet the mechanical requirements for safe handling, transport, and usage.

2. What types of materials can be tested with this machine?

This tester is suitable for a wide range of materials, including plastic films, composite films, metallic foils, paper, and paperboard. Examples include PE/PP composite food packaging films, aluminum-plastic films, aluminum-plated films, cigarette packaging aluminized paper, and Tetra Pak composite materials. Its versatility allows research institutes, laboratories, and quality control departments to evaluate impact resistance in multiple applications.

3. How does the machine ensure accurate and repeatable results?

The machine uses high-precision electronic measurement with a resolution of up to 0.001 J and a constant impact velocity of 2.5 m/s. Pneumatic clamping and pendulum release systems reduce human error, while calibration with standard samples ensures that sensor drift or mechanical wear does not affect results. The microcomputer control system automatically collects data, provides statistical analysis, and displays visualized results, ensuring precise and repeatable testing outcomes.

4. How are samples prepared for testing?

Samples must be pretreated for at least 4 hours in an environment with 23±2℃ and 45%-55% humidity to stabilize material properties. They should be cut to uniform 100mm×100mm sizes without wrinkles, bubbles, or damage. The punch size is selected based on film thickness, and the appropriate fixture is chosen to ensure proper clamping. Proper preparation guarantees the accuracy and reliability of the measured impact resistance.

5. How is the energy absorbed by the material measured and analyzed?

During testing, the punch strikes the sample, and the energy consumed is recorded by the machine. This energy value reflects the material’s impact toughness and resistance to fracture. Data is analyzed alongside stress-strain curves to understand deformation characteristics. Materials are then compared to standard thresholds, such as requiring ≥2J for food packaging composite films, to determine if they meet application requirements and safety standards.
