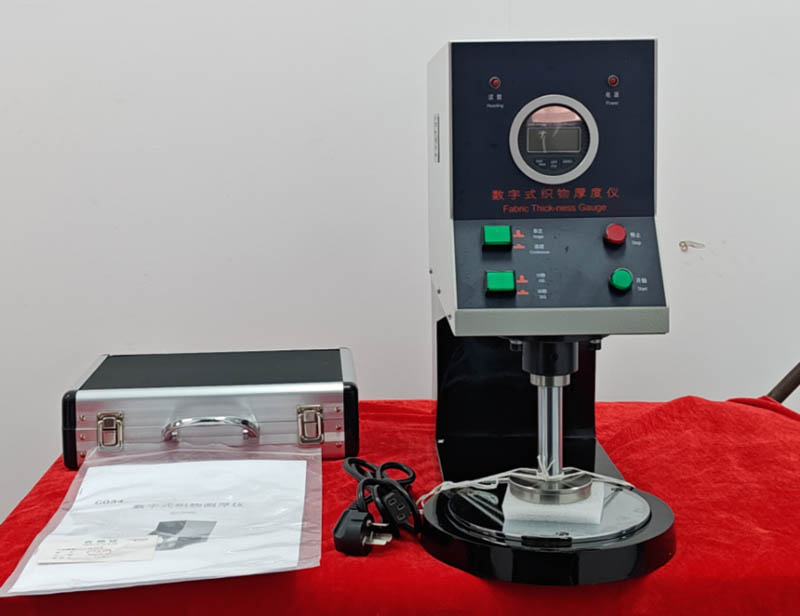

Digital Fabric Thickness Gauge G034
The Digital Fabric Thickness Gauge G034 is designed for measuring the thickness of textiles and textile products under different applied pressures. It is also suitable for thickness measurement of other uniform thin sheet materials. The instrument provides accurate and repeatable thickness data under specified pressure, area, and loading time conditions.
Application
Thickness measurement of woven, knitted, and nonwoven fabrics
Thickness testing of finished textile products
Thickness evaluation under different applied pressures
Quality control and material comparison of uniform thin materials
Laboratory testing and production inspection environments
Standards
GB/T 3820 Textiles — Determination of thickness of textiles and textile products
ISO 5084 Textiles — Determination of thickness of textiles and textile products
ASTM D1777 Standard Test Method for Thickness of Textile Materials
BS 2544 Method for determination of thickness of textiles
JIS L 1096 Testing methods for woven and knitted fabrics (Thickness measurement section)
Parameters
| Parameter | Specification |
|---|---|
| Thickness Measurement Range | 0.01 mm – 25.00 mm |
| Resolution | 0.01 mm |
| Presser Foot Diameter | Φ11.28 mm / Φ50.48 mm / Φ56.42 mm / Φ112.84 mm |
| Presser Foot Area | 100 mm² / 2000 mm² / 2500 mm² / 10000 mm² |
| Applied Weights | 5 cN, 10 cN, 50 cN, 100 cN, 200 cN, 500 cN |
| Loading Time | 10 s, 30 s |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Instrument Dimensions | 410 mm × 160 mm × 395 mm |
| Net Weight | 25 kg |
Features
Wide thickness measurement range with high resolution
Multiple presser foot sizes to meet different test pressure requirements
Multiple standard weights for flexible pressure selection
Stable mechanical structure ensuring repeatable measurement results
Digital display for direct thickness reading
Simple operation and low maintenance requirements
Test Procedures
Place the specimen on the reference plate of the instrument.
Select the appropriate presser foot and applied weight according to the test requirement.
Apply the specified pressure to the specimen over the defined area.
Maintain the load for the selected dwell time (10 s or 30 s).
Record the vertical distance between the presser foot and reference plate as the specimen thickness.
Maintenance Information
Install the instrument on a rigid workbench such as marble or stone to avoid vibration influence.
Avoid using wooden tables during measurement and calibration.
Ensure no abnormal noise or vibration occurs during operation.
Keep the instrument clean and prevent dust from entering internal components.
Transmission components use sealed dust-proof bearings; apply a small amount of watch oil if necessary.
For sluggish movement, disassemble, clean, and reinstall the components before adjustment.
Replace the digital indicator battery (1.5 V AA) when display flashes or becomes unstable.
Remove the battery if the instrument will not be used for a long period.
FAQ
1. What is this product?
It is a digital instrument used to measure the thickness of textiles and other uniform thin materials under specified pressure conditions.
2. What is this product used for?
It is used to determine fabric thickness for quality control, material comparison, and compliance testing in textile laboratories and factories.
3. Why is this product important?
Fabric thickness directly affects textile performance, comfort, and appearance. Accurate thickness measurement ensures consistent product quality.
4. What industries is this product suitable for?
Textile manufacturing, garment production, testing laboratories, and research institutions.
5. What types of this product are available?
Digital thickness gauges with multiple presser foot sizes, selectable loading weights, and configurable loading times.
