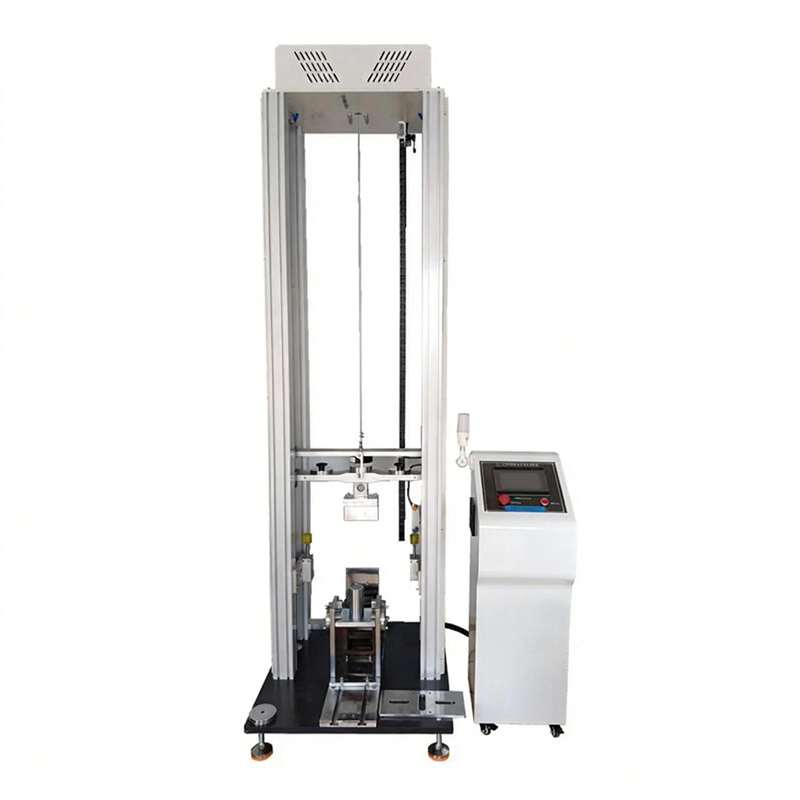

Roller Skate Impact Tester
The Roller Skate Impact Tester is a specialized device designed to evaluate the structural strength and safety performance of inline skates and ice skates under instantaneous impact conditions.
By using an electromagnet-controlled impact hammer for precise free-fall impacts at preset heights, you can assess how skates withstand falls, collisions, and other sudden forces, ensuring structural integrity and user safety.
Application
This tester is widely used for impact resistance and safety evaluation of skating footwear and related products. Typical applications include:
(1) Inline skates (single-row or double-row) impact resistance testing
(2) Ice skates structural impact strength evaluation
(3) Safety performance testing of roller sports equipment
(4) Quality control during production in sporting goods manufacturing
(5) Safety inspections in national or third-party laboratories
(6) Structural design and material validation during R&D
(7) Compliance and certification testing for domestic and international markets
Standards
The Roller Skate Impact Tester is designed to meet the requirements of the following standards:
(1) GB 20096-2006 — Inline Skates: Safety Requirements and Test Methods
(2) EN 13843:2003 — Roller Sports Equipment: Inline Skates Safety Requirements
Parameters
| Item | Technical Specification |
|---|---|
| Impact method | Electromagnet-controlled free-fall hammer |
| Drop height | Adjustable according to standard requirements |
| Impact speed display | 0–4.5 m/s |
| Drop hammer height display | PLC human-machine interface |
| Impact height setting | PLC touchscreen |
| Safety feature | Anti-secondary impact mechanism |
| Motor power | 750 W |
| Power supply | AC 220V, 50 Hz |
| Machine dimensions | 700 × 600 × 3380 mm (L × W × H) |
| Machine weight | Approx. 200 kg |
Impact Hammer Specifications
| No. | Hammer Weight (including crossbar) | Shape | Size / Specification |
|---|---|---|---|
| A | 6.25 kg | Rectangular | 30 × 5 cm + EVA75A rubber block (30 × 5 × 2.5 cm) |
| B | 8.0 kg | Rectangular | 30 × 5 cm + EVA75A rubber block (30 × 5 × 2.5 cm) |
| C | 13.5 kg | Cylindrical | Diameter 65 mm |
| D | 15 kg | Cylindrical | Diameter 75 mm |
| E | 17 kg | Cylindrical | Diameter 75 mm |
| F | 23 kg | Cylindrical | Diameter 40 mm |
Features
(1) Electromagnet-controlled hammer lift ensures precise, repeatable impacts
(2) Supports multiple hammer weights to meet different standards and sample requirements
(3) PLC touchscreen control allows intuitive parameter setting and operation
(4) Real-time display of hammer drop height and impact speed improves traceability
(5) Anti-secondary impact mechanism protects the sample from unintended impacts
(6) Fixture system allows quick switching between inline skates and ice skates
(7) Stable overall structure with compact footprint, suitable for laboratory use
Accessories
(1) Electromagnet-controlled impact hammer
(2) PLC touchscreen control panel
(3) Sample fixture system for inline skates
(4) Sample fixture system for ice skates
(5) Set of impact hammers with varying weights
(6) Power cable and grounding accessories
(7) Operation and maintenance manual
Test Procedures
(1) Secure the skate (inline or ice) in the dedicated fixture
(2) Set the impact height, hammer weight, and other test parameters via PLC touchscreen
(3) Release the electromagnet-controlled hammer to strike the designated area
(4) Monitor and record impact speed, hammer drop height, and test parameters
(5) Observe the sample for structural damage, fractures, detachment, or functional failure
(6) Compare results with standard criteria to evaluate impact resistance and safety
(7) Repeat for multiple samples or hammer configurations as required
Maintenance Information
(1) Inspect hammer, fixture, and loading components for wear or damage before each test
(2) Ensure electromagnet and control system operate correctly
(3) Lubricate moving parts and check alignment regularly
(4) Keep PLC touchscreen and electronics clean and dry
(5) Operate in a controlled laboratory environment with minimal vibration or airflow interference
FAQ
1. What is this product?
It is an impact tester designed to evaluate the structural strength and safety performance of inline and ice skates under sudden external forces.
2. What is this product used for?
You use it to simulate collisions, falls, and other impact conditions to assess skate durability and structural integrity.
3. What is the working principle of this product?
An electromagnet lifts the impact hammer to a set height. Upon release, the hammer free-falls onto the skate, delivering a controlled impact. The resulting structural response is analyzed.
4. Why is this product important?
It ensures skates meet safety standards, prevents structural failures during use, and supports product certification and quality control.
5. What industries is this product suitable for?
It is suitable for sporting goods manufacturers, testing laboratories, quality control agencies, and R&D teams in the skating and ice sports industry.
6. What types of this product are available?
The tester supports multiple hammer weights and fixture options, suitable for inline skates, ice skates, and other small sports footwear requiring impact testing.
