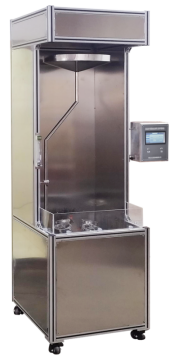

Textile bondi door rain tester
The G816A Textile bondi door rain tester is designed to evaluate the water repellency of textiles under simulated rainfall conditions. The instrument measures the amount of water passing through the fabric and provides an objective assessment of fabric water repellency during dynamic conditions, such as exposure to rain while in motion.
Application
The tester is suitable for evaluating water repellency performance of various textiles, including:
Outdoor clothing fabrics
Sportswear textiles
Technical textiles for automotive or protective applications
Waterproof coatings on synthetic fabrics
Upholstery and canvas materials
Standards
The G816A Bondis Spray Tester complies with the following national and international standards:
(1) GB/T 14577-1993 – Test Method for Water Repellency of Textiles (China)
(2) ISO 9865 – Textiles – Water Repellency – Spray Test (International)
(3) BS EN 29865 – Textiles – Determination of Water Repellency – Spray Test (UK/Europe)
(4) DIN 53888 – Determination of Water Repellency of Fabrics (Germany)
(5) JIS L1092 – Test Methods for Water Repellency of Fabrics (Japan)
Parameters
| Parameter | Specification |
|---|---|
| Number of spray heads | 300, evenly distributed on 406 mm diameter plane |
| Rainfall area | Approx. 1300 cm² |
| Rainfall amount (per 100 cm²) | 100–300 mL/min, adjustable |
| Test specimen diameter | 140 mm |
| Test cup diameter | 100 mm |
| Test cup installation angle | 15° |
| Test cup rotation speed | 6 r/min |
| Cross scraper size | 48 × 5 mm |
| Scraper rotation speed | Approx. 20 r/min |
| Scraper friction pressure | Approx. 250 cN |
| Spray head distance from sample | 1.5 m |
| Dimensions (L×W×H) | 750 × 750 × 2400 mm |
| Power supply | AC220V, 50Hz, 400W |
| Weight | Approx. 70 kg |
Features
Color touchscreen with menu-based operation for intuitive control
Built-in timer automatically stops the test and provides an alert
Corrosion-resistant stainless steel body
Core control via 32-bit multifunctional motherboard from STMicroelectronics
Equipped with a leveling device for precise alignment
Mobility ensured with universal wheels; machine can be fixed in place
Stable table-top design with low operational noise
Precision motor drives rotation; smooth speed with minimal overshoot
Spray volume and coverage customizable per client requirements
Robust control panel with anodized aluminum and metal buttons
Multi-language interface (Chinese/English) for international users
Accessories
(1) Main unit – 1 pc
(2) Product certificate – 1 pc
(3) User manual – 1 pc
(4) Delivery note – 1 pc
(5) Acceptance form – 1 pc
(6) Product brochure – 1 pc
Test Procedures
Install the test specimen in the test cup at a 15° angle.
Adjust the leveling device to ensure the instrument is perfectly horizontal.
Set the desired spray volume (100–300 mL/min) and rotation speed.
Start the rotation of the test cup and cross scraper.
Activate the spray system; the water passes through the textile to measure repellency.
After the test duration, the instrument automatically stops and triggers an alert.
Record the water penetration results and assess fabric repellency according to the standard.
Maintenance Information
Clean the spray nozzles regularly to prevent clogging.
Wipe stainless steel surfaces with a soft cloth to prevent corrosion.
Check rotation motors and scraper mechanism for smooth operation monthly.
Ensure water supply is filtered and free of impurities.
Calibrate spray volume periodically to maintain test accuracy.
FAQ
What is this product?
A specialized tester for evaluating water repellency of textiles using the Bondis spray method.
What is it used for?
It simulates rain exposure to measure water penetration and fabric repellency.
Why is it important?
Ensures textile materials meet performance requirements for outdoor and technical applications.
Which industries is it suitable for?
Textile manufacturing, sportswear, outdoor clothing, automotive textiles, protective fabrics.
What types of textiles can be tested?
Woven, knitted, and coated fabrics, as well as outdoor gear and synthetic materials.
