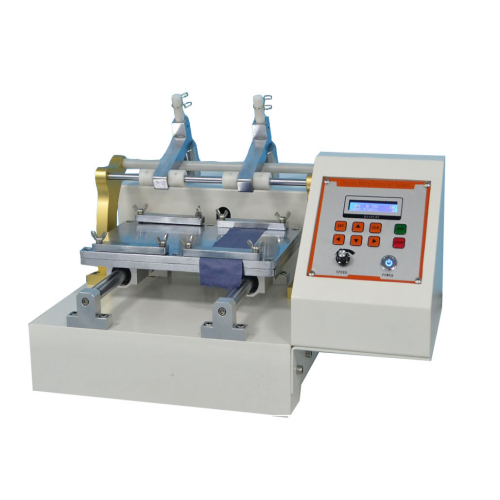

Dual-Station Motorized Rubbing Color Fastness Tester
The Dual-Station Motorized Rubbing Color Fastness Tester is designed to evaluate the color fastness to rubbing of dyed textiles and leather materials. The test is performed by wrapping dry or wet white cotton cloth around a rubbing cone and applying reciprocating rubbing motion against the specimen fixed on the test table. The degree of color transfer from the specimen to the cotton cloth is then assessed to determine the color fastness grade.
The instrument provides stable, repeatable, and standardized testing conditions for laboratory evaluation and quality control.
Applications
(1) Color fastness to rubbing testing of woven fabrics, knitted fabrics, and nonwoven textiles.
(2) Evaluation of dye fixation performance of dyed fabrics during textile finishing processes.
(3) Dry and wet rubbing color fastness testing of leather and coated leather materials.
(4) Quality control testing for garments, upholstery fabrics, home textiles, and leather products.
(5) Comparative testing for process optimization in textile dyeing and finishing laboratories.
(6) Routine inspection testing in third-party laboratories and certification bodies.
(7) Incoming material inspection and outgoing product verification for textile manufacturers.
Standards
(1) ISO 105 — Textiles — Tests for colour fastness (relevant parts for rubbing).
(2) ASTM D2054 — Standard Test Method for Colorfastness of Textiles to Rubbing.
(3) JIS L 0849 — Testing methods for colour fastness to rubbing.
(4) GB/T 3920 — Textiles — Tests for colour fastness — Colour fastness to rubbing.
(5) AATCC 8 — Colorfastness to Crocking (reference method, where applicable).
Features
(1) Dual-station design allows simultaneous testing of two specimens, improving test efficiency.
(2) Motor-driven reciprocating rubbing mechanism ensures stable and repeatable motion.
(3) Supports both dry rubbing and wet rubbing test methods.
(4) Adjustable rubbing speed to meet different standard requirements.
(5) Standardized rubbing cone with consistent contact pressure.
(6) Wide load selection suitable for different testing conditions.
(7) Digital counter for accurate control of rubbing cycles.
(8) Compact structure with reliable operation for laboratory use.
Technical Parameters
| Item | Specification |
|---|---|
| Test stations | Dual station |
| Drive type | Motorized |
| Specimen size | 140 mm × 50 mm |
| Applied load | 2 N, 9 N |
| Motor power | 1/4 HP |
| Rubbing speed | 0–60 cpm, adjustable |
| Rubbing distance | 104 mm |
| Rubbing cone diameter | Ø16 mm |
| Counter range | 0–999,999 cycles |
| Test table size | 260 mm × 180 mm |
| Main unit dimensions | 580 mm × 550 mm × 380 mm |
| Control box dimensions | 190 mm × 190 mm × 160 mm |
| Equipment weight | 50 kg |
| Power supply | Single-phase AC 220 V, 3 A |
FAQ
(1) What is this product?
It is a laboratory instrument used to determine the color fastness to rubbing of textiles and leather materials.
(2) What is it used for?
It is used to evaluate the degree of color transfer from dyed materials to white cotton cloth under dry and wet rubbing conditions.
(3) Why is it important?
Color fastness to rubbing is a key quality indicator that affects product appearance, durability, and compliance with international textile standards.
(4) What products can it test?
Dyed woven fabrics, knitted fabrics, nonwovens, leather, coated textiles, garments, upholstery fabrics, and leather goods.
(5) What types are there?
This model is a dual-station motorized type; similar testers may include single-station or multi-station configurations.
(6) How does it operate?
A specimen is fixed on the test table, white cotton cloth is mounted on the rubbing cone, and the motor drives the cone to perform reciprocating rubbing for a preset number of cycles before evaluation.
