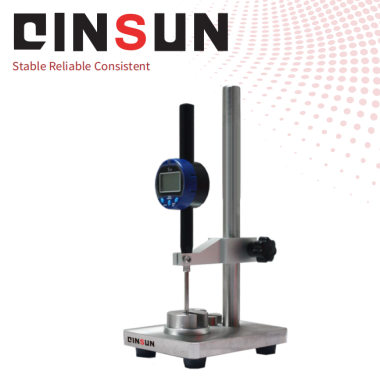

Fabric thickness tester
Application
The Fabric Thickness Tester is designed to accurately measure the thickness of a wide range of materials, including fabrics, leather, rubber, carpets, non-woven textiles, foams, and geotextiles. It is ideal for quality control, research and development, and production monitoring to ensure compliance with international thickness standards. The tester can also evaluate compression and elastic recovery of carpets and textile backings.
Standards
ISO 1765:1986: Textiles — Determination of thickness
ISO 1766:1999: Textile materials — Determination of thickness under specified pressure
BS 4051:1987 (1996): British Standard for textile thickness testing
BS 4098:1975 (1996): Textile measurement standard
BS 5808:1991 (1996): Textile and carpet thickness evaluation
Wools of New Zealand Test Method 142: Carpet and textile thickness measurement
Parameters
| Parameter | Specification |
|---|---|
| Measuring Range | 0–10 mm (standard), 0–25 mm optional |
| Resolution | 0.01 mm |
| Accuracy | ±0.02 mm |
| Depth of Jaws | 40 mm |
| Display | 4-digit LCD, 8 mm tall digits |
| Presser Foot Pressure | 2.5, 10, 20, 50, 100, 150, 200 kPa (depending on application) |
| Dimensions | W300 × D400 × H550 mm |
| Weight | 230 g (net), 800 g (gross) |
| Power | 1 × CR2032 3V lithium coin cell |
| PC Connectivity | RS232 connection cable (optional) |
Included Accessories:
Presser foot, reference plate, bell, and weights for carpets and primers
RS232 download software for data analysis
Advantages
Wide Range of Applications: Suitable for fabrics, leather, rubber, carpets, non-woven textiles, foams, and geotextiles.
Precision Measurement: High-resolution digital display with ±0.02 mm accuracy ensures reliable results.
Adjustable Pressure: Can provide pressures from 2 to 200 kPa to meet ISO, BS, and application-specific requirements.
Flexible Sample Handling: Standard gauge measures samples up to 25 mm thick, with options for thicker samples.
Digital Output: Automatic zero return and LCD display for easy reading; optional RS232 interface allows connection to PC for data logging.
Easy to Use: Compact, user-friendly design with clear digital display.
FAQ
1.What is a Fabric Thickness Tester?
A device that accurately measures the thickness of fabrics, leather, rubber, carpets, and other sheet materials, under controlled pressure.
2.Which materials can it measure?
Fabrics, leather, rubber, carpets, non-woven textiles, foams, geotextiles, and similar flexible materials.
3.Why is thickness measurement important?
Thickness is a critical property affecting durability, texture, and performance of textiles and carpets. Accurate measurement ensures compliance with product specifications and international standards.
4.How does it work?
The sample is placed under a presser foot, and a controlled weight applies pressure. The tester measures the distance between the presser foot and reference plate, displaying the result digitally.
5.Can it test different pressures?
Yes, the presser foot can be used with adjustable weights to apply pressures ranging from 2.5 to 200 kPa, depending on the material and standard.
6.Can it measure thick samples?
The standard gauge measures up to 25 mm; optional models allow for thicker samples.
7.Does it support digital data output?
Yes, it can connect to a PC via RS232 cable for data download and analysis.
