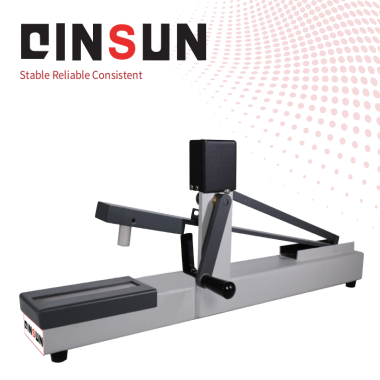

Rubbing Color Fastness Tester
Application
The Rubbing Color Fastness Tester is a widely used instrument in the textile industry to evaluate the color fastness of fabrics under dry and wet rubbing conditions. It is applicable for testing:
Textiles and knitwear
Leather products
Electroplated surfaces
Printed materials
The instrument simulates real-life abrasion to determine the degree of color transfer from the sample to a standard white cloth, providing critical data for quality control, R&D, and compliance testing.
Standards
BS 1006 D02 – British Standard Method for Determination of Colour Fastness to Rubbing
ISO 105 D02 X12 – Textiles – Tests for Colour Fastness – Part D02: Colour Fastness to Rubbing
AATCC 8 165 – American Association of Textile Chemists and Colorists: Colourfastness to Crocking
GB/T 3920 – Chinese National Standard: Test Method for Colour Fastness to Rubbing of Textiles
NEXT TM6 M&S C8 C8A – Marks & Spencer Technical Method for Rubbing Fastness of Fabrics
Technical Parameters
| Parameter | Specification |
|---|---|
| Maximum Head Travel | 104 mm |
| Head Pressure | 9 N ±10% |
| Test Head Diameter | 16 mm |
| Counter Range | 1–99,999 cycles |
| Instrument Dimensions | 700 × 240 × 340 mm (W × D × H) |
| Instrument Weight | 15 kg |
Product Advantages
Versatile Testing: Supports both dry and wet friction tests with consistent pressure and travel.
Accurate Evaluation: Equipped with standard small white cloth and spring clamp to ensure precise contact and uniform rubbing.
User-Friendly Operation: Crank arm and digital counter allow easy operation, with automatic stop at preset cycles.
Standard-Compliant Accessories: Includes friction cloth clamping clips, calibration fabrics, standard white friction cloths, and grey cards for ISO/AATCC/BS evaluation.
Reliable and Durable: Stainless steel sample holders and high-quality test head ensure long-term accuracy and consistent results.
Comprehensive Reporting: Supports separate reporting for dry and wet rubbing fastness results, enhancing quality control workflows.
