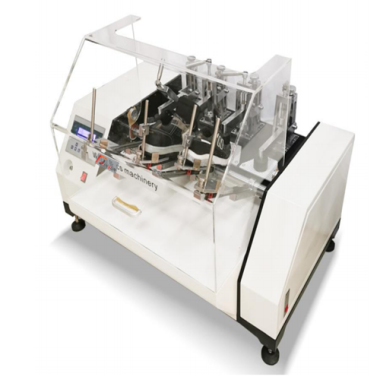

Footwear Flexing Tester
1. Product Introduction & Applications
The Footwear Flexing Tester is designed to simulate repeated bending and flexing of finished shoes under controlled conditions. The device drives the shoe in a zigzag motion, with angles and rates adjusted to match the shoe type. After completing the specified number of flexing cycles, the tester evaluates the integrity and durability of the shoe’s flexing zones.
Applications:
Testing sports shoes, casual shoes, work shoes, and other finished footwear
Evaluating flexing resistance and folding durability
Assessing damage or cracking after repeated bending cycles
Quality control and R&D for footwear manufacturers
Simulating long-term walking and usage conditions
2. Conformity Standards
SATRA TM92 — Test method for flexing resistance of finished footwear
Additional national and international footwear durability standards
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Test Capacity | Two pairs of shoes simultaneously |
| Zigzag Angle | Adjustable from 5° to 90° |
| Flexing Speed | 5–150 cycles per minute (adjustable, with display) |
| Permissible Sample Length | 150–400 mm |
| Volume | 105 × 83 × 78 cm |
| Motor Type | Variable frequency motor |
| Cycle Counter | LCD display, 0–9999.999 |
| Power Supply | AC 220V, 10A |
4. Product Advantages
Measures Finished Shoe Durability: Provides a realistic assessment of flexing resistance under simulated walking conditions.
Standard Compliant: Designed to meet SATRA TM92 and other recognized standards for footwear flexing resistance.
Multiple Testing Stations: Allows simultaneous testing of two pairs of shoes, improving efficiency.
Controllable Test Parameters: Precise adjustment of bending angles and flexing speed to suit different shoe types.
Quantitative Evaluation: Records cycles to damage or completion, providing objective durability data.
Suitable for Various Shoe Types: Sports, casual, and work footwear can all be tested.
Includes Cycle Counter: Integrated counter accurately records the number of flexing cycles performed.
Precise Speed Control: Variable frequency motor ensures stable and accurate testing speeds.
5. FAQ
Q1: How many shoes can be tested at once?
A1: Two pairs of shoes can be tested simultaneously.
Q2: What range of flexing angles is supported?
A2: The zigzag angle is adjustable from 5° to 90°, allowing testing for different shoe types.
Q3: Can the flexing speed be controlled?
A3: Yes, the speed is adjustable from 5 to 150 cycles per minute, with an LCD display for real-time monitoring.
Q4: Is this suitable for all types of shoes?
A4: Yes, it is compatible with sports shoes, casual shoes, and work shoes.
Q5: How are test results recorded?
A5: The integrated LCD counter provides a precise count of the number of flexing cycles completed.
