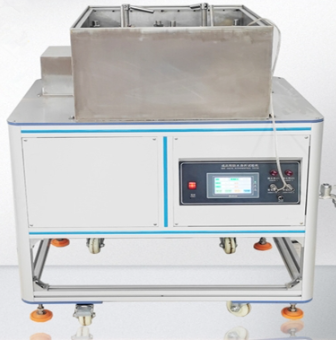

Footwear Dynamic Waterproof Tester
1. Product Introduction & Applications
The Footwear Dynamic Waterproof Tester is designed to evaluate the dynamic waterproof performance of finished shoes under realistic walking conditions. It measures:
Number of flex cycles until water penetration occurs
Extent of water penetration after a set number of cyclesThe tester simulates natural foot movement through repeated zigzag flexing in a water bath, providing objective data on waterproofing and permeability resistance.
Applications:
Quality control of finished shoes for outdoor, athletic, and safety footwear.
Research and development of waterproof materials and shoe designs.
Compliance testing for GB/T 16641 and SATRA TM77 waterproof standards.
Evaluation of footwear performance under dynamic flexing conditions.
2. Conformity Standards
The tester is designed in accordance with:
GB/T 16641 — Test method for dynamic waterproof performance of finished shoes
SATRA TM77 — Dynamic waterproof testing of finished footwearCompliance ensures reliable, repeatable, and standardized results for waterproof evaluation of shoes.
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Zigzag Angle | 5°–60° (adjustable) |
| Zigzag Speed | 5–150 cycles/min (adjustable) |
| Test Quantity | 2 finished shoes simultaneously |
| Cycle Counter | 0–999,999 (touchscreen display, programmable) |
| Machine Dimensions (W×D×H) | 73 × 82 × 108 cm |
| Power Supply | AC 220 V, 10 A |
Key Features:
Dynamic Simulation: Reproduces walking flex of the foot with adjustable angle and speed.
Multiple Test Stations: Can test a pair of shoes simultaneously.
Accurate Cycle Tracking: Touchscreen cycle counter for precise control.
Quantitative Evaluation: Provides data on both the number of cycles to water entry and the size of the penetration area.
Standard Compliance: Meets GB/T 16641 and SATRA TM77 for laboratory and quality control testing.
4. FAQ
Q1: What types of footwear can be tested?
A1: Applicable to a wide range of finished shoes, including athletic, outdoor, and safety footwear.
Q2: How does the tester simulate walking?
A2: The machine applies repeated zigzag flexing of the shoe in a water bath, mimicking the natural movement of the foot during walking.
Q3: Can multiple shoes be tested at the same time?
A3: Yes, two finished shoes can be tested simultaneously.
Q4: How is water penetration measured?
A4: The tester tracks the number of cycles until water enters the shoe and/or measures the area of penetration after a preset number of cycles.
Q5: Are the test parameters adjustable?
A5: Yes, the zigzag angle (5–60°) and speed (5–150 cycles/min) are fully adjustable to suit different shoe types and testing requirements.
