Safety Helmet Impact and Penetration Tester

Application

This Safety Helmet Impact and Penetration Tester is designed for testing the impact energy absorption performance and penetration resistance of safety helmets. It is used to evaluate the impact resistance and penetration resistance of safety helmets and protective headgear.

The machine adopts a self-developed PC-based control system that automatically raises the fixture to the preset height and displays the height in real time. The operation interface provides real-time display of the dynamic force Peak value, test curve, impact velocity, impact energy, and other test data. The instrument features high reliability and high measurement accuracy.

Main Unit Performance Features

(1) Servo motor drive system: Equipped with a servo motor, servo controller, and corresponding control units, providing long motor service life.

(2) Hollow-gear reduction system: Features low power consumption, low noise, high efficiency, and high reliability.

(3) Sino-Thai data acquisition card: Ensures stable and consistent testing accuracy over long-term operation.

(4) Direct-insertion transmission system: Provides high positioning accuracy, long service life, low friction, high-speed operation, and forward/reverse movement, significantly improving the machine's translation, displacement, and speed accuracy.

(5) Position limit function: Provides additional safety and convenience for tests with specific position restrictions.

(6) Wide measurement range: Suitable for testing according to standards from multiple countries and regions.

(7) Integrated design: The corresponding computer parameters can be modified and permanently saved according to the machine configuration, without requiring circuit adjustments.

(8) High-precision return positioning: Precisely returns to the original position regardless of the return speed, helping shorten testing time and improve work efficiency.

(9) Common parameter memory: Frequently used parameters, such as test speed, can be automatically retained, allowing the machine to start with the preset parameters for greater convenience.

(10) Flexible and convenient operation: Provides both continuous-motion and jog-motion modes, allowing users to select the appropriate operating mode according to different testing requirements or operating preferences.

(11) Multiple safety protection functions: Includes adjustable upper and lower limit protection, emergency stop protection, and other safety functions.

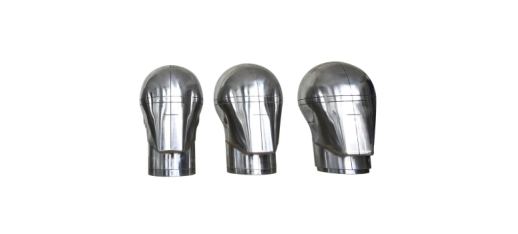

Full-Head Form

Standard: EN 960

Application: Mainly used for force impact testing according to EN 397.

Features:

Available sizes: D / G / K

Material: Magnesium alloy

Manufacturing: 100% CNC machined

Features

(1) Overall machine height: Approx. 2.3 m

(2) Dynamic force sensor for accurate impact force measurement

(3) Dedicated control software for automated test operation

(4) Self-developed control board for stable and reliable system control

(5) One set of self-developed infrared speed sensor for impact velocity measurement

(6) Real-time test curve display for monitoring test results

(7) Multilingual software: Simplified Chinese, Traditional Chinese, and English

(8) Data management functions: Data storage, historical data query, data export, and printing

(9) Multiple report formats: Word, Excel, PDF, and JPG

(10) Dedicated computer: One set included

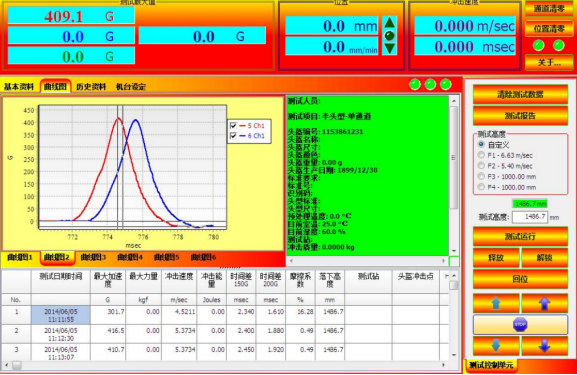

Software Description
