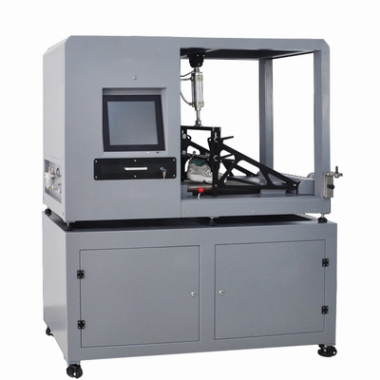

Slip Resistance Tester
1. Product Introduction & Applications
Slips and trips are among the most common causes of major injuries in workplaces, public areas, homes, and during sports activities. Poor slip resistance of footwear or flooring can lead to serious injuries, particularly for vulnerable groups such as children and the elderly.
The Slip Resistance Tester is designed to evaluate the slip resistance of footwear and floor materials under controlled laboratory conditions. It can measure:
Whole shoe slip performance on standardized test surfaces.
Floor material slip resistance using standardized sole materials.
Applications:
Quality control of footwear to ensure safety and comfort.
R&D for developing slip-resistant shoes and flooring materials.
Compliance testing for workplace, home, and public safety standards.
Evaluation of slip resistance on wet or smooth surfaces for vulnerable populations.
The tester uses a fast, accurate control and data acquisition system to ensure test force and speed meet the specified requirements, while providing intuitive visual display of results.
2. Conformity Standards
The Slip Resistance Tester complies with the following international and national standards:
ASTM F2913 — Standard test method for measuring the coefficient of friction for evaluation of slip performance of footwear and test surfaces using a whole shoe tester
BS EN 13287 — Personal protective equipment: Footwear — Test method for slip resistance
GB/T 28287 — Foot protection: Test method for footwear slip resistance
EN ISO 20344 — Personal protective equipment: Test methods for footwear
Satra TM144A — New method of non-slip test for footwear
CEN/TC 161 WG3 — European standard for slip resistance
Compliance ensures reliable, reproducible, and standardized test results for footwear and flooring evaluation.
3. Technical Parameters
| Item | Specification |
|---|---|
| Angle of Inclination | -40° to 40° (adjustable) |
| Maximum Load | Up to 600 N |
| Torque Speed | Up to 50 N within 0.2 s |
| Testing Speed | 0.3 m/s (other speeds can be set) |
| Time Accuracy | 0.1 s |
| Time Display Accuracy | 0.01 s |
| Measurement Parameters | Maximum friction, minimum friction, average friction, coefficient of friction |
| Power Supply | 220 V, 50 Hz |
| Dimensions (W×L×H) | 1200 × 700 × 1050 mm |
| Weight | 75 kg |
Key Features:
Fast sample clamping device for consistent and accurate setup.
Real-time load acquisition system and regulator indicator.
Pneumatic lifting control for specimens of varying thickness.
Support tools for irregular surfaces to ensure uniform load.
Adjustable inclination angle with dial-type display for precise control.
Real-time analysis software with Windows compatibility; automatically calculates friction coefficients and provides multi-path output.
4. FAQ
Q1: What can be tested with this machine?
A1: Whole shoes, individual soles, and floor materials using standardized or custom test surfaces.
Q2: How is slip resistance measured?
A2: The tester measures maximum friction, minimum friction, average friction, and coefficient of friction during the controlled test process.
Q3: Can the tester handle different angles and loads?
A3: Yes, the inclination is adjustable from -40° to 40°, and the load can reach up to 600 N, making it suitable for various testing scenarios.
Q4: Is the software compatible with standard PCs?
A4: Yes, the analysis and control software runs on Windows with multi-path data output for easy integration and reporting.
Q5: Can the testing speed be modified?
A5: Yes, the standard speed is 0.3 m/s, but other speeds can be set according to testing requirements.
