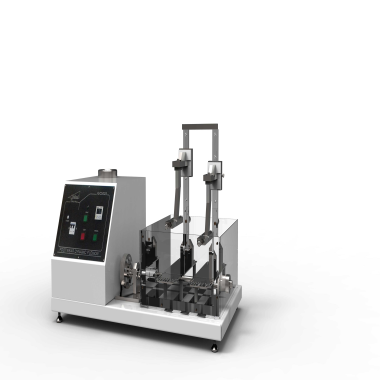

Footwear Flection Tester
The Footwear Flection Tester evaluates the flexing endurance of shoes in wet and dry conditions. It simulates natural walking motion to predict adhesive failure, sole cracking, and structural durability, making it ideal for footwear R&D, quality control, and production testing.
Available in single or twin stations, with adjustable flexing angles up to 50°. High-leg boots can be tested with extended water coverage.
Applications
Assess flexing durability of shoes and boots
Test adhesive strength and sole cracking
Evaluate performance in wet and dry conditions
Optimize sole structure and shoe design
Standards
| Standard | Description |
|---|---|
| SATRA TM92 | Flexing endurance in dry conditions |
| SATRA TM77 | Flexing endurance in wet conditions |
Key Features
Adjustable flexing angle up to 50°
Two artificial feet, adjustable in size and position
Digital cycle counter with reset and programmable cycles
Oscillating plate at 140 cycles/min
Wet testing with water container and pump
Safety guard with interlock
User-friendly control panel (Start, Stop, Manual, Reset)
Technical Parameters
| Item | Specification |
|---|---|
| Flexing Frequency | 140 cycles/min |
| Flexing Angle | Up to 50° |
| Test Stations | Single or twin |
| Counter | Digital, programmable |
| Wet Test | Water container with pump |
| Safety | Hinged guard with interlock |
Why Choose Us
Professional manufacturer of footwear testing instruments
Compliant with SATRA TM77/TM92
Adjustable for different shoe types and sizes
Reliable, robust, and easy to operate
Technical support and maintenance available
FAQ
1. Can it test high-leg boots?
Yes, water coverage can be adjusted to cover the forepart.
2. How is the flexing angle set?
Up to 50°, adjustable with zero start point.
3. Can multiple shoes be tested simultaneously?
Yes, twin station models test two pairs at once.
4. Does it stop automatically after set cycles?
Yes, the digital counter controls stop automatically.
5. Is it safe to operate?
Yes, all moving parts are covered with a safety interlock guard.
