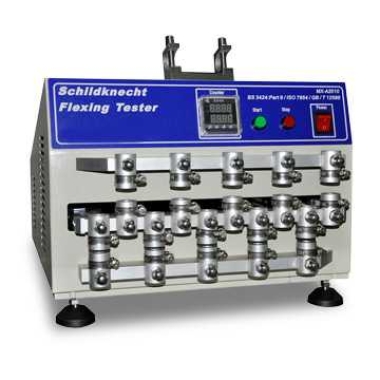

Schildknecht Flexing Tester
The Schildknecht Flexing Tester is a precision instrument designed to evaluate the flex durability of coated fabrics. By simulating continuous mechanical bending at high frequency, it helps manufacturers understand how coatings and substrates behave under repeated stress. This ensures reliable performance for a wide range of coated textiles used in automotive interiors, protective equipment, tarpaulins, and other industrial applications.
Product Functions & Applications
Operating at 500 oscillations per minute, the tester provides fast, repeatable results for long-term flexing fatigue. It accommodates up to 10 specimens at a time, making it highly efficient for laboratory research, quality control, and material comparison.
Typical applications include:
Assessing cracking resistance of coated fabrics
Evaluating the durability of PVC, PU, rubberized materials
Quality inspection for outdoor, industrial, and technical textiles
Testing new coating formulations during R&D
Routine QC in textile and material research centers
A resettable electronic counter accurately records the number of flexing cycles, ensuring consistent and traceable results.
Compliant Standards
| Standard Number | Standard Name |
|---|---|
| ISO 7854 | Rubber- or plastics-coated fabrics — Determination of resistance to damage by flexing |
| BS 3424 | Testing coated fabrics — Methods for determining flex resistance |
Technical Specifications
| Item | Specification |
|---|---|
| Flexing Counter Range | 1–999,999 cycles |
| Specimen Capacity | 10 samples |
| Oscillation Speed | 500 cycles/min |
| Power Supply | 220 V, 50 Hz |
| Machine Weight | 25 kg |
| Width | 360 mm |
| Depth | 490 mm |
| Height | 280 mm |
As a professional manufacturer of testing instruments and a complete laboratory testing solution provider, we supply not only reliable equipment like the Schildknecht Flexing Tester but also offer tailored testing setups to meet different industry requirements. Whether you are upgrading your laboratory, building a new QC system, or searching for customized testing solutions, our engineering team is ready to support you.
Frequently Asked Questions (FAQ)
1. What materials can be tested with the Schildknecht Flexing Tester?
The tester is suitable for a wide range of coated fabrics, including PVC-coated, PU-coated, rubberized fabrics, laminated textiles, and other flexible composite materials used in automotive, industrial, and protective applications.
2. How many specimens can be tested at the same time?
The machine accommodates 10 specimens simultaneously, allowing high testing efficiency and consistent comparative evaluation during R&D or quality control processes.
3. What is the typical test speed of the instrument?
The tester operates at a fixed oscillation rate of 500 flex cycles per minute, in accordance with ISO 7854 and BS 3424 test requirements.
4. Does the machine include an automatic cycle counter?
Yes. It is equipped with a resettable electronic counter that can record up to 999,999 cycles, ensuring accuracy during long-duration flexing tests.
5. Can the tester be customized for special test conditions?
Customization is available. As a professional testing instrument manufacturer, we can assist with tailored fixtures, extended test functions, or integrated testing solutions based on your specific material or laboratory needs. Feel free to contact us for customization options.
