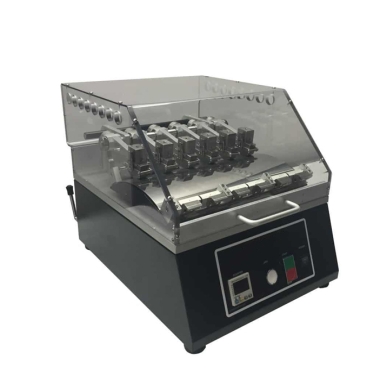

Gakushin Colorfastness Abrasion Tester
The Gakushin Colorfastness Abrasion Tester is a six-station rubbing test instrument designed to evaluate color transfer, crocking resistance, and abrasion durability of various materials. By simulating repeated rubbing conditions under controlled pressure and movement, the tester helps determine whether materials maintain color stability and surface performance after friction. It is widely used in textile, leather, automotive interior, plastic products, and laboratory quality evaluation applications.
Application
The Gakushin Colorfastness Abrasion Tester is a 6-station rubbing tester used for evaluating crocking, color transfer, and abrasion resistance of leather, fabric, vinyl, stitched seams, plastics, and other materials.
Each station is equipped with:
An adjustable zero-force balanced arm
A removable rub head and retainer, independently weighed
Spring-loaded clamps on the reciprocating table for secure specimen attachment
This allows six unique specimens to be tested simultaneously under controlled conditions. The tester is ideal for automotive, textile, leather, and research laboratories requiring reproducible colorfastness and abrasion testing under dry or wet conditions.
Standards
ISO 105-X19 – Textiles: Colorfastness to Rubbing
ISO 874 – Textiles: Colorfastness to Abrasion
JIS 0849 / 0862 / 10801 / 1084 TR 396B – Japanese Industrial Standards for textiles and leather
L0823 Section 3.2 – Automotive Interior Standards
Automotive OEM Standards: Honda, Mazda MES MN 405, Nissan Nes M0155, Subaru, Toyota TSL2106G, TSL5100G, TSL5101G, TR 396B
Internal QC / Laboratory Standards – Configurable per user requirements
Technical Specifications
| Item | Specification |
|---|---|
| Number of Stations | 6 independently operated |
| Cycle Rate | Designed 60 CPM, adjustable down to 30 CPM |
| Stroke Length | Standard 100 mm, adjustable to 120 mm (requires minor disassembly) |
| Rub Head Mass | Standard 200 g and 500 g; optional 300 g, 500 g, 800 g |
| Maximum Load per Station | Up to 1,800 g simultaneously |
| Clamp Type | Spring-loaded clamps for specimens, crocking cloths, or abradants |
| Control System | Programmable digital count-up controller with automatic stop; separate jog and test speed controls |
| Construction | Aluminum and solid stainless steel with powder coat and anodized finishes |
| Bearings | Precision needle bearings in the drive mechanism |
| Test Conditions | Wet or dry |
| Safety Features | Polycarbonate cover and base enclosure; double-acting safety switch disables operation when cover is open |
| Motors | High-quality brushless electric motor |
| Heat Management | Fan ventilation exhausts friction-generated heat |
| Optional Features | Flat testing surface, CE compliance |
| Maintenance | Maintenance-free design |
| Warranty | 1 year manufacturer’s warranty |
Features and Advantages
High Throughput: Six stations allow multiple specimens to be tested simultaneously.
Adjustable Loads and Rub Heads: Standard 200 g and 500 g rub heads with optional weights up to 1,800 g per station.
Flexible Stroke and Cycle Rate: Adjustable stroke length (100–120 mm) and cycle rate (30–60 CPM) for precise simulation of real-world abrasion.
Wet or Dry Testing: Supports distilled water or synthetic perspiration testing.
Durable Construction: Aluminum and stainless steel components with powder-coated/anodized finishes ensure long-lasting operation.
Precision Mechanics: Needle bearings provide smooth, repeatable motion.
Safety-Oriented Design: Polycarbonate cover, base enclosure, and double-acting safety switches protect operators.
Digital Control System: Programmable count-up controller, separate jog and speed controls for easy operation.
Maintenance-Free: Designed for long-term use with minimal upkeep.
Industry Compliance: Suitable for ISO, JIS, OEM automotive standards, and CE optional compliance.
FAQ
(1) What is the Gakushin Colorfastness Abrasion Tester used for?
We use this tester to evaluate whether materials maintain color stability and surface durability after repeated rubbing. It is commonly used for fabrics, leather, automotive interiors, plastics, and coated materials where color transfer and abrasion resistance are important quality indicators.
(2) What materials can be tested with this rubbing tester?
We apply this equipment for textile fabrics, leather products, vinyl materials, automotive interior components, plastic surfaces, and stitched materials. The tester helps compare different materials and finishing processes under controlled dry or wet rubbing conditions.
(3) What is the difference between dry and wet rubbing tests?
We perform dry rubbing tests to evaluate normal friction-related color transfer, while wet rubbing tests simulate conditions where moisture affects material performance. The selection depends on the product application and the requirements of the applicable testing standard.
(4) Which industries commonly use a Gakushin Colorfastness Abrasion Tester?
We supply this type of tester mainly for textile manufacturers, automotive interior suppliers, leather product companies, material research centers, and third-party laboratories. These industries use test results for quality control, material selection, and product verification.
(5) How should customers select a suitable colorfastness abrasion tester?
We recommend that customers confirm the required testing standards, material type, rubbing load, test method, and number of stations needed for laboratory efficiency. Our QINSUN engineers can provide professional technical guidance and detailed parameters to help customers select suitable testing equipment.
