G505-filter Medium Tester

G505-filter Medium Tester

I'm Online Chat Now


G505 Filter medium tester is used to simulate the use procedure of the filter bag in the bag filter, and the filter material is aged according to the standard procedure (usually it takes many days), the"characteristic filtration index" (including pressure drop curve, residual pressure drop, filtration/cleaning cycle, residual dust layer quality, and dust quality of penetrating filter material samples) of the specific concentration of aerosol penetrating before and after the filter material can be tested after the performance of the filter material tends to be stable. The results of the indicator can be used to evaluate the filtration efficiency of the filter material during actual use.


G505 Filter medium tester

1.The filtering quality tester for filter medium is a test instrument designed to evaluate the dynamic and static dust removal efficiency and filtration performance of the filter material for the bag filter and the filter bag. By simulating the actual situation of the filter material in the actual use process, the operational performance evaluation parameters of the filter material can be quickly obtained,  which can accurately evaluate the quality, performance, and life of the filter material.

2.  Through  the  comprehensive  performance  test  of  filter material cleaning, aging, stability process resistance, efficiency to evaluate the filter material filtration performance, which is applicable for quality control of filter material industrialized production  enterprises,  product  performance  verification  of filter   material   research&development   enterprises,   testing service of filter material filtration performance by third-party testing  organizations  and  quality  supervision  of  marketized products by environmental protection organizations.

Standards compliant

ISO 11057 Air quality - Test method for filtration performance of cleanable filtration medium;
ASTM D6830 Test method for testing pressure drop and filtration performance of cleanable filtration medium;
VDI/DIN3926 Standard test method for evaluating cleanable filter medium;
GB/T 6719 Technical requirements for bag filters;
JIS Z8909-1 Test methods for filter media for dust collection - Part 1 - Filter efficiency.


G505 Filter medium tester 5 Several Major Features

1. Imported parts

Imported partsThe pressure sensors, concentration sensors, differential pressure sensors,temperature sensors and humidity sensors, mass flow controllers, vacuum pumps, particle size analyzers and other important components of the tester are all using imported accessories, with high precision, stable and reliable performance, good repeatability, and accurate test data.



2. High degree of automation

High degree of automationThe pressure sensors, concentration sensors, differential pressure sensors,temperature sensors and humidity sensors, mass flow controllers, vacuum pumps, particle size analyzers and other important components of the tester are all using imported accessories, with high precision, stable and reliable performance, good repeatability, and accurate test data.



3. Automatic feeding device

Automatic feeding deviceThe pressure sensors, concentration sensors, differential pressure sensors,temperature sensors and humidity sensors, mass flow controllers, vacuum pumps, particle size analyzers and other important components of the tester are all using imported accessories, with high precision, stable and reliable performance, good repeatability, and accurate test data.



4. Automatic clamping device

Automatic clamping deviceThe pressure sensors, concentration sensors, differential pressure sensors,temperature sensors and humidity sensors, mass flow controllers, vacuum pumps, particle size analyzers and other important components of the tester are all using imported accessories, with high precision, stable and reliable performance, good repeatability, and accurate test data.



5. Transparent observable window

Transparent observable windowThe pressure sensors, concentration sensors, differential pressure sensors,temperature sensors and humidity sensors, mass flow controllers, vacuum pumps, particle size analyzers and other important components of the tester are all using imported accessories, with high precision, stable and reliable performance, good repeatability, and accurate test data.

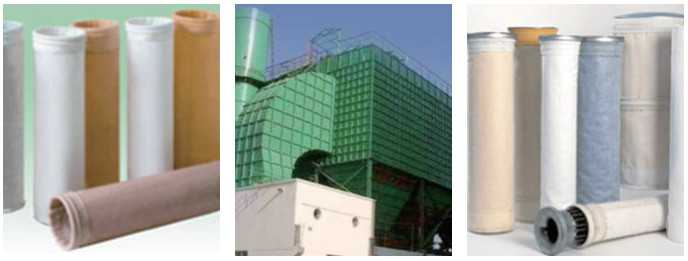

  • Field Application

Field Application
G505 Filter medium tester, t is applicable for quality control of filter material industrial production enterprises and products performance verification of filter material research&development enterprises.

Field Application
It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.


  • Configuration parameter

Configuration parameter
Configuration parameter
Configuration parameter


  • Optional Accessories

Optional Accessories
Optional Accessories
Optional Accessories



  • Configuration parameter

Configuration parameter
Configuration parameter
Configuration parameter


Configuration parameter


Technical Parameters
Test mode: automatic Sample diameter:150mm
Dust emission: 42mg-420 g/h(reference dust, SAE, Fine A2 Dust) Filter material surface wind speed: 0.5-5 m/min<±2%
Flow rate:5-10 m³/h±1% Sample clamping method: pneumatic clamping
Gas storage tank:4.5 L Distance between nozzle and filter material
sample:840mm±70mm
Dust concentration: 0.8-100 g/m3, accuracy <±7%
Dust generator weighing unit: 50kg loading unit, accuracy 1g Flow rate range:0-6 m3/h
Dirty gas pipeline temperature: temperature range 0-100℃,
accuracy ± 0.3℃
Filter material pressure drop sensor:0-2500Pa±0.5%
Reaction time:2.5s
Dirty gas pipeline humidity: temperature range 0-100RH,
accuracy ± 4%,
Repeated accuracy:0.1%
Long-term stability:0.5%FSD/year
Sensor pressure:0-1100mbar±0.5% Maximum temperature difference range:
1% of FS 0℃ to 50℃
Flow rate::0-12 m3/h±1%
Concentration sensor(:0~10)g/m3 Compressed air tank volume:≥4 .5L
Test content: it tests the dust concentration and dispersion. Tank pressure: 0-0.7 MPa ± 3%; (it can be adjusted freely)
Luminance meter: the integration period is less than 10 seconds, and the laser energy is 1mW. Wavelength 650nm±10nm
Valve opening time: 50ms-250 ms (it can be adjusted freely)
Weight:700kg

Test dust:0.25μm-32μm

Power supply:380V 50Hz
Cyclone combination:PM1/PM2.5/PM10
Appearance size:2400x1200x3500
Test sample diameter:140mm

Note:QINSUN is very in place for textile testing and quality control,we have our own textile testing lab. Our textile testing equipment and testing methods are in the leading position in the industry. We have passed the textile testing certification and iso textile testing standards issued by a number of testing,We can provide textile testing equipment pdf manual. Sufficient inventory, big discounts, limited time promotion, Order now!
