Top 10 Geotextile Testing Instruments

Geotextiles are widely used in civil engineering, road construction, erosion control, and drainage projects. Their performance is critical for soil stabilization, filtration, separation, and reinforcement. Specialized testing instruments evaluate mechanical strength, permeability, filtration, durability, and environmental resistance of geotextiles. These tests ensure geotextiles meet international standards and project requirements. Below is a detailed overview of the top 10 geotextile testing instruments, including applications and standard compliance.

1. Geotextile Tensile Strength Tester

Function & Applications:

Measures tensile strength, elongation, and modulus of geotextile fabrics under controlled load. Essential for evaluating geotextile strength in reinforcement and soil stabilization applications.

Application Scenarios:

Road and railway construction

Retaining walls and embankments

Reinforced soil structures

Standards Compliance:

ASTM D4595

ISO 10319

EN ISO 10319

2. Puncture & Bursting Strength Tester

Function & Applications:

Evaluates geotextile resistance to point loading or pressure, including puncture and bursting performance.

Application Scenarios:

Drainage systems

Landfill liners

Soil reinforcement under heavy loads

Standards Compliance:

ASTM D3787 (Bursting strength)

EN ISO 13938

ISO 12236

3. CBR Puncture Resistance Tester

Function & Applications:

Simulates penetration by a cone under controlled conditions to test geotextile resistance, critical for subgrade and foundation protection.

Application Scenarios:

Road base reinforcement

Railway ballast protection

Soil stabilization

Standards Compliance:

ASTM D6241

ISO 12236

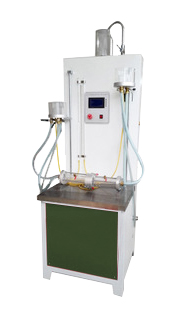

4. Hydraulic Permeability Tester

Function & Applications:

Measures water flow through geotextiles under constant or variable head, evaluating filtration and drainage performance.

Application Scenarios:

Drainage layers in roads and embankments

Erosion control fabrics

Landfill leachate filtration

Standards Compliance:

ASTM D4491

ISO 11058

EN ISO 11058

5. Geotextile Trapezoidal Tear Tester

Function & Applications:

Assesses tear resistance of geotextiles under controlled load, simulating mechanical stresses in field conditions.

Application Scenarios:

Soil separation layers

Reinforced slopes and embankments

Erosion control mats

Standards Compliance:

ASTM D4533

ISO 13433

6. Geotextile Apparent Opening Size (AOS) Tester

Function & Applications:

Determines the effective opening size of geotextiles for filtration applications, ensuring soil retention while allowing water flow.

Application Scenarios:

Road base drainage layers

Landfill liners

Erosion control blankets

Standards Compliance:

ASTM D4751

EN ISO 12956

7. Geotextile Mullen Burst Tester

Function & Applications:

Measures multi-directional bursting strength, simulating hydraulic and mechanical stress conditions.

Application Scenarios:

Reinforced soil structures

Road subgrade protection

Landfill and pond liners

Standards Compliance:

ASTM D3787

ISO 13938-1

8. Geotextile Flexural Fatigue Tester

Function & Applications:

Tests the durability of geotextiles under repeated bending or flexing, evaluating long-term field performance.

Application Scenarios:

Reinforced embankments

Erosion control mats

Geomembrane protection layers

Standards Compliance:

ASTM D5848

ISO 12236

9. Geotextile UV Weathering Tester

Function & Applications:

Simulates long-term UV exposure and environmental aging to assess color stability, strength retention, and durability.

Application Scenarios:

Exposed geotextiles for embankments and slopes

Erosion control fabrics

Outdoor geosynthetic products

Standards Compliance:

ASTM D4355

ISO 4892

10. Dynamic Permeability & Filtration Tester

Function & Applications:

Measures flow rates under fluctuating hydraulic conditions to evaluate geotextile performance in field drainage applications.

Application Scenarios:

Landfill leachate management

Subsurface drainage systems

Road and railway drainage layers

Standards Compliance:

ASTM D4491

ISO 12958

EN ISO 12958

Professional Geotextile Testing Solutions

We specialize in manufacturing geotextile testing instruments covering tensile, puncture, tear, burst, filtration, permeability, fatigue, and UV durability tests. Our instruments comply with ASTM, ISO, and EN standards and are widely used by geosynthetic manufacturers, research laboratories, and civil engineering contractors.
