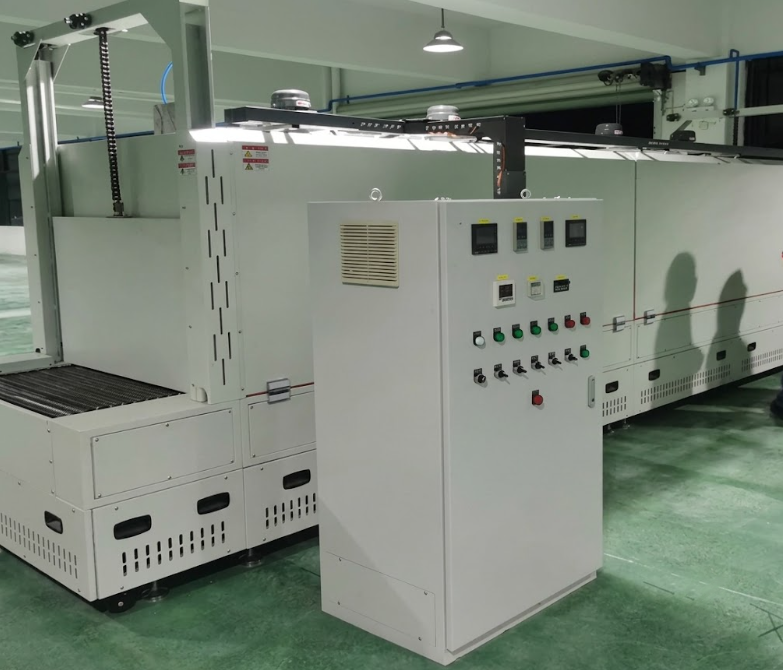

Dual-Lane Tunnel Oven
The dual-lane tunnel oven is a continuous drying and curing system designed for high-efficiency production after dispensing processes. It is developed in accordance with GB2423.2-1989 and GB/T11158-1988 standards. The system integrates heating, airflow, filtration, and conveying, providing stable temperature control, clean processing conditions, and increased throughput through multi-lane operation.
Applications
Drying after dispensing for 3C electronic housings
LCD module processing
CMOS IC packaging processes
Medical and laboratory applications
General adhesive curing and low-temperature baking processes
Technical Specifications
| Parameter | Specification |
|---|---|
| Cleanliness Level | Class 1000 (FED-STD 209E compliant) |
| Temperature Range | 50°C – 220°C |
| Temperature Uniformity | ±2°C (empty chamber) |
| Temperature Accuracy | ±1°C (empty chamber) |
| Conveyor System | Dual-lane (customizable multi-lane tracks) |
| Heating Method | Sheathed electric heaters |
| Airflow Direction | Horizontal airflow (left to right) |
| Temperature Control | PID controller + SSR output |
| Temperature Sensor | Armored K-type thermocouple |
| Data Recording | 6-channel paper recorder |
Features
Dual-Lane Design: Increases production capacity while maintaining consistent process conditions
Cleanroom Compatibility: Class 1000 design with particle filtration system
High Temperature Accuracy: Precise PID control ensures ±1°C accuracy
Uniform Heating: Optimized horizontal airflow ensures even temperature distribution
Flexible Conveyor Configuration: Multi-lane tracks customizable based on fixture size
Robust Structure: SUS304 stainless steel inner chamber with full welding reduces contamination
Energy-efficient Insulation: High-density insulation minimizes heat loss
Advanced Monitoring System: Real-time temperature recording with data printing capability
User-friendly Operation: Touchscreen control system with intuitive interface
Comprehensive Safety Protection: Includes emergency stop, over-temperature, overload, short circuit, and leakage protection
