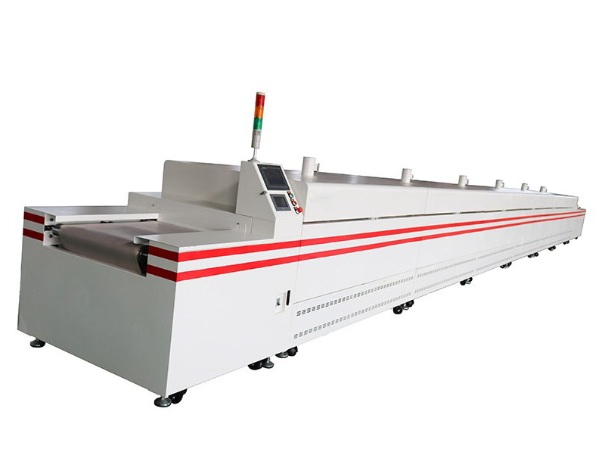

Gas-Fired Tunnel Oven
The Gas-Fired Tunnel Oven is a continuous industrial heating system that uses gas as the heat source. It is widely used for drying, curing, and heat treatment processes in industries such as metal products, insulation materials, coating applications, and new energy batteries. With a modular structure, automatic conveying system, and efficient combustion heating technology, the oven provides stable operation and is suitable for large-scale continuous production.
Application
The Gas-Fired Tunnel Oven is widely used in industrial production processes requiring continuous heating treatment, including:
(1) Drying and curing of metal products with surface coatings.
(2) Heating and forming processes for insulation materials.
(3) Curing of coated materials, adhesives, and surface treatment products.
(4) Drying and thermal processing of new energy battery materials.
(5) Continuous heating treatment of industrial components.
Standards
The equipment design can comply with relevant industrial heating equipment and safety requirements:
(1) GB/T 30435 Energy-saving Monitoring Methods for Industrial Electric Heating Equipment
(2) GB/T 10067 Basic Technical Requirements for Industrial Electric Heating Equipment
(3) Relevant industrial gas equipment safety regulations and manufacturing standards
Parameters
| Item | Specification |
|---|---|
| Heating Source | Gas heating |
| Structure | Modular tunnel oven design |
| Oven Line Size | 18000 × 3000 × 3300 mm |
| Electrical Control Cabinet Size | 1200 × 500 × 1800 mm |
| Heating System | 150,000 kcal burner |
| Temperature Range | RT ~ +250℃ |
| Heat Exchange Method | Multiple circulation heat exchange |
| Conveying System | Automatic conveying platform |
| Main Components | Transfer platforms, conveying system, curing oven, material carts |
| Material Carts | 20 sets |
Features
(1) Gas heating design, suitable for high-volume continuous production.
(2) Modular structure for convenient installation and transportation.
(3) Automatic conveying system improves production efficiency.
(4) Suitable for various industrial drying and curing applications.
(5) Easy maintenance and stable long-term operation.
(6) Flexible structure design to meet different production requirements.
