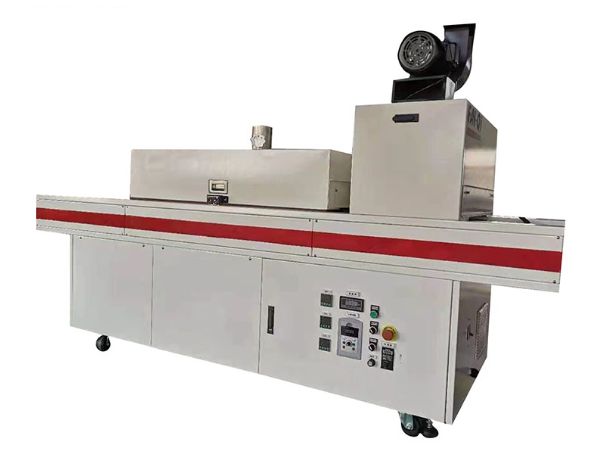

Electronic Product Tunnel Oven
The Electronic Product Tunnel Oven is a continuous heating system designed for precision drying and thermal processing of electronic components. It adopts a conveyor-based tunnel structure with controlled hot air circulation, ensuring stable and consistent heating conditions required in electronic manufacturing processes.
Application
This tunnel oven is suitable for industries with strict temperature control requirements, including:
(1) Electronic components drying and curing.
(2) PCB board processing and heat treatment.
(3) Semiconductor and precision parts heating.
(4) Adhesive curing in electronic assembly.
(5) General electronic product production lines.
Standards
The equipment can be designed in accordance with relevant industrial and safety standards:
(1) GB/T 10067 Industrial Heating Equipment Technical Requirements
(2) GB 5226 Electrical Safety of Machinery
(3) General electronic manufacturing equipment standards
Parameters
| Item | Specification |
|---|---|
| Equipment Type | Electronic Product Tunnel Oven |
| Inner Chamber Size | Heating length 10000 mm × Height 500 mm × Width 900 mm |
| External Size | Approx. L20000 × H1250 × W1200 mm |
| Loading/Unloading Section | Approx. 10000 mm |
| Temperature Range | 55 ~ 280℃ |
| Temperature Stability | ±1℃ |
| Temperature Uniformity | ±3℃ (no-load) |
| Heating Rate | ≥10℃/min |
| Air Circulation | Three-side circulation, top suction |
| Air Volume | ≥1600 m³/h per unit |
| Power Supply | 380V, 50Hz, three-phase five-wire |
| Total Power | 110KW |
Features
(1) Designed for electronic products with stable heating performance.
(2) Continuous conveyor system supports automated production.
(3) Multi-direction air circulation improves process consistency.
(4) Suitable for precision drying and curing applications.
(5) Reliable operation for long production cycles.
(6) Easy integration into electronic manufacturing lines.
