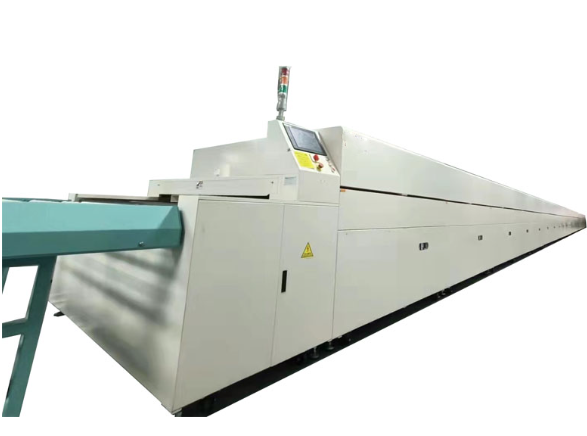

Clean Tunnel Oven G-C600
The Clean Tunnel Oven G-C600 is a continuous conveyor heating system designed for clean production environments requiring stable temperature control and low particle generation. The equipment adopts a SUS stainless steel belt conveyor, forced hot air circulation structure, and multi-function temperature monitoring system to achieve uniform heating and reliable process performance.
Equipped with an OMRON PID temperature controller, Siemens PLC control system, touchscreen interface, and six-channel temperature recording system, the G-C600 provides accurate temperature management and supports integration with automated production lines.
Application
The Clean Tunnel Oven G-C600 is suitable for continuous drying, curing, and heating processes in industries requiring clean and stable thermal treatment, including:
3C electronics industry: drying and curing of electronic components, precision parts, and housings.
PCB manufacturing: adhesive curing, ink drying, and electronic material baking.
LCD and semiconductor-related applications: clean heating and drying processes.
Medical and precision products: thermal processing requiring contamination control.
Industrial manufacturing: continuous drying and curing of various precision products.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | G-C600 |
| Equipment Type | Clean Tunnel Oven |
| Power Supply | AC380V, 3 Phase, 50Hz |
| Exhaust Capacity | Max. 10.0 m³/min |
| Exhaust Pipe | Ø100mm × 6 pcs (external connection provided by customer) |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Standard Working Speed | 0.8 m/min |
| Conveyor Type | SUS stainless steel belt conveyor |
| Heating Zone Length | 1500mm per zone |
| Number of Heating Zones | 2 zones |
| Total Heating Length | 3000mm |
| Temperature Range | 40℃–200℃ |
| Maximum Temperature | 200℃ |
| Recommended Operating Temperature | Below 160℃ |
| Temperature Uniformity | ≤ ±3℃ (excluding inlet and outlet areas) |
| External Material | SS41 steel plate with anti-rust treatment and high-temperature powder coating |
| Insulation Material | 128K high-density aluminum silicate insulation cotton |
| Heating Element | Medium-wave quartz electric heating tube |
| Air Circulation | Hot air circulation from top to bottom |
| Temperature Controller | OMRON PID temperature controller |
| Temperature Control Accuracy | ±0.3% FS |
| Temperature Monitoring | Six-channel temperature recorder with USB data export |
| Conveyor Belt Width | 1010mm |
| Conveyor Belt Material | PTFE conveyor belt, smooth surface, product-friendly design |
| Control System | Siemens PLC + Siemens touchscreen |
| MES Connection | Supported |
| External Surface Temperature | ≤45℃ (excluding inlet, outlet, and exhaust areas) |
| Cleanliness Level | Class 100 |
| Safety Protection | Phase sequence protection, overload protection, emergency stop, over-temperature protection, control circuit protection |
Features
(1) Clean Production Design
The inner chamber adopts full argon arc welding, and stainless steel components are used to reduce dust generation during operation.
(2) Uniform Heating Performance
The optimized hot air circulation system ensures stable temperature distribution and improves heating consistency.
(3) Stable Conveyor Operation
The SUS stainless steel belt conveyor provides smooth product transportation without vibration, jamming, contamination, or surface damage.
(4) Precise Temperature Control
The OMRON PID temperature control system provides accurate temperature regulation, while the six-channel recorder enables real-time temperature monitoring.
(5) Efficient Thermal Insulation
The 128K high-density insulation material reduces heat loss, improves energy efficiency, and keeps the external surface temperature low.
(6) Automation Compatibility
The Siemens PLC and touchscreen control system support integration with MES systems for automated production management.
(7) Flexible Configuration
Heating zones, conveyor specifications, and equipment dimensions can be customized according to production requirements.
