Manikin Coughing System (Cough Simulator)

The Manikin Coughing System (Cough Simulator) is a high-precision experimental device designed to operate with a thermal manikin or a manikin head, or as an independent unit. It is used to simulate realistic human coughing conditions. By adjusting cough airflow rate, initial jet velocity, pressure, and duration, you can study aerosol particle dispersion and transmission under indoor or confined-space airflow conditions. The system provides reliable experimental data for indoor air quality studies, pollutant exposure assessment, and airborne infectious disease research.

Application

HVAC research and education, including indoor air quality evaluation, breathing and coughing exposure risk assessment in confined spaces, and cross-infection risk analysis of airborne diseases;

Medical and public health research, including simulation of pathogen-laden cough particle dispersion and airborne disease studies;

Occupational hygiene assessment, such as exposure risk evaluation of dust, PM2.5, and gaseous pollutants in workshops and factories;

Human exposure risk assessment in aerospace cabins and confined environments, including civil and military aircraft, helicopters, space stations, re-entry capsules, submarines, and deep-sea systems;

Exposure assessment and air-conditioning system optimization in vehicles and transportation systems, including buses, passenger cars, new energy vehicles, high-speed trains, subways, ships, and submarines;

Public health and military medical research in high-occupancy or densely populated environments.

Standards

GB/T 14296-2005 — Indoor Air Quality Evaluation Methods (Air Pollutant Exposure)

GB/T 18883-2022 — Indoor Air Quality Standard

ISO 7730:2005 — Ergonomics of the Thermal Environment — Analytical Determination and Interpretation of Thermal Comfort

ASTM F1291-2020 — Test Methods for Breathing and Coughing Exposure Measurement

Product Specifications

Features

Accurate simulation of human coughing pressure, initial airflow velocity, and duration with wide adjustable ranges;

Switchable nasal or oral coughing modes to meet different experimental requirements;

Modular design supporting standalone use or integration with a thermal manikin or manikin head;

Aerosol output compatible with external sampling devices, suitable for pathogen or particle research;

Built-in over-pressure protection and short-circuit protection for safe operation;

Mobile platform with lockable caster wheels for flexible laboratory deployment.

Accessories

Test Principle

The system uses pneumatic driving to simulate pressure and flow variations during human coughing, generating a high-velocity airflow jet that carries aerosol particles into the surrounding environment. When combined with the thermal plume generated by a thermal manikin, you can reproduce airflow movement, particle dispersion, and interaction with ambient air under coughing conditions. This allows quantitative analysis of human exposure and airborne transmission behavior in indoor environments.

Operation Instructions

Ensure the ambient temperature is 10–40 °C and relative humidity is 15–95%;

Use AC 220 V / 50 Hz power supply and confirm total power does not exceed 250 W;

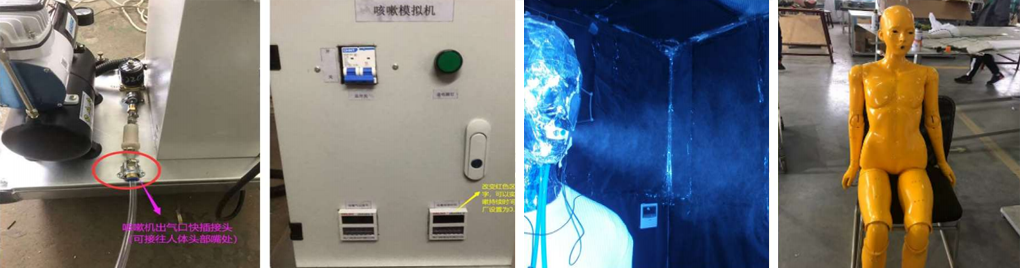

Connect the coughing system to the thermal manikin or manikin head using quick-connect interfaces and check cable integrity;

Set coughing parameters, including pressure, initial velocity, duration, and outlet mode, with PID parameters automatically tuned;

Switch between nasal and oral coughing modes during testing as required;

When using an aerosol container, ensure all connections are secure to prevent leakage;

After testing, switch off the system, disconnect power, and clean pipelines and interfaces.

Test Procedure

Install the coughing system and connect it to the thermal manikin or manikin head;

Power on the control system and set coughing pressure, initial velocity, duration, and outlet mode;

Check that the aerosol container and pipelines are securely connected;

Start the experiment and record coughing pressure, airflow velocity, and particle distribution data in real time;

After completion, shut down the system, save test data, and clean pipelines and the aerosol container.

FAQ

1. What is this product?

It is a manikin coughing system designed to simulate realistic human coughing behavior under controlled laboratory conditions.

2. What is this product used for?

You use it to study aerosol dispersion, pollutant exposure, and airborne disease transmission caused by coughing in indoor or confined spaces.

3. Why is this product important?

It provides repeatable and controllable coughing simulations, allowing exposure and transmission studies without relying on human subjects.

4. What industries is this product suitable for?

It is suitable for HVAC research, public health, occupational hygiene, aerospace, transportation, medical research, and environmental testing.

5. What types of this product are available?

The system can be used independently or combined with a thermal manikin or manikin head, with configurable pressure, velocity, and coughing modes.
