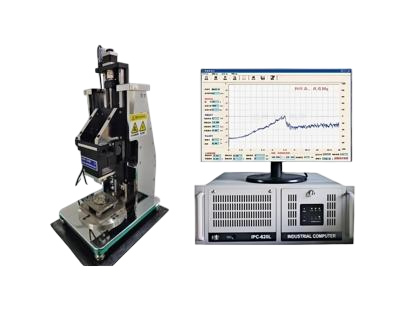

High-Speed Reciprocating Friction and Wear Tester (Model 2M)
The High-Speed Reciprocating Friction and Wear Tester (Model 2M) is designed for evaluating the friction and wear performance of materials and components. The instrument features a wide load range and adjustable sliding speed, allowing precise assessment of lubrication properties, surface treatments, and material performance under room temperature to 300°C. During testing, friction coefficient, wear depth, surface profile, wear volume, and wear resistance are measured in real time with graphical display and data storage. The tester is user-friendly, equipped with automatic stop protection, and provides high measurement accuracy.
Application
Friction and wear testing of metallic and non-metallic materials.
Evaluation of coatings, surface treatments, and composite material wear resistance.
Material lubrication property testing.
Reciprocating friction testing under high-temperature (up to 300°C) or ambient conditions.
Laboratory research and industrial quality control.
Standards
GB/T 3960-2016 Plastics – Determination of Sliding Wear Properties
ASTM G99 Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus
ASTM G133 Standard Test Method for Linearly Reciprocating Pin-on-Flat Sliding Wear
ISO 20502 Coating Scratch Test
DIN 50324 Friction and Wear Test Standard
Parameters
| Parameter | Specification |
|---|---|
| Test Load Range | 30–1000 g (weight loading), 10–200 N (automatic); accuracy 0.2% F.S. |
| Reciprocating Frequency | 0.1–45 Hz, adjustable |
| Reciprocating Stroke | 0.5–25 mm, adjustable according to frequency |
| Sample Heating Furnace Temp. | Room temperature – 300°C (sample diameter Φ15–40 mm) |
| Test Load in Furnace | 0.3–80 N |
| Friction Force Measurement | ≤100 N |
| Wear Depth Measurement | ±0.5 mm |
| Power Supply | 210–235 V, 50–60 Hz, 2500 W |
| Workbench Size | 1800 × 750 × 800 mm (user-supplied) |
Features
Wide load and adjustable frequency to accommodate various materials and component tests.
Testing possible at room temperature and high temperature up to 300°C.
Real-time measurement of friction coefficient, wear depth, wear volume, and surface profile with graphical display.
Automatic stop protection ensures safe operation.
User-friendly operation with high measurement accuracy, suitable for research and industrial quality control.
Accessories
| Accessory | Specification / Use |
|---|---|
| Reciprocating Friction Pair | Replaceable to accommodate different materials and sample sizes |
| Sample Heating Furnace | High-temperature testing, room temperature – 300°C |
| Data Acquisition Software | Real-time recording of friction force, wear depth, and friction coefficient |
| Power Cable | Input 210–235 V, 50–60 Hz |
| Weight Set | For manual loading of test force |
Test Principle
The tester applies adjustable load to a reciprocating friction pair on the sample surface. Friction force and friction coefficient are measured in real time. With the high-temperature furnace, tests can be conducted at various temperatures. Wear depth and wear volume are recorded by sensors. The computer automatically collects data and generates test curves to evaluate material wear resistance and tribological properties.
Operation Instructions
Ensure the sample is securely installed in the fixture; sample diameter in the furnace should be Φ15–40 mm.
Set sliding frequency, stroke, test load, and furnace temperature.
Start the test and monitor real-time friction force and wear depth.
Do not touch moving parts during testing to ensure safety.
Save data after testing, turn off the power, and clean the sample and fixture.
Experimental Flow
Install and secure the sample in the fixture; verify sample matches furnace dimensions.
Set reciprocating frequency, stroke, test load, and furnace temperature.
Start the test; the instrument runs automatically and records friction force, wear depth, and wear volume in real time.
Monitor friction curves and wear development during the experiment.
After testing, generate a report including friction coefficient, wear volume, and wear resistance analysis.
Clean the sample and prepare for the next test.
FAQ
1.What is this product?
A high-speed reciprocating friction and wear tester designed for evaluating materials and component surfaces.
2.What is this product used for?
Measuring friction coefficient, wear depth, wear volume, surface profile, and evaluating lubrication and wear resistance.
3.Why is this product important?
Provides precise and real-time data under a wide range of loads, frequencies, and temperatures for research and industrial quality control.
4.What industries is this product suitable for?
Materials science, surface coatings research, mechanical components testing, tribology laboratories, and industrial quality assurance.
5.What types of this product are available?
High-speed reciprocating testers with adjustable load, sliding frequency, stroke, and temperature control (up to 300°C).
