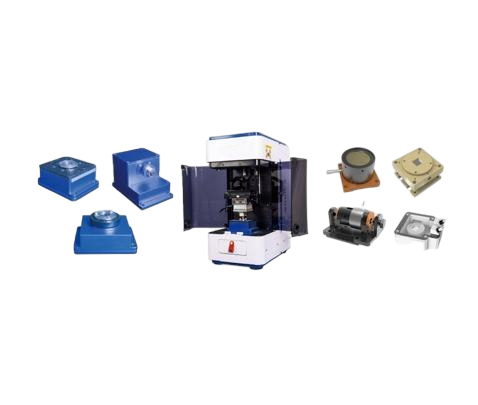

Multi-Functional Material Surface Friction Comprehensive Tester
The Multi-Functional Material Surface Friction Comprehensive Tester is a highly modular instrument designed to evaluate the friction and wear performance of material or component surfaces, including coatings and platings. The instrument integrates multiple testing modes, including rotational friction, reciprocating friction, ring-on-block friction, and high/low-temperature friction tests. Experiments can be conducted under different media conditions (e.g., lubricating oil, saline), achieving high-precision measurement of friction force, friction coefficient, wear volume, and wear scar morphology. Its modular design allows quick configuration and function expansion, with high automation and ease of operation, making it suitable for materials science research, industrial product development, and quality control.
Application
Measurement of friction force and friction coefficient of metals, ceramics, polymers, and composite materials.
Wear performance evaluation of coatings, platings, and thin films.
Friction and wear testing under high temperature, low temperature, and electrochemical corrosion conditions.
Friction performance research for pipes, fittings, and complex components.
Material development, quality control, and tribology research in industrial production and laboratories.
Standards
GB/T 3960-2016 Plastics – Determination of Sliding Wear Properties
ASTM G99 Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus
ASTM G133 Standard Test Method for Linearly Reciprocating Pin-on-Flat Sliding Wear
DIN 50324 Friction and Wear Test Standard
ISO 20502 Coating Scratch Test
ASTM D7027 / D1624 / D7187 Coating Scratch and Wear Testing Standards
Parameters
| Parameter | Specification |
|---|---|
| Reciprocating Friction | Load: 30–1000 g (weight loading), 10–300 N (automatic); accuracy 0.2% F.S.; frequency 0.1–45 Hz; stroke 0.5–20 mm |
| Rotational Friction | Load: 30–1000 g (weight loading), 10–300 N (automatic); accuracy 0.2% F.S.; speed 5–5000 rpm; friction diameter φ3–φ40 mm |
| Ring-on-Block Friction | Spindle speed 5–3000 rpm; load 100–1000 g (weight loading), 10–300 N (automatic); accuracy 0.2% F.S |
| Wear Volume Measurement | Load ≤ 40 g; wear scar depth range ±0.5 mm; accuracy 0.02 μm |
| High-Temperature Module (Reciprocating) | Ambient temp: room temperature–300℃; load 0.3–80 N |
| Low-Temperature Module (Reciprocating) | Ambient temp: -50℃–room temperature |
| Electrochemical Corrosion Module (Reciprocating) | Load: 30–1000 g (weight), 10–50 N (automatic); frequency 0.1–5 Hz |
| Pipe Module (Reciprocating) | Load: 50–1000 g (weight); accuracy 0.2% F.S.; stroke 0.5–10 mm |
| Power Supply | 220 V, 50 Hz, 6000 W |
| Workbench Size | 1800 × 750 × 800 mm (user-supplied) |
| Instrument Weight | 150 kg |
Features
Modular Design: Integrates reciprocating, rotational, ring-on-block, high/low-temperature, and electrochemical corrosion testing modules for flexible combination and expansion.
Wide Load and Speed Range: Suitable for micro to medium-high load friction and wear testing.
Environmental Simulation Capability: Supports high/low temperature and corrosive media testing to simulate real-world conditions.
High-Precision Measurement: Wear depth measurement module with 0.02 μm accuracy, providing real-time wear volume and 2D contour plots.
Automated Control: Full computer control with real-time display of friction force, friction coefficient, load, and environmental parameters; data can be stored, printed, and analyzed.
User-Friendly Operation: Quick module installation and intuitive interface, suitable for laboratories and production sites.
Accessories
| Accessory | Specification / Use |
|---|---|
| Reciprocating Friction Module | Automatic or weight loading; adjustable stroke and frequency |
| Rotational Friction Module | Adjustable speed 5–5000 rpm; fits different sample diameters |
| Ring-on-Block Module | Spindle 5–3000 rpm; supports ring-on-block testing |
| High-Temperature Module | Temp room–300℃; for high-temperature reciprocating friction tests |
| Low-Temperature Module | Temp -50℃–room temp; for low-temperature reciprocating friction tests |
| Electrochemical Corrosion Module | Tests reciprocating friction in corrosive media |
| Wear Measurement Module | Accuracy 0.02 μm; measures wear depth and volume |
| Data Acquisition & Analysis Software | Real-time collection of friction force, coefficient, wear volume, and environmental parameters |
| Sample Fixtures | Adapt to various sample shapes/sizes for stable measurement |
| Power Cable | Input 220 V, 50 Hz |
| Workbench Safety Protection | Prevents interference and ensures operator safety |
Test Principle
The instrument conducts multiple friction tests using different modules:
Reciprocating & Rotational Friction: Precision force sensors and control systems measure friction force and coefficient while recording wear volume and displacement curves.
Ring-on-Block Friction: Simulates point, line, and surface contact states to measure friction force and wear.
High/Low-Temperature Modules: Evaluate friction performance under controlled environmental conditions.
Electrochemical Corrosion Module: Tests friction under corrosive media to assess wear-corrosion resistance.
Wear Volume Measurement: High-precision probe scans wear scar width and depth, calculating wear volume automatically and displaying 2D contour plots.
Operation Instructions
Confirm power supply and module installation; check sensors, fixtures, and sample fixation.
Set test mode, load, stroke, frequency, and environmental conditions (temperature/media).
Do not touch moving samples or probes during testing; ensure safety protection is in place.
Save data after testing and generate reports of friction coefficient and wear volume via software.
Regularly inspect wear measurement modules and sensors; replace if worn to maintain accuracy.
Experimental Flow
Sample Preparation & Installation: Secure sample in the corresponding module fixture.
Parameter Setting: Select friction mode, loading method, test force, stroke, frequency, and environmental conditions.
Start Test: Launch program; instrument automatically records friction force, coefficient, and wear volume.
Real-Time Monitoring: Observe friction force curves and wear volume; pause if necessary.
Data Saving & Analysis: Save data after testing, generate reports and 2D contour plots.
Sample Replacement & Cleaning: Remove sample, clean instrument and fixtures, and prepare for the next test.
FAQ
1.What is this product?
A multi-functional tester for comprehensive evaluation of material surface friction and wear performance.
2.What is this product used for?
To measure friction force, friction coefficient, wear volume, and wear scar morphology under various conditions.
3.Why is this product important?
Enables precise and versatile evaluation of materials and coatings for industrial applications and scientific research.
4.What industries is this product suitable for?
Materials research, industrial R&D, quality control, tribology labs, aerospace, automotive, and manufacturing.
5.What types of this product are available?
Modular system with options for reciprocating, rotational, ring-on-block, high/low-temperature, and electrochemical corrosion testing.
