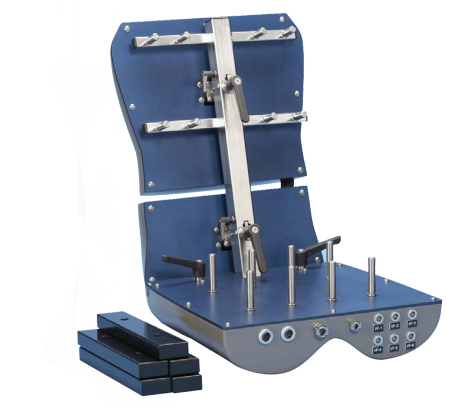

Seat Thermal Manikin
The Seat Thermal Manikin is designed to evaluate the thermal comfort and moisture management performance of seats used in passenger cars, trucks, office chairs, and aircraft seating. Developed based on the SAE J826 HPM-II human body model, it is fully compatible with existing automotive H-point positioning methods.
You can accurately measure heat and moisture exchange for passive seats, and for heated or ventilated seats the system evaluates real energy transfer instead of surface temperature only, while considering realistic sweat rates. This ensures reliable and repeatable assessment of seat thermal performance under realistic conditions.
Application
You can use the Seat Thermal Manikin for the following applications and test objects:
Thermal comfort and moisture management testing of automotive seats
Thermal performance evaluation of truck seats
Long-term comfort and heat dissipation testing of office chairs
Thermal comfort and cooling/ventilation performance assessment of aircraft seats
Performance evaluation of heated seats
Thermal conductivity verification of seat materials and cushions
Automotive seat design validation and ergonomics research
Passenger thermal comfort optimization and HVAC system evaluation
Standards
The system is applicable to, or designed in reference to, the following standards:
(1) GB/T 18830-2009 Automotive seat and backrest thermal comfort test method
(2) SAE J826 Human Engineering – H-Point Machine (HPM-II)
(3) ISO 14505-2 Evaluation of thermal environments in vehicles – Thermal manikin method
(4) ISO 12894 Anthropometry and application of human body models
(5) ISO 9920 Ergonomics of the thermal environment – Clothing and seat thermal comfort
(6) ASTM F1291 Standard test method for measuring thermal insulation using a thermal manikin
(7) ASTM F2370 Measurement of heat and moisture transfer of heated/ventilated seats
(8) EN 12127 Measurement of heat flow and pressure distribution for seating systems
Parameters
| Category | Parameter | Specification |
|---|---|---|
| Human body model | Manikin type | 50th percentile adult male back + buttock / thigh, based on SAE J826 HPM-II |
| Thermal zones | Number of zones | 8 independently controlled zones with temperature protection |
| Shell material | Housing | Thermally conductive carbon fiber with integrated heaters and sensors |
| Temperature control | Control range | 10–40 °C, accuracy ±0.1 °C |
| Heating capability | Max. power output | 1500 W/m² |
| Sweat simulation | Sweat rate range | 0–1000 ml/h/m² |
| Heat dissipation | Continuous dissipation | 350 W/m² |
| Power accuracy | Heating accuracy | ±1 % |
| Humidity measurement | RH accuracy | ±3 % RH |
| Power supply | Electrical requirement | 208–265 VAC, 50/60 Hz, single phase |
| Cooling requirement | Cooling water | Chiller required, 500 W at 30 °C, 2 L/min, 15 PSI |
| Weight | System weight | Approx. 120 kg (excluding cooling system) |
| Dimensions | Overall size | 1189 × 575 × 856 mm |
Features
Eight independently controlled thermal zones for precise heat distribution
Integrated temperature protection zones to ensure safe operation
Active cooling technology simulates human blood flow and prevents overheating during heated seat tests
Dynamic Heat Sensors (DHS) measure instantaneous energy transfer between skin and seat
Computer-controlled liquid delivery system for zone-specific sweat distribution
Highly stable resistance heating ensures uniform heat flux
Software-controlled operation with real-time monitoring and automatic test execution
Predefined thermal difference test modes for efficient testing
Suitable for passive, heated, and ventilated seat evaluation
High-accuracy heat and humidity measurement for R&D and quality control
Accessories
(1) Thermal manikin body with integrated heaters and sensors
(2) Electronic control unit with interfaces
(3) Ambient temperature sensors
(4) Humidity sensor
(5) Power and control cables
(6) Control and data analysis software
(7) Cooling water system (temperature-controlled chiller)
(8) Spare heating wires and sensors
Test Procedures
Position the seat thermal manikin on the test seat using the SAE J826 H-point reference.
Connect power supply, cooling system, sensors, and control electronics.
Configure temperature, sweat rate, and test mode through the software.
Start the test and allow the system to reach thermal equilibrium.
Measure heat flux, temperature, and humidity data continuously.
Record and analyze energy transfer and thermal comfort parameters.
Maintenance Information
Regularly inspect heating elements and sensors for proper operation.
Ensure cooling water flow and pressure meet specified requirements before testing.
Clean sweat distribution channels to prevent blockage.
Periodically calibrate temperature, heat flux, and humidity sensors.
Keep software and control firmware updated for stable operation.
FAQ
1.What is this product?
It is a seat thermal manikin used to measure heat and moisture transfer between a seat and the human body.
2.What is this product used for?
You use it to evaluate thermal comfort, heat dissipation, and moisture management of automotive, office, and aircraft seats.
3.How does this product work?
It simulates human heat output and sweating using controlled thermal zones and directly measures energy exchange with the seat.
4.Why is this product important?
It provides objective, repeatable, and energy-based measurements that cannot be obtained from surface temperature alone.
5.Which industries is this product suitable for?
Automotive manufacturers, seat suppliers, aircraft seating manufacturers, research institutes, and HVAC development laboratories.
