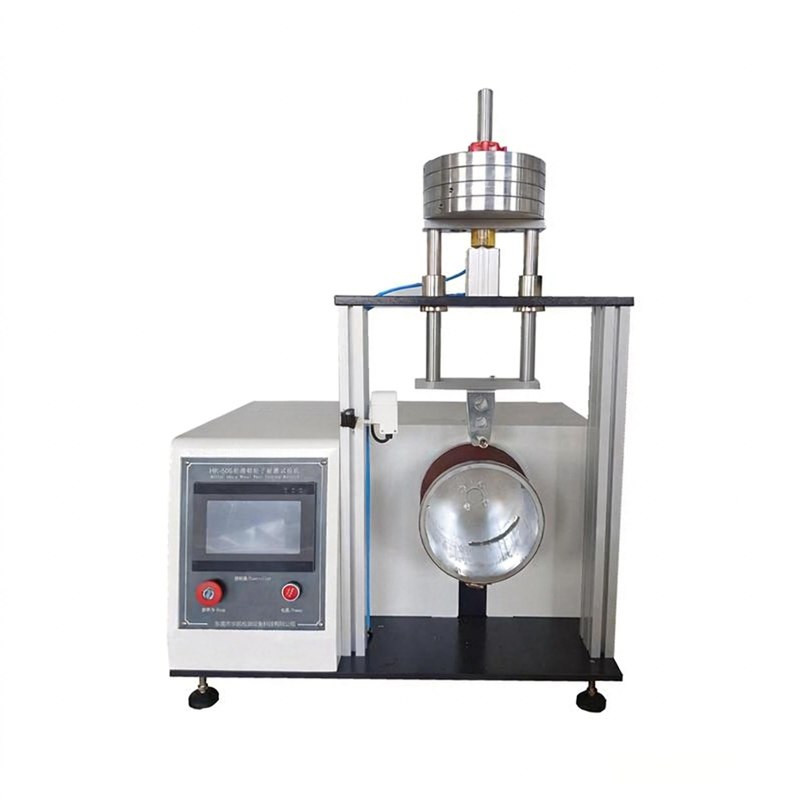

Roller Skate Wheel Abrasion Tester
The Roller Skate Wheel Abrasion Tester is designed to simulate real-world rolling and friction conditions between wheels and surfaces.By combining a motor-driven metal roller with standard abrasive sandpaper, you can evaluate wheel wear resistance, structural stability, and material durability under controlled load, speed, and angle conditions.
This tester is ideal for product development, quality control, and third-party certification, providing reliable data on wheel material performance and structural integrity.
Application
You can use the Roller Skate Wheel Abrasion Tester for a wide range of wheeled products and industries where small rolling components require wear and durability evaluation, including:
(1) Inline skates and roller skates (single-row or double-row) wheel wear testing
(2) Luggage and travel suitcase wheel durability and lifespan assessment
(3) Baby strollers and pushchair wheel abrasion and reliability testing
(4) Handcarts, shopping carts, and small logistics vehicle wheel wear tests
(5) Scooter and kick scooter wheel durability and service life testing
(6) Material comparison testing of small rubber, polyurethane (PU), and plastic wheels
(7) Wheel material selection and structural optimization during R&D stages
(8) Quality control testing in labs, third-party inspection agencies, and internal enterprise testing
Standards
This tester is designed to comply with the following national and international standards:
(1) GB 20096-2006 — Inline Skates: Safety Requirements and Test Methods
(2) QB/T 2919-2018 — Luggage Rolling Performance Test Methods
(3) GB/T 2316-2008 — Plastics: Drum Abrasion Test Methods
(4) EN 13843:2003 — Roller Sports Equipment: Inline Skates Safety Requirements
(5) EN 14619:2004 — Roller Sports Equipment: Kick Scooters Safety Requirements
(6) ASTM D5963 — Rubber Properties: Rotating Drum Abrasion Test Method
Parameters
| Item | Technical Specification |
|---|---|
| Sandpaper specification | 80# standard abrasive paper |
| Metal roller size | Φ198 × 120 mm |
| Test speed | 0–20 km/h (adjustable) |
| Wheel-to-roller angle | 0° / 5° / 9° (three settings) |
| Wheel center load | 30 kg (customizable) |
| Control system | PLC + touchscreen |
| Test modes | Time / speed / distance / interval configurable |
| Power supply | AC 220V, 50 Hz |
Features
(1) Standard drum and sandpaper structure ensures high repeatability of results
(2) Multi-angle loading closely simulates real rolling conditions
(3) PLC touchscreen control allows intuitive operation and parameter setting
(4) Simultaneously evaluates wheel material wear and structural integrity
(5) Supports multiple test modes: time, speed, distance, and interval combinations
(6) Compact and durable design, with low maintenance cost for long-term operation
(7) Customizable load, speed range, and fixture configuration according to client requirements
Accessories
(1) Main machine: Inline Skate Wheel Abrasion Tester
(2) Metal roller: Φ198 × 120 mm
(3) Standard sandpaper: 80#
(4) Wheel fixture: universal type
(5) PLC touchscreen: industrial grade
(6) Power cable: AC 220V
(7) User manual: Chinese version
Test Procedures
(1) Mount the wheel securely on the loading fixture
(2) Set the wheel center load, roller speed, test duration, wheel angle, and travel distance
(3) Start the motor-driven roller and begin the abrasion test
(4) Monitor wheel surface wear, dimensional changes, and structural stability
(5) Record results automatically through the PLC system
(6) Stop the test after the preset conditions are met
(7) Analyze wheel material performance, wear patterns, and potential failure modes
Maintenance Information
(1) Regularly inspect the metal roller and sandpaper for wear or debris
(2) Verify wheel fixture and loading assembly are secure before each test
(3) Lubricate motor and moving parts according to maintenance schedule
(4) Check PLC touchscreen and control functions for proper operation
(5) Keep the machine clean and operate in a stable, dry laboratory environment
FAQ
1. What is this product?
It is a wheel abrasion tester designed to evaluate the wear resistance and structural reliability of inline skate wheels and small rolling components.
2. What is this product used for?
You use it to simulate friction and rolling conditions under load, speed, and angle settings to assess wheel durability and lifespan.
3. What is the working principle of this product?
The wheel is mounted on a loading fixture and pressed against a sandpaper-coated metal roller. As the roller rotates, the wheel undergoes repeated abrasion and friction, simulating real-world use.
4. Why is this product important?
It provides objective data on wheel material performance, structural integrity, and wear resistance, helping improve product quality and ensure compliance with safety standards.
5. What industries is this product suitable for?
It is suitable for manufacturers of inline skates, scooters, strollers, luggage wheels, and other small wheeled products, as well as quality control labs and testing agencies.
6. What types of this product are available?
The tester can be customized with different loading capacities, roller sizes, wheel fixture types, and speed ranges to accommodate a variety of wheel materials and product sizes.
