Heat plate / oven

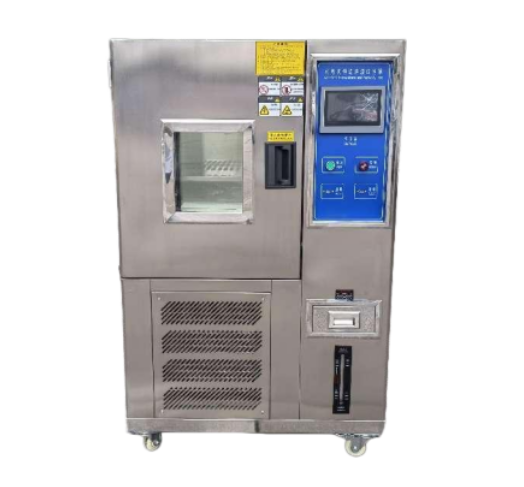

The T-201 Climatic Chamber is designed to simulate temperature and humidity variations for evaluating the dimensional stability and performance of materials. It provides precise control over high/low temperature and humidity cycling.
The chamber is widely used in electronics, electrical appliances, communications, instruments, vehicles, plastics, metals, food, chemicals, building materials, medical devices, and aerospace components. Its advanced control system ensures uniform and stable internal conditions for accurate and repeatable testing.
Testing Capabilities
Temperature: 10–90 °C (working range -40 °C to +150 °C)
Relative Humidity: 30–90 % RH (working range 20–98 % RH)
Standard: Dimensional stability (EN 438-2.17)
Application
(1) Evaluating material performance under variable temperature and humidity
(2) Thermal and moisture aging tests
(3) Product reliability testing for electronics, chemicals, medical, and aerospace industries
(4) Quality control for plastics, metals, building materials, and composites
Standards
(1) EN 438-2.17 — Dimensional stability of high-pressure decorative laminates under climatic conditions
(2) GB/T 5170.5-2008 — General test methods for environmental testing equipment
(3) GB/T 10586-2006 — Environmental testing of electronic products
(4) GB/T 2423.1/2/3/4 — Environmental testing for mechanical and climatic tests (A/B/C/D tests)
Key Features
(1) High-precision control: BTHC balanced temperature and humidity control system with PID and DCC/DEC smart control, ensuring uniform and stable internal conditions
(2) Large touchscreen interface: 7-inch color LCD human-machine interface with Chinese/English menu; remote computer control via RS232
(3) Robust cooling system: Two-stage refrigeration with low-noise rotary compressors, imported components, and eco-friendly refrigerants (R404a/R23)
(4) High uniformity and stability: Temperature fluctuation ±0.5 °C, temperature uniformity ≤ ±1.5 °C; humidity fluctuation ±1–2 %, humidity uniformity ±1–3 %
(5) Safety features: Over-temperature protection, compressor overcurrent/overheat protection, water shortage dry-burn protection, door open alarm, short-circuit and leakage protection
(6) Observation and testing: Large observation window with 4 layers of tempered glass and 50 mm test port
(7) Internal/External construction: SUS#304 mirror-finished stainless steel for chamber and outer casing; C-type steel frame with 5000 kg static load capacity
(8) Heating and humidification: Ni-Cr alloy heater controlled via SSR pulse width modulation; external removable boiler humidifier with stainless steel sheath heater, water-level monitoring, anti-dry burn, sediment collection, 2.5 kW power
(9) Programmable operation: Up to 10 programs, 120 segments per program, unlimited cycles; temperature resolution 0.1 °C, humidity resolution 0.1 % RH, time resolution 1 min
(10) Data recording: Battery-protected RAM stores up to 180 days of sampling data at 60 s intervals
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | T-201 / T200-80L |
| Internal Dimensions | 400 × 400 × 500 mm |
| External Dimensions | 900 × 905 × 1420 mm |
| Lab Volume | 80 L |
| Temperature Range | -40 °C to +150 °C |
| Humidity Range | 20–98 % RH |
| Temperature Fluctuation | ±0.5 °C |
| Temperature Uniformity | ≤ ±1.5 °C |
| Humidity Fluctuation | ±1–2 % |
| Humidity Uniformity | ±1–3 % |
| Heating Rate | 3 °C/min (nonlinear) |
| Cooling Rate | 1 °C/min (nonlinear) |
| Power Supply | 220 V, 6 kW |
| Control | BTHC PID + DCC/DEC smart control |
| Observation Window | 4-layer tempered glass |
| Test Port | 50 mm diameter |
| Internal Material | SUS#304 stainless steel |
| External Material | SUS#304 stainless steel |
| Frame | C-type steel, 5000 kg load capacity |
| Safety Features | Over-temp, overcurrent, dry-burn, leakage, compressor protection, alarms |
| Display | 7-inch color touchscreen, Chinese/English |
| Programming | Up to 10 programs, 120 segments per program, unlimited cycles |
Product Advantages
Precise control of temperature and humidity with advanced BTHC PID + DCC/DEC system
High uniformity and stability for reliable and repeatable testing
Robust construction with SUS#304 stainless steel and C-type steel frame
Large observation window and test port for convenient sample monitoring
Safety protections including over-temperature, dry-burn, overcurrent, and leakage alarms
Programmable operation and long-term data recording for research and QC purposes
Suitable for electronics, chemicals, medical devices, aerospace components, and material testing
Usage & Restrictions
(1) Suitable for temperature and humidity tests on various materials
(2) Not suitable for flammable, explosive, volatile, corrosive, radioactive, toxic, or biohazardous samples
FAQ
(1) What is the T-201 Climatic Chamber?
It is a laboratory instrument for simulating temperature and humidity variations to test material dimensional stability and performance.
(2) What is this equipment used for?
It is used for temperature and humidity aging tests, thermal and moisture cycling, and product reliability evaluation.
(3) What types are available?
T-201 standard chamber with 80 L lab volume; optional sizes with larger or smaller volumes are available.
(4) What industry problems can it solve?
It evaluates material response to temperature and humidity changes, detects dimensional instability, and ensures product reliability and quality control.
(5) How is it operated?
Load samples, set temperature and humidity via touchscreen or remote, program cycles, and start the test; the system maintains conditions automatically and records data.
