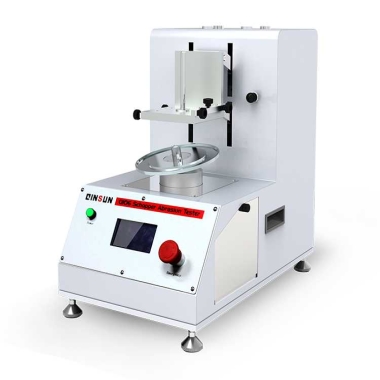

Fabric Abrasion Tester
Application
The Fabric Abrasion Tester evaluates the wear resistance and durability of fabrics by simulating tangential friction on the sample surface. It is widely used in textiles, automotive interiors, and materials research to determine appearance changes, surface wear, and overall fabric performance. The instrument is suitable for woven fabrics, knitted fabrics, coated fabrics, and nonwoven fabrics. It helps in quality control, product development, and performance verification for textiles used in automotive, furniture, and apparel applications.
Standards
DIN 53863, Part 2: Determination of abrasion resistance of textiles
GME Standard 60345: Fabric abrasion testing for automotive applications
GMW Standard 3283: Abrasion resistance of automotive interior materials
VW/Audi Zentral-Norm PV 3908: Automotive textile testing
Technical Parameters
| Parameter | Specification |
|---|---|
| Number of Revolutions | 75 r/min |
| Taper Angle | 166° |
| Declination of Mounting Head | 7° |
| Specimen Size | 100 cm² |
| Test Area | 50 cm² |
| Arc Height Measuring Device | 0–10 mm adjustable |
| Loads on Specimen | 0.5–25 N adjustable |
| Loading Weights | 50 g, 100 g, 250 g, 500 g, 1000 g, 1500 g |
| External Dimensions (L×W×H) | 325 × 565 × 560 mm |
| Weight | 35 kg |
Advantages
Accurate and Repeatable Testing: Provides consistent results by maintaining line contact and controlled tangential abrasion.
Wide Load Range: Adjustable specimen load from 0.5 N to 25 N accommodates soft and heavy fabrics.
User-Friendly Design: Equipped with a clamping spanner, adjustable arc height measuring device, and intuitive mounting support.
Versatile Applications: Suitable for textiles in automotive, furniture, apparel, and industrial fabrics.
Compact and Durable: Firm structure ensures stable operation and long-term reliability.
FAQ
1. What is the Fabric Abrasion Tester?
A laboratory instrument designed to evaluate the wear resistance and durability of fabrics under controlled tangential friction.
2. What materials can it test?
Woven, knitted, nonwoven, and coated fabrics, including textiles used in automotive interiors, apparel, and furniture.
3. Why is it important?
Wear resistance is a key indicator of fabric performance, influencing product longevity, appearance, and quality perception.
4. How does it work?
The fabric is clamped onto a rotating test head and subjected to a line-contact abrasion using a standardized friction block, simulating real-world wear conditions.
5. What standards does it comply with?
DIN 53863 Part 2, GME 60345, GMW 3283, and VW/Audi Zentral-Norm PV 3908.
6. Can the testing conditions be adjusted?
Yes, loads, arc height, and friction area can be adjusted according to different material requirements.
7. Who typically uses this tester?
Textile manufacturers, automotive interior suppliers, furniture fabric producers, and independent testing laboratories for quality control and R&D.
